Description

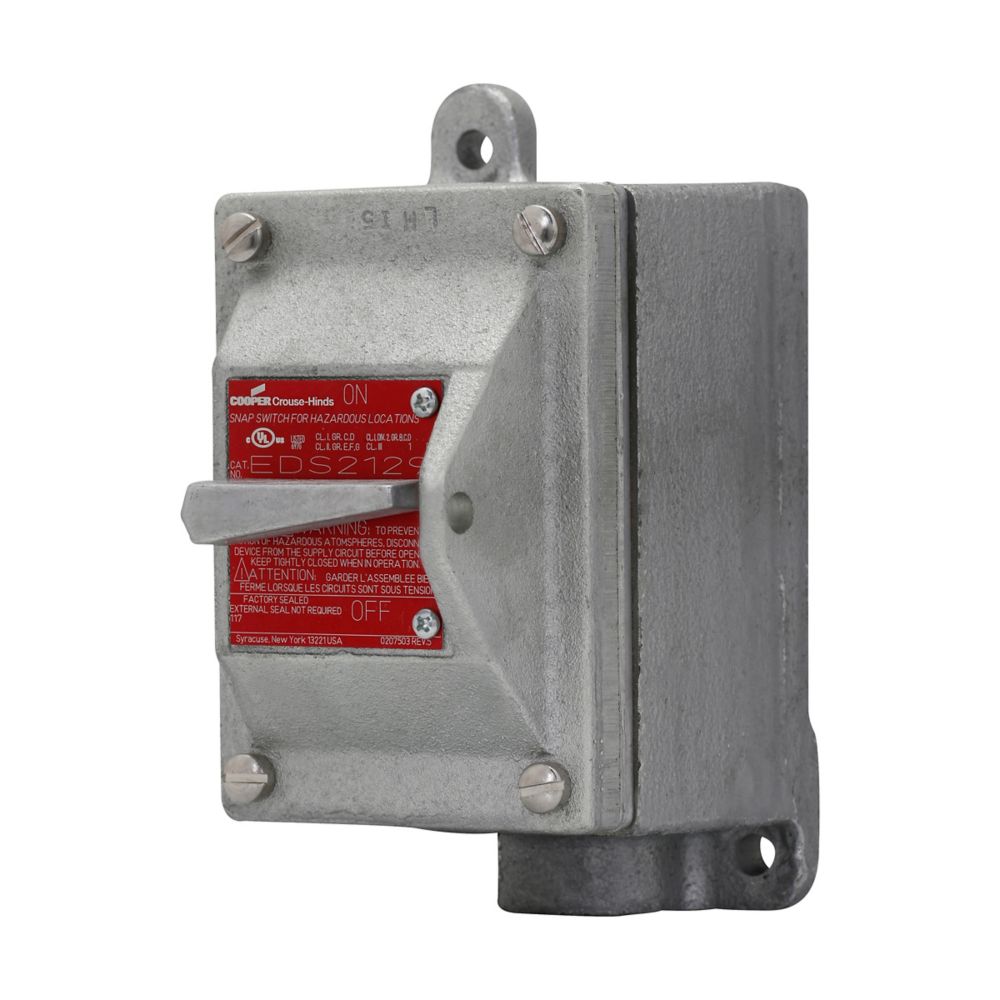

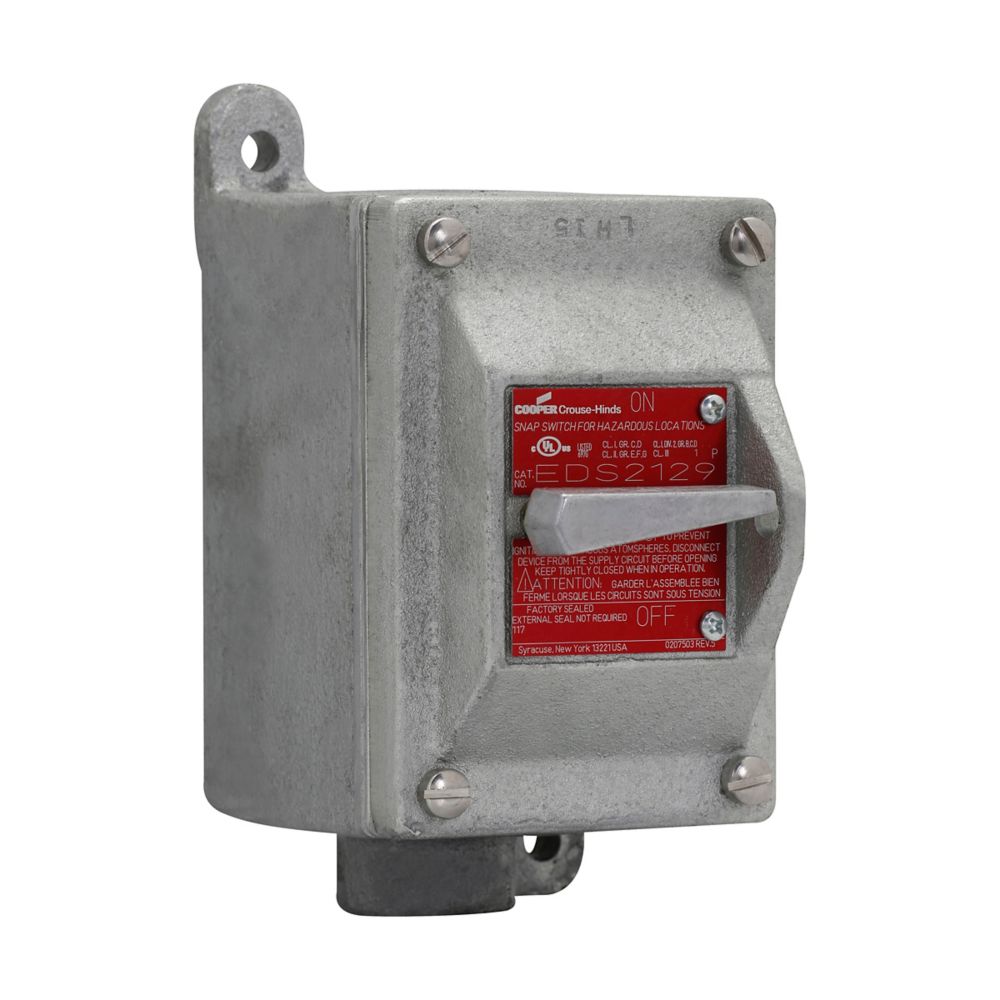

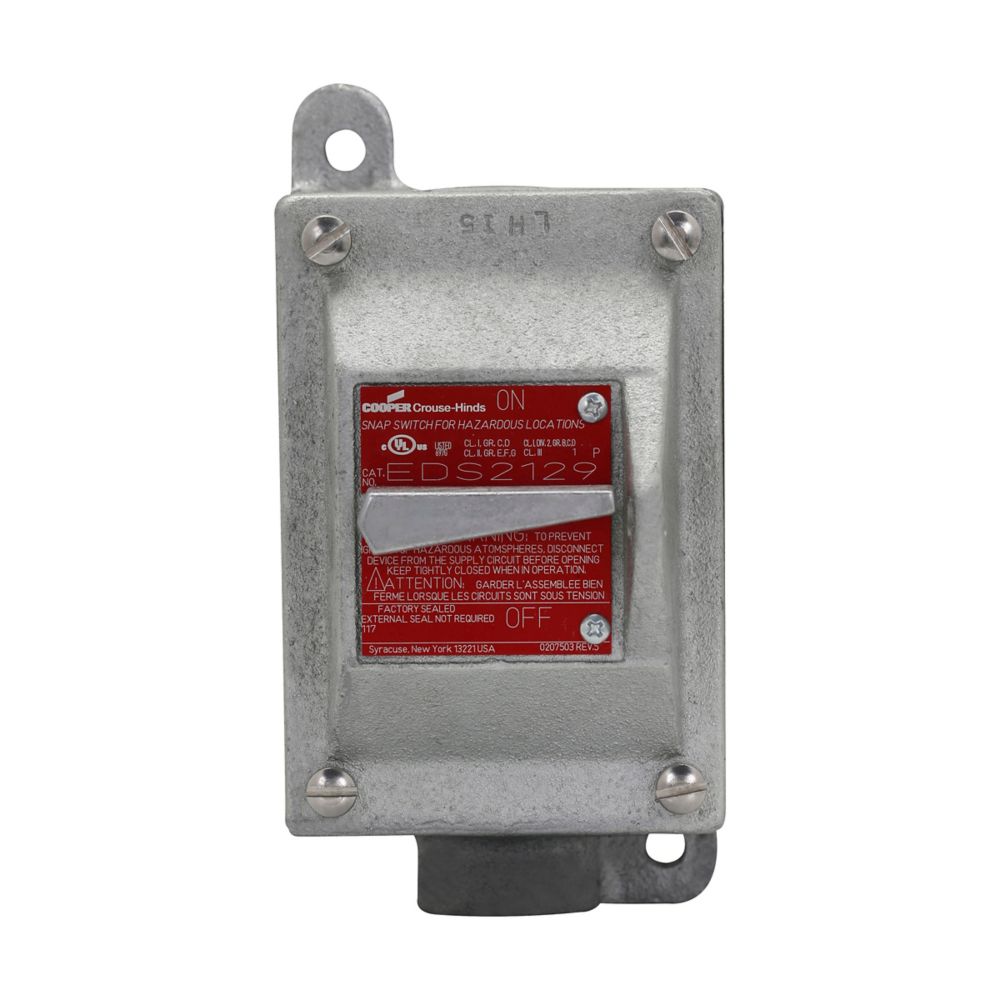

EDS218 - Eaton Crouse-Hinds Series - 3/4" EDS Snap Switch Control Station
Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With one 3/4" hub, Feraloy iron alloy, 1, Single-gang, Two-pole, 120-277V, Factory sealed, Dead end, Two-pole, 3/4", 120-277 Vac
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series EDS snap switch control station |
| Catalog Number | EDS218 |
| UPC | 782274763545 |
| Product Length/Depth | 5.06 in |
| Product Height | 5.875 in |
| Product Width | 3.5 in |
| Product Weight | 8.2 lb |
| Product Type | Snap switch control station |
PRODUCT SPECIFICATIONS
| Enclosure type | With switch |
| Trade size | 3/4" |
| Number of poles | Two-pole |
| Switch function | Two-pole |
| Number of gangs | Single-gang |
| Style | Dead end |
| Voltage rating | 120-277 Vac |
| Amperage Rating | 20A |
| Hub style | With one 3/4" hub |
| Number of devices | 1 |
| Primary voltage range | 120-277V |
| Material | Feraloy iron alloy |
| Special features | Factory sealed |
