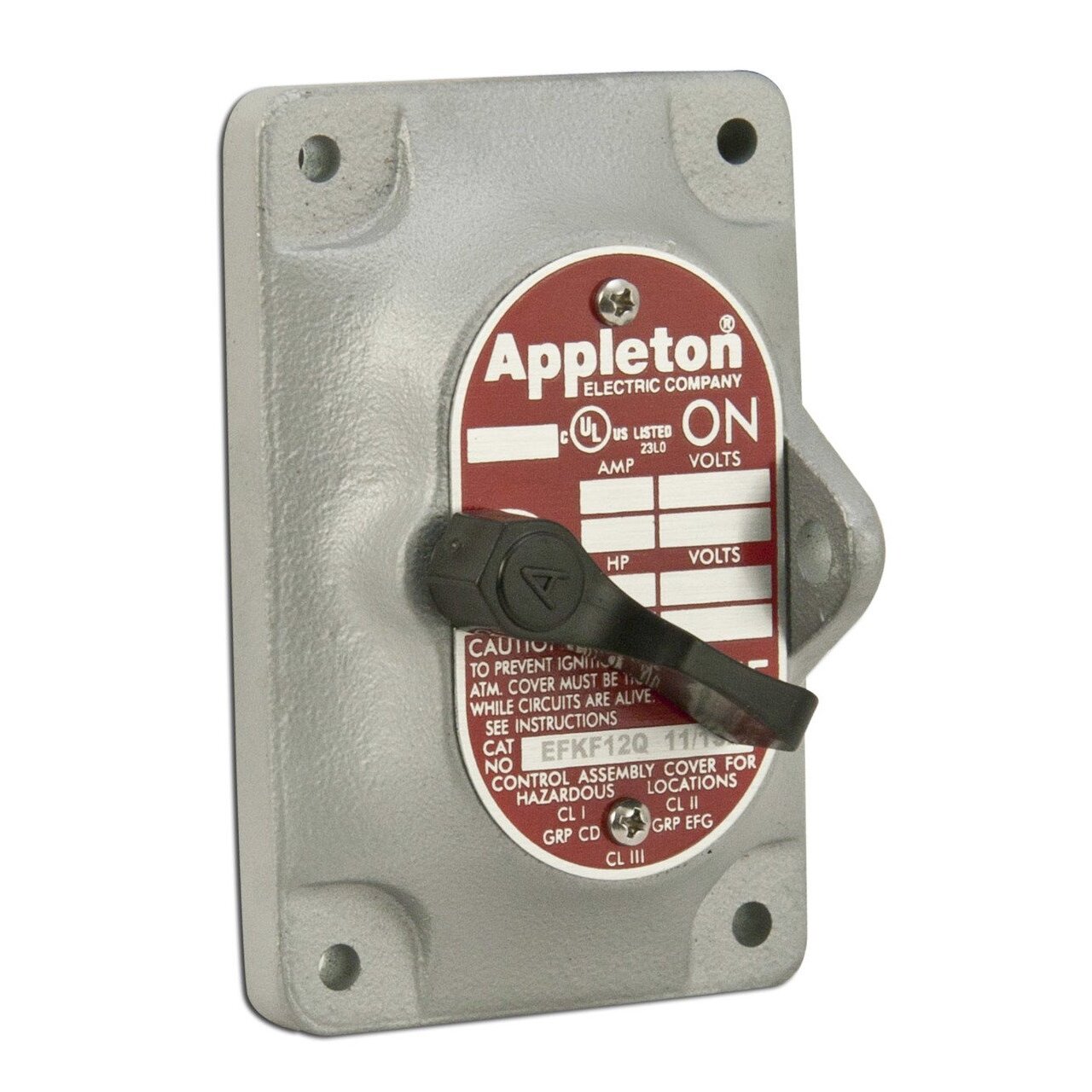

EFKF12Q - Appleton - 1-Gang EFS Switch Cover Only
This EFS front-operated switch cover is a 1-pole, 1-gang unit designed for use with EFD-type outlet boxes. It is a non-factory sealed cover and comes with device mounting screws for secure installation. Ideal for controlling circuits in industrial or hazardous locations.
GENERAL SPECIFICATIONS
- NEC Certifications and Compliances
- Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 7CD, 9EFG
- Standard Materials
- Malleable iron body and covers. Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)
- Standard Finishes
- Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- Nameplate Mounting Bracket
- Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
