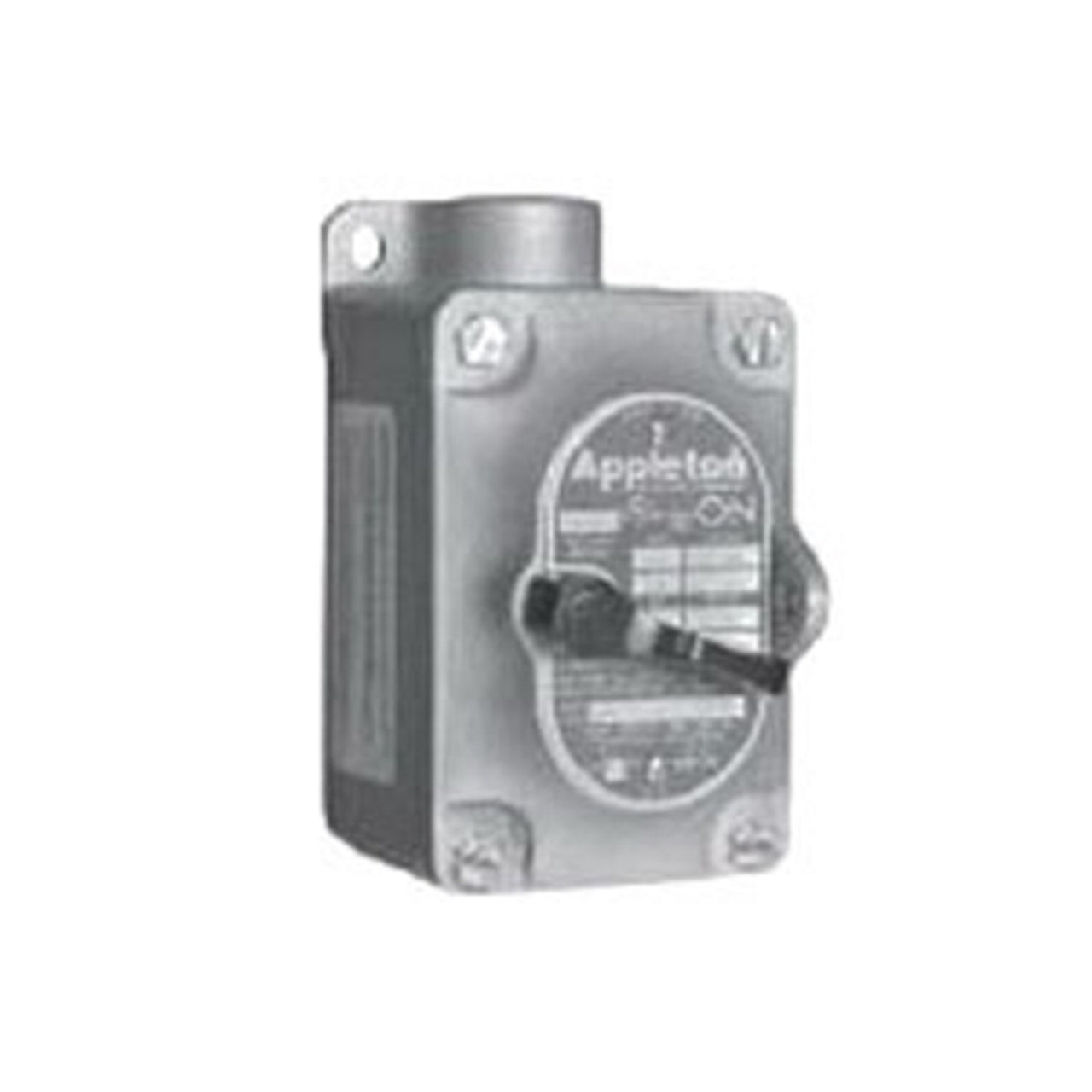

EFS175F1 - Appleton - 30A 1-Pole Dead End Non-Sealed Explosion-Proof Tumbler Switch
The EFS non-sealed front-operated tumbler switch is built for explosion-proof and dust-ignitionproof performance in hazardous environments. It features a durable malleable iron body and cover, with a dead-end design, rated at 20 amps and 120–277 VAC. This 1-pole switch includes a 3/4" hub for secure conduit connection.
GENERAL SPECIFICATIONS
- NEC Certifications and Compliances
- Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 7CD, 9EFG
- Standard Materials
- Malleable iron body and covers. Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)
- Standard Finishes
- Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat
- Option Materials
- 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details
- Nameplate Mounting Bracket
- Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
