Description

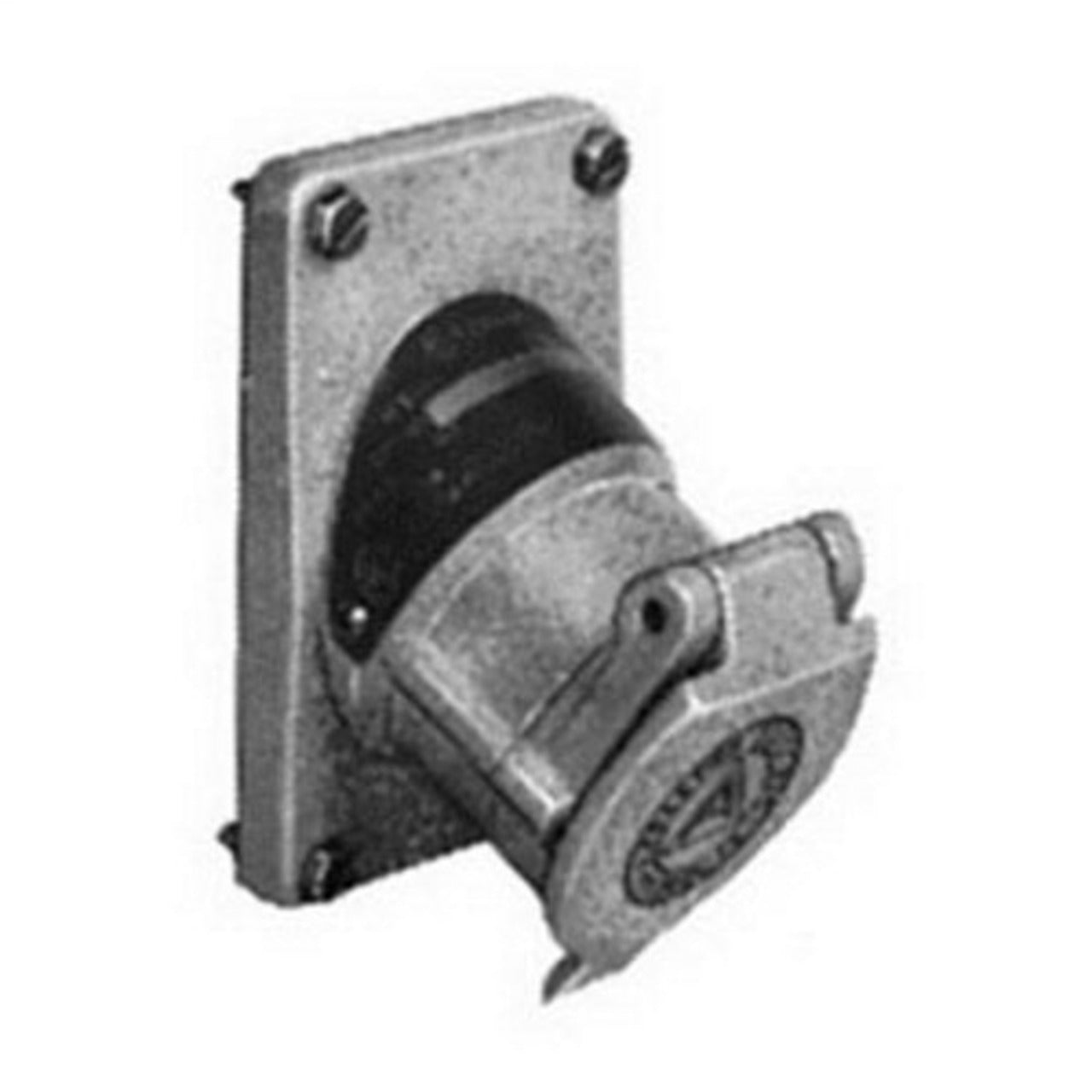

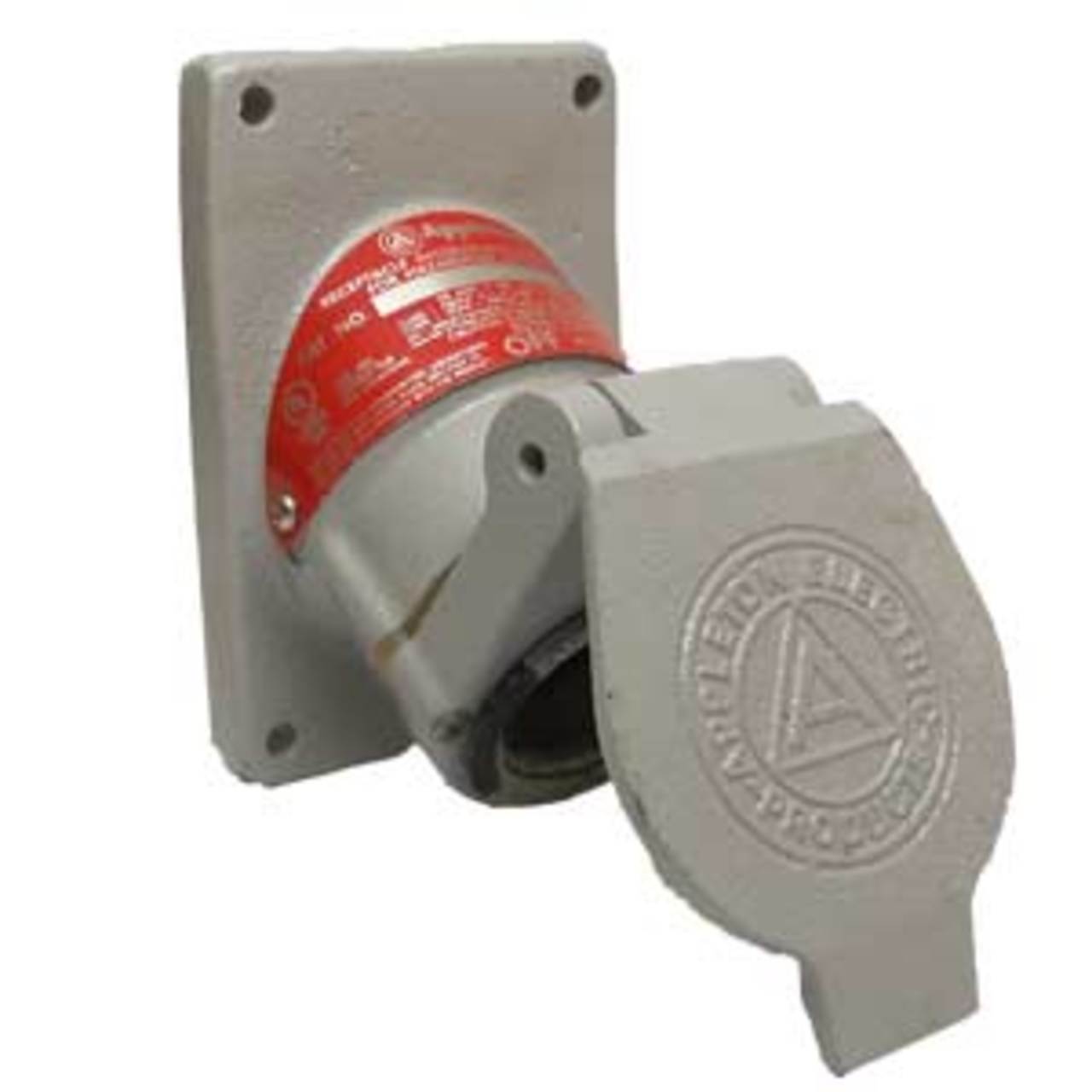

EFSR2023 - Appleton - Replacement Receptacle for EFS Assembly
The U-Line 1-Gang Replacement Receptacle is a heavy-duty, explosion-proof solution rated at 20A and 125V AC, with a 3-pole, 2-wire configuration. Constructed from copper-free aluminum with an epoxy powder coat finish, it meets multiple hazardous location standards (Class I, II, III) and NEMA 3/3R ratings. Designed for use with ECP mating plugs, it ensures safe operation via a twist-to-activate interlock system, preventing standard plug usage in hazardous environments.
GENERAL SPECIFICATIONS
- Hazardous Area Classification
- Class I, Division 1 Groups B, C, D; Class I, Division 2 Groups B, C, D; Class II, Division 1 and 2 Groups F, G; Class III; NEMA 3, 3R
- Amperage
- 20
- Voltage
- 125 Vac or 250 Vac
- Number of Poles
- 3
- Number of Wires
- 2
- Horsepower Ratings
- 1 or 2
- Plug Cable Diameter
- .538 – .639
- Mounting Box Entries
- Dead-End or Feed-Thru
- Malleable Iron Material and Finish
- U-Line™ M series mounting boxes and receptacle covers are malleable iron with a triple coat finish of (1) zinc electroplate (2) chromate and (3) epoxy powder coat
- Aluminum Material and Finish
- Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat
- Insulator Block Material
- Glass-filled reinforced polyester
