Description
| Main | |
|---|---|
| Range | 125 A Frame EDB-EGB-EJB |
| Product Type | Miniature circuit-breaker |
| Device Short Name | EGB |
| Module Type | E-Frame |
| Trip Unit Rating | 1800 A |
| Complementary | |
| Rated Current | 40 A |
| Maximum Operating Voltage | 277 V AC |
| AWG Gauge | 12 AWG...2/0 AWG aluminium14 AWG...2/0 AWG copper |
| Breaking Capacity | 35 kA 277 V AC35 kA 240 V AC65 kA 120 V AC35 kA 120/240 V AC |
| Circuit Breaker Application | HID ratedHACR rated |
| Electrical Connection | Lugs aluminium |
| Holding Current | 630 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Number of Spaces Required | 1 |
| Product Destination | NF panelboard |
| Protect Type | OverloadShort-circuit |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | G |
| Tightening Torque | 34.5 lbf.in (3.9 N.m) 0.004…0.009 in² (2.5…6 mm²) (14 AWG...10 AWG)49.6 lbf.in (5.6 N.m) 0.02…0.1 in² (10…70 mm²) (8 AWG...2/0 AWG) |
| Height | 5.66 in (143.76 mm) |
| Width | 0.98 in (24.89 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 2 lb(US) (0.9 kg) |
| Environment | |
| Product Certifications | cULus |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200936 |
| Discount Schedule | 0DE2 |
| GTIN | 785901311102 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.8 in (4.6 cm) |
| Package 1 Width | 6.1 in (15.5 cm) |
| Package 1 Length | 10.4 in (26.4 cm) |
| Package weight(Lbs) | 20.8 oz (589.7 g) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

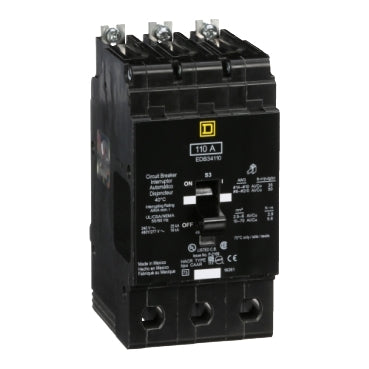

EGB14040
EGB14040
