Description

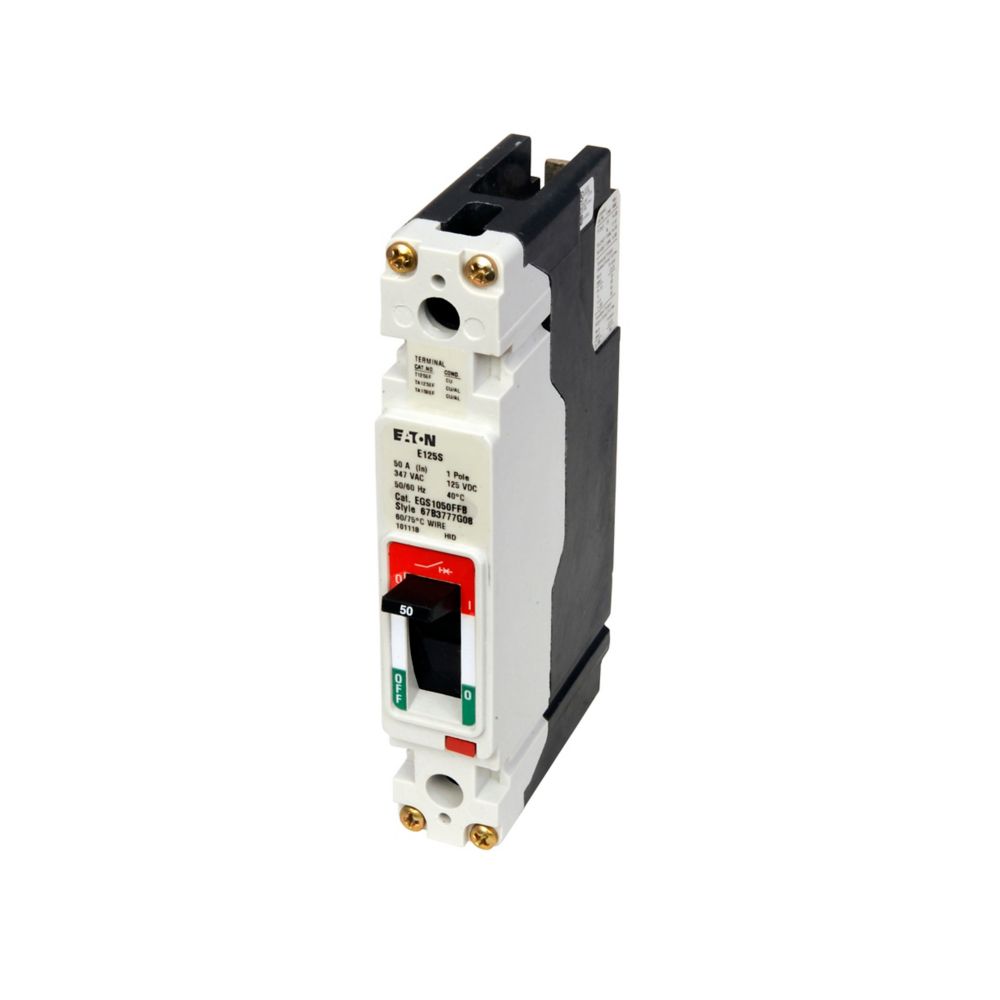

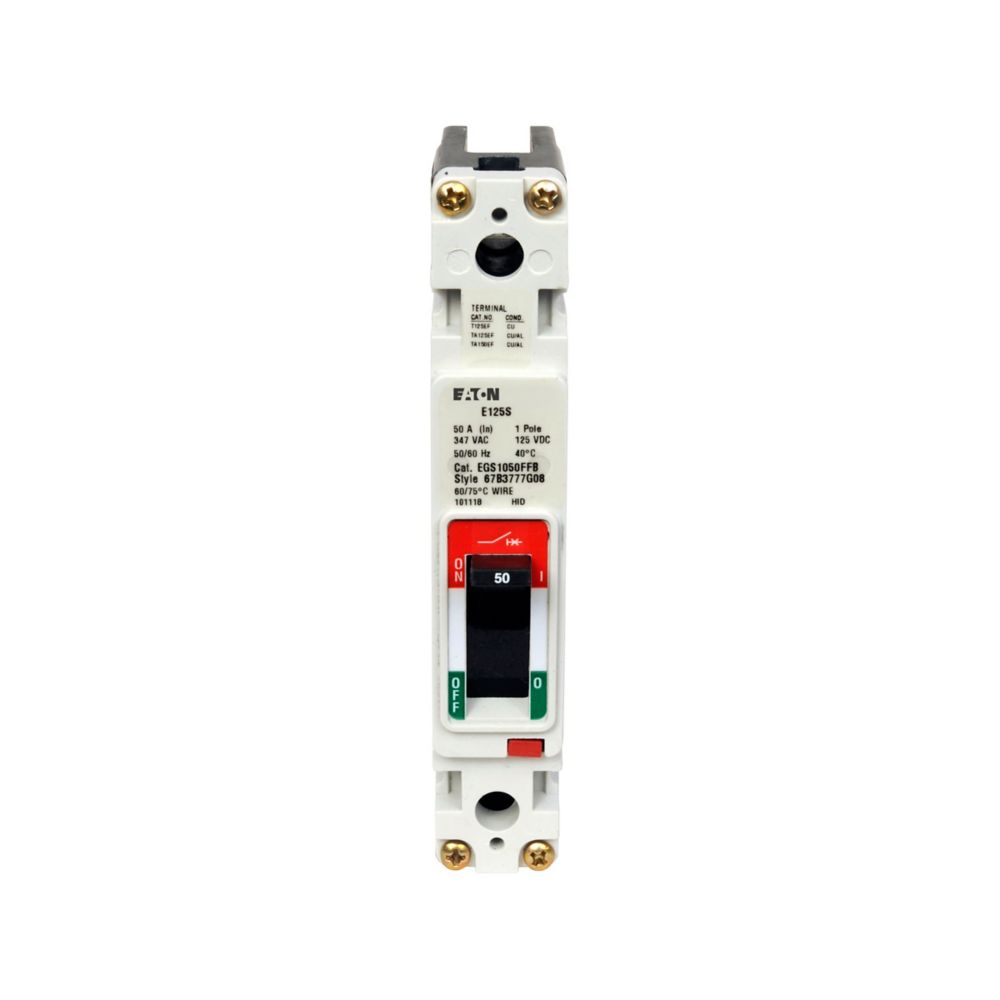

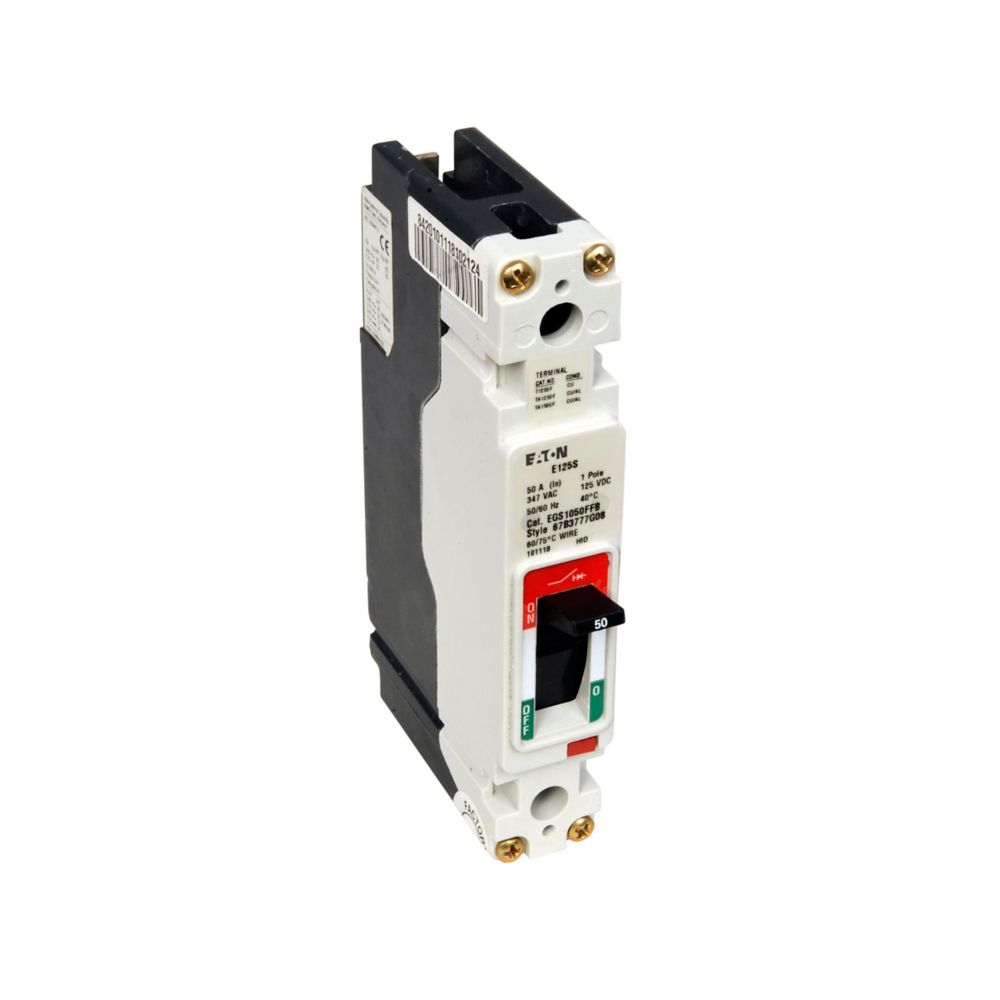

EGS1050FFB - Eaton Cutler-Hammer - 50 Amp 1 Pole 240 Volt Bolt-On Molded Case Circuit Breakers
Eaton Series G molded case circuit breaker, EG-frame, EG, Complete breaker, Fixed thermal, fixed magnetic trip, Single-pole, 50A, 600Y/347 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 22 kAIC at 600Y/347 Vac, Bolt-on, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name | Eaton Series G complete molded case circuit breaker |
| Catalog Number | EGS1050FFB |
| UPC | 786685382036 |
| Product Length/Depth | 2.99 in |
| Product Height | 5.5 in |
| Product Width | 1 in |
| Product Weight | 1 lb |
| Compliances | CE Marked |
| Certifications | IEC Rated UL Listed CSA Certified |
| Product Type | Molded case circuit breaker |
PRODUCT SPECIFICATION
| Amperage Rating | 50 A |
| Voltage rating | 600Y/347 Vac |
| Trip Type | T186 |
| Circuit breaker type | EG |
| Circuit breaker frame type | Complete breaker |
| Series | Series G |
| Terminals | Bolt-on |
| Frame | EG |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 85 kAIC at 240 Vac 35 kAIC at 480 Vac 22 kAIC at 600Y/347 Vac |
| Number of poles | Single-pole |
| Type | Complete breaker |
