Description

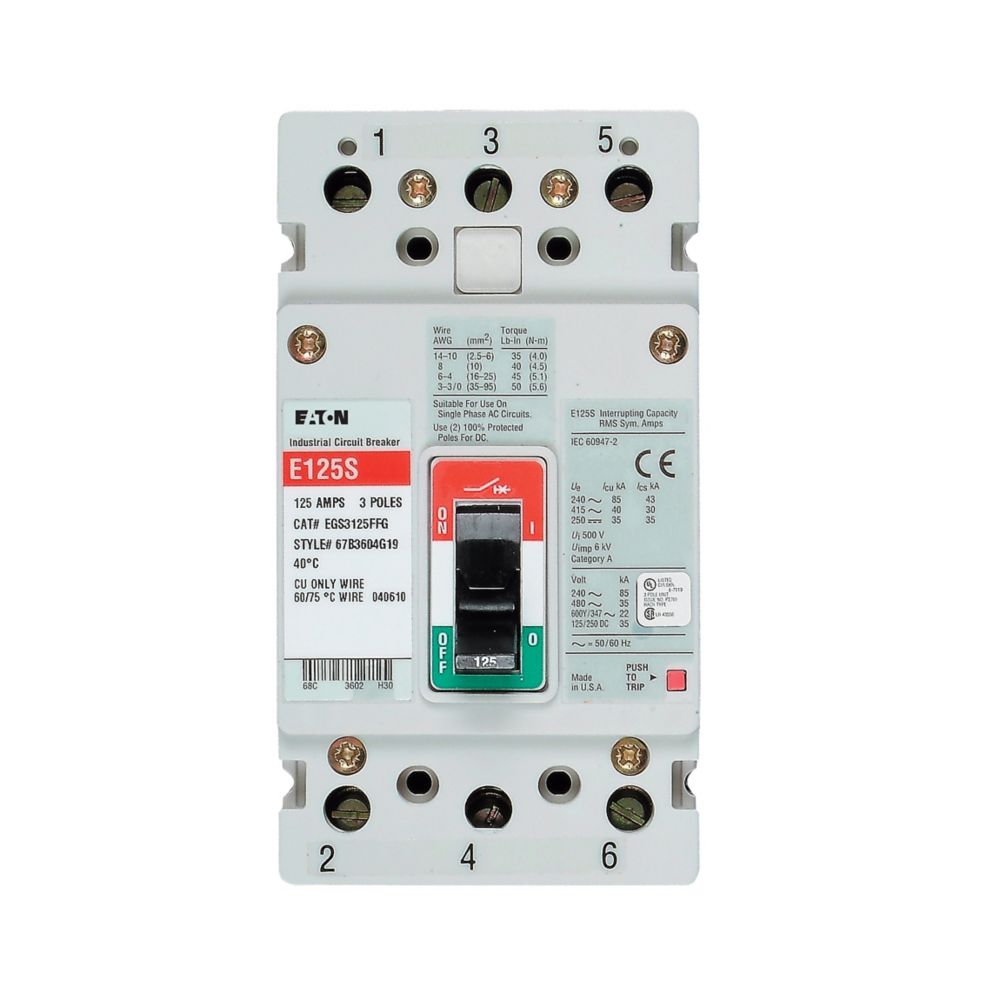

EGS3125FFG - Eaton Cutler-Hammer - 125 Amp 3 Pole 600 Volt Molded Case Circuit Breakers
Eaton Series G molded case circuit breaker, EG-frame, EG, Fixed thermal, fixed magnetic trip, Three-pole, 125A, 600Y/347 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 22 kAIC at 600Y/347 Vac, Line and load, Metric, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name | Eaton Series G complete molded case circuit breaker |
| Catalog Number | EGS3125FFG |
| UPC | 782114877241 |
| Product Length/Depth | 2.99 in |
| Product Height | 5.5 in |
| Product Width | 3 in |
| Product Weight | 3 lb |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed IEC Rated UL 489 |
| Product Type | Molded case circuit breaker |
PRODUCT SPECIFICATION
| Amperage Rating | 125 A |
| Voltage rating | 600Y/347 Vac |
| Trip Type | T186 |
| Circuit breaker type | EG |
| Circuit breaker frame type | Complete breaker |
| Series | Series G |
| Terminals | Line and load |
| Frame | EG |
| Frequency rating | 50/60 Hz |
| Mounting hardware | Metric |
| Interrupt rating | 85 kAIC at 240 Vac 22 kAIC at 600Y/347 Vac 35 kAIC at 480 Vac |
| Number of poles | Three-pole |
| Type | Complete breaker |
