Description

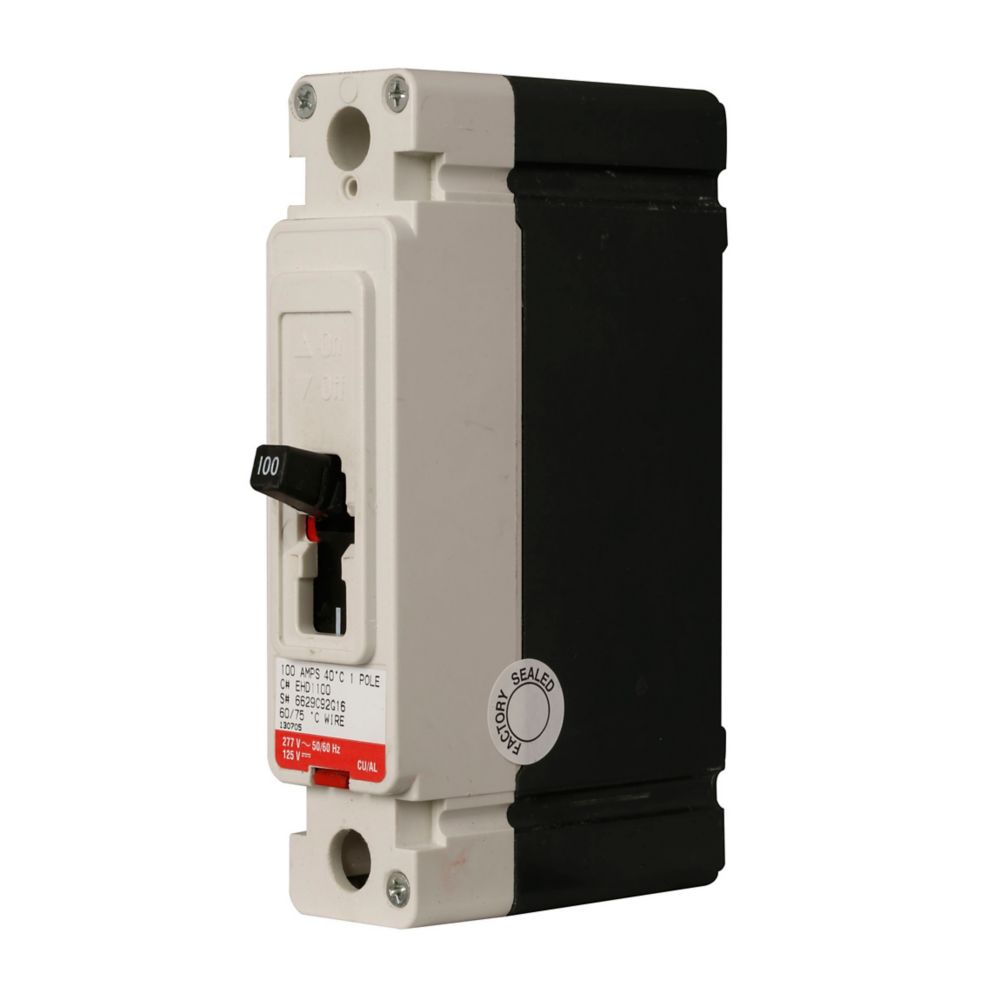

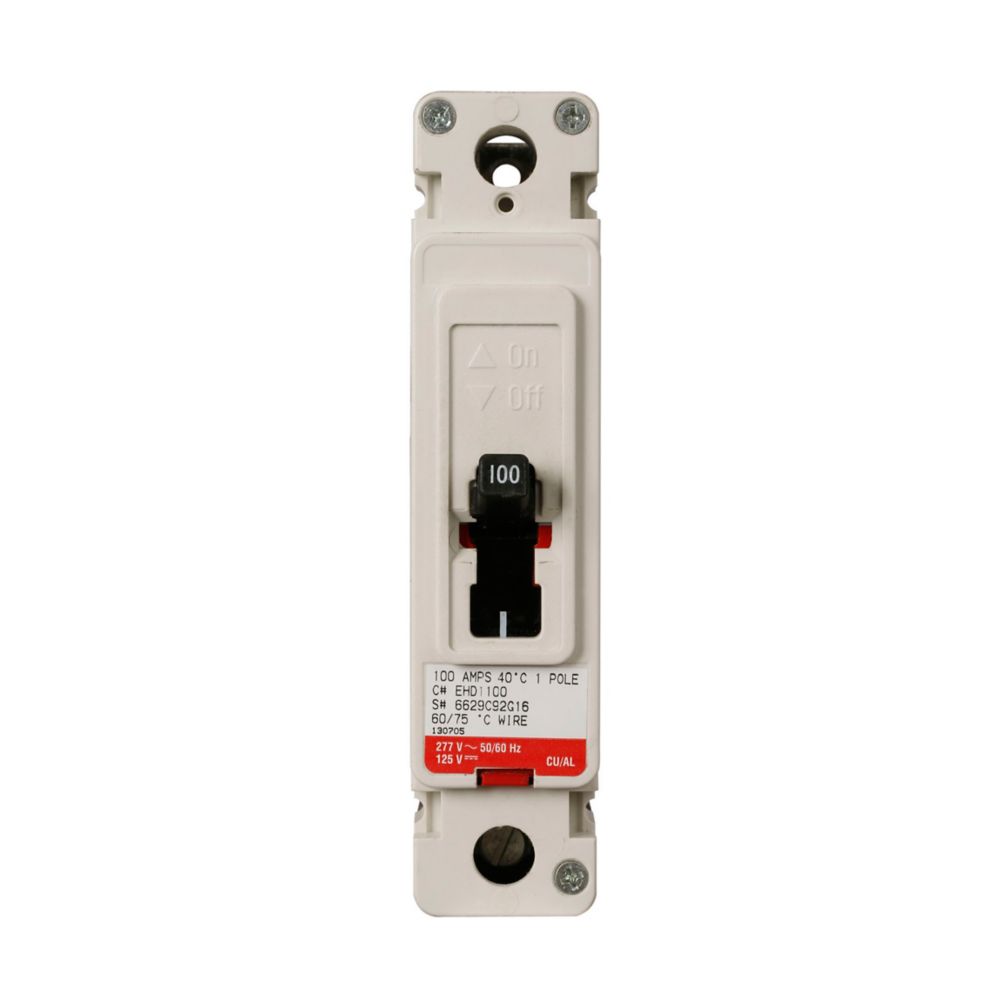

EHD1080L - Eaton Cutler-Hammer - Feed-Thru 80 Amp 1 Pole 277 Volt Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, EHD, Complete breaker, Fixed thermal, fixed magnetic trip type, Single-pole, 80A, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | EHD1080L |
| UPC | 786679050637 |
| Product Length/Depth | 3.38 in |
| Product Height | 6 in |
| Product Width | 1.38 in |
| Product Weight | 2 lb |
| Certifications | UL Listed |
PRODUCT SPECIFICATIONS
| Amperage Rating | 80 A |
| Trip Type | T186 |
| Circuit breaker type | EHD |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | F |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 14 kAIC at 480 Vac 18 kAIC at 240 Vac |
| Number of poles | Single-pole |
