Description

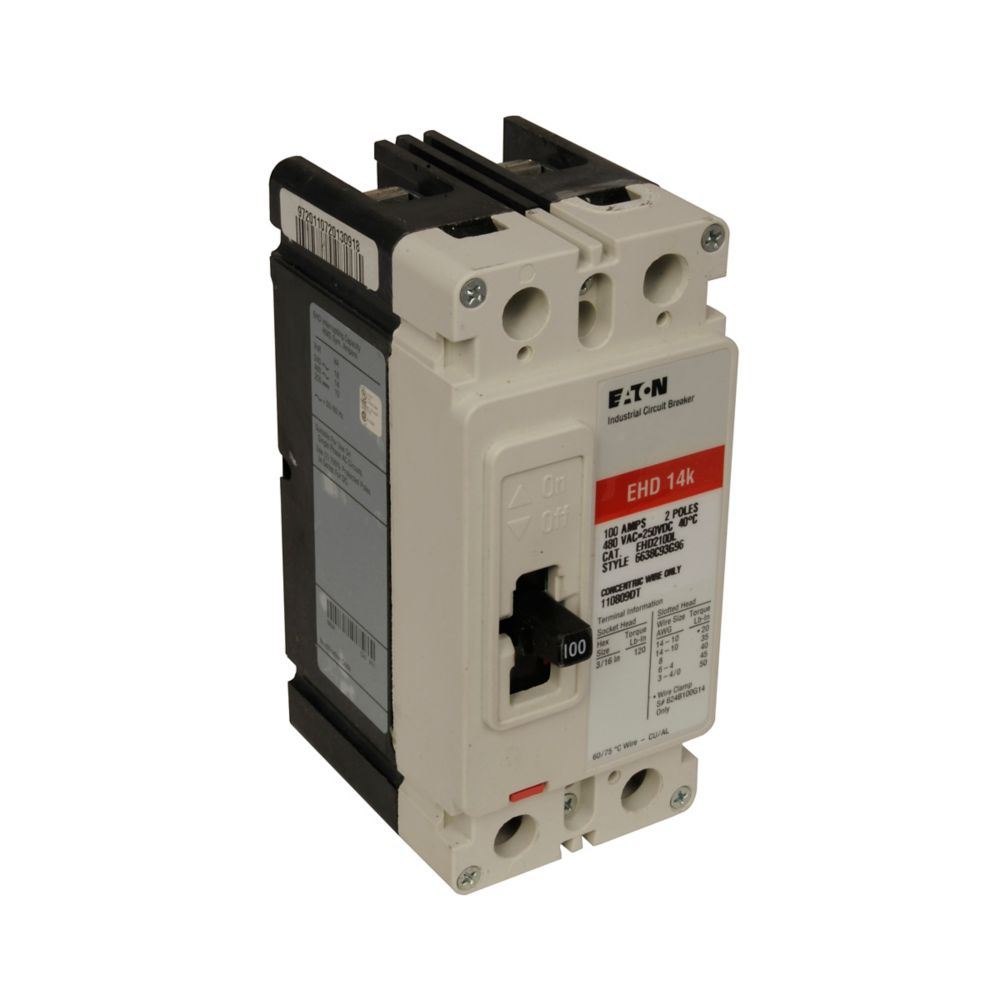

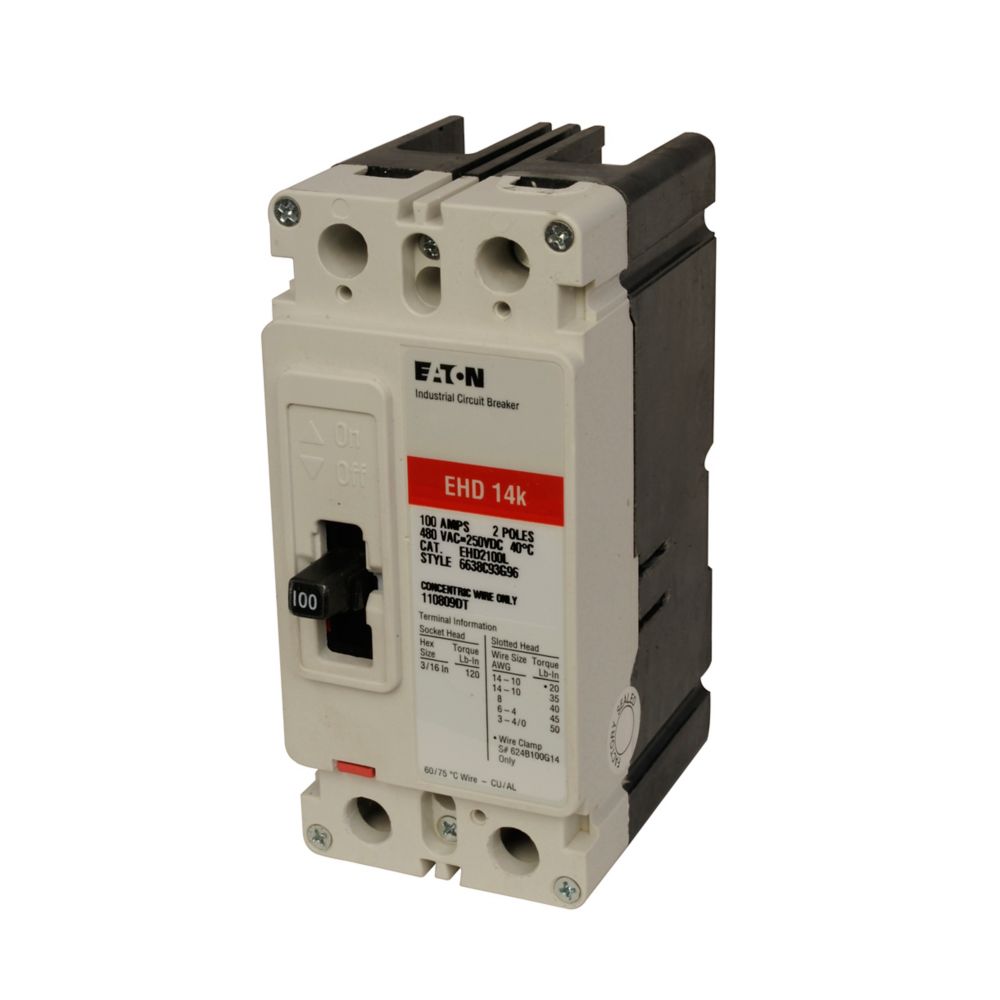

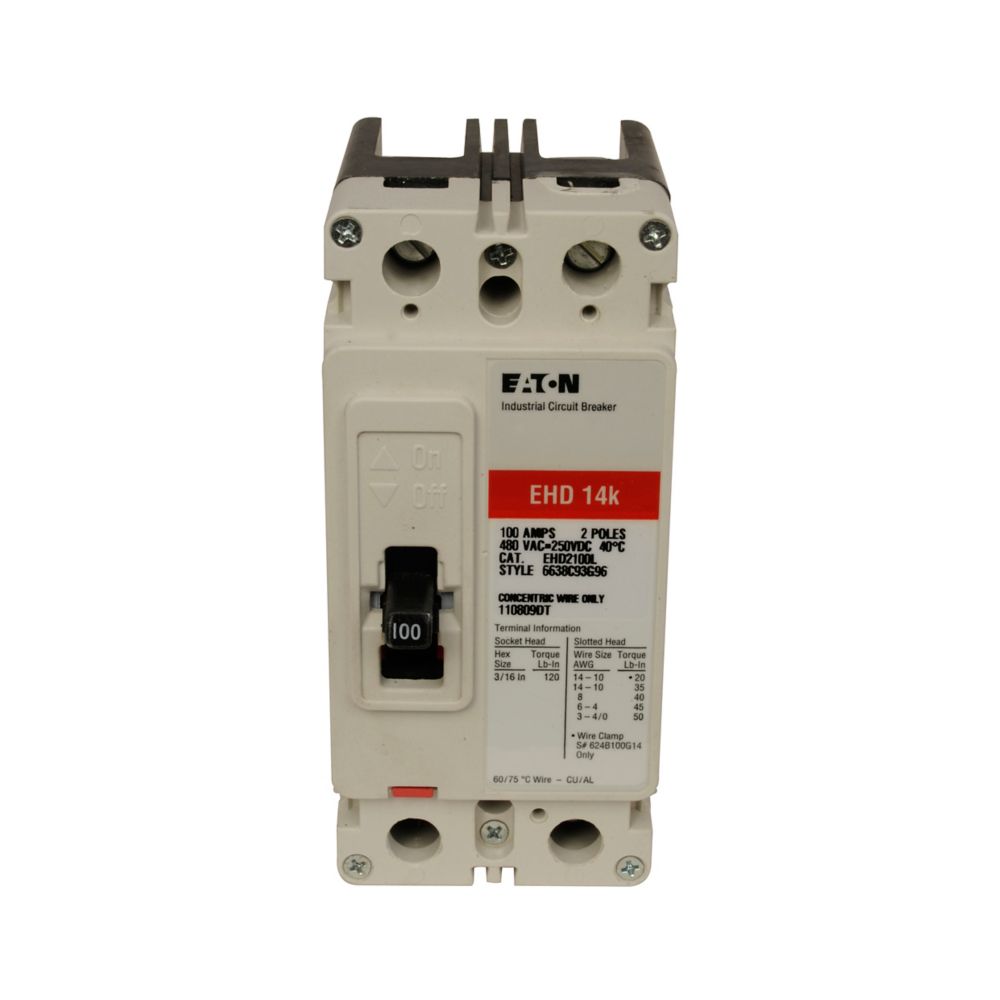

EHD2100L - Eaton Cutler-Hammer - Feed-Thru 100 Amp 2 Pole 480 Volt Eaton - Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, EHD, Complete breaker, Fixed thermal, fixed magnetic trip type, Two-pole, 100A, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line and load, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | EHD2100L |
| UPC | 786679850930 |
| Product Length/Depth | 3.38 in |
| Product Height | 6 in |
| Product Width | 2.75 in |
| Product Weight | 3 lb |
| Certifications | UL Listed |
PRODUCT SPECIFICATIONS
| Amperage Rating | 100 A |
| Trip Type | T186 |
| Circuit breaker type | EHD |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | F |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 14 kAIC at 480 Vac 18 kAIC at 240 Vac |
| Number of poles | Two-pole |
