EIK031 - Schneider Electric - 30mm Square D Enclosed Push Button Operator

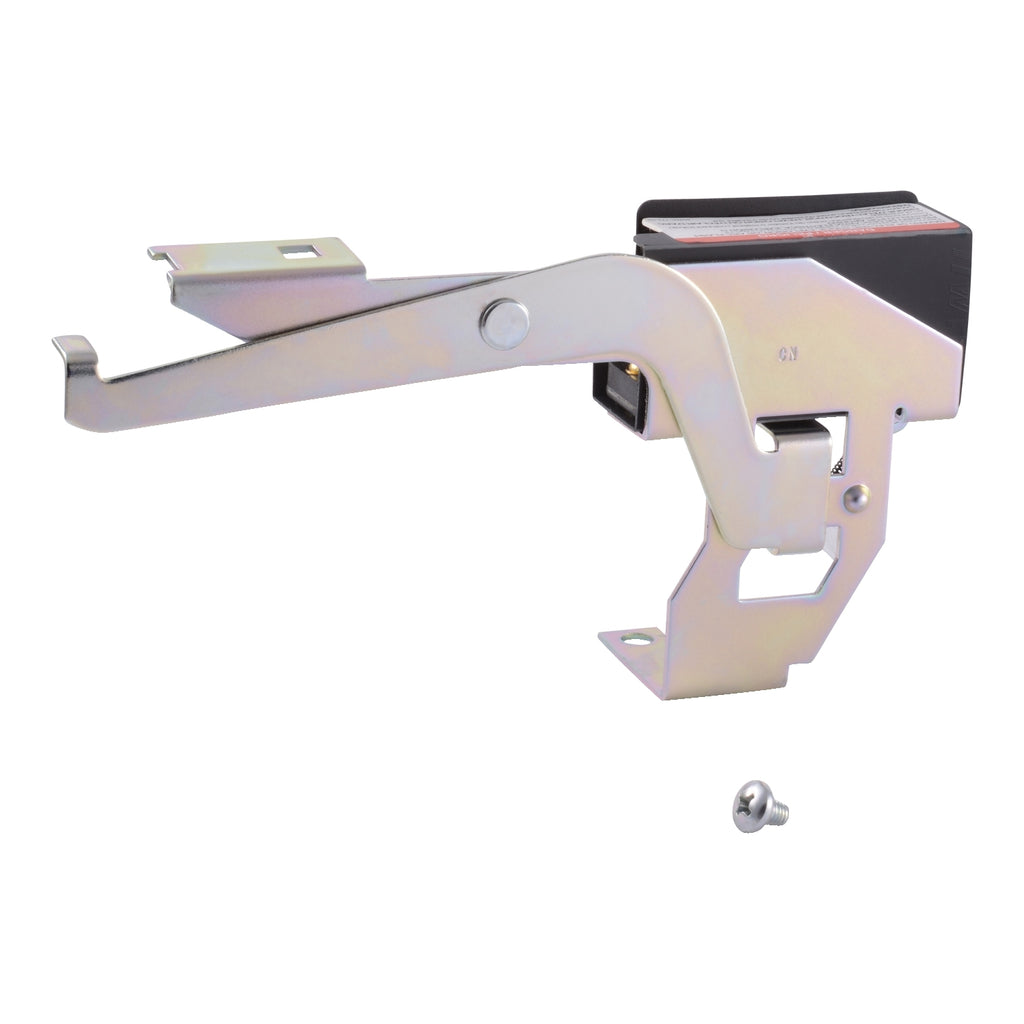

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 30A to 60A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Interlock |
| Product destination |
Safety switch |
Complementary
| Product Certifications |
UL Listed |
| Switch Function |
SPDT |
| Height |
3.463 in (87.960 mm) |
| Width |
6.735 in (171.069 mm) |
| Depth |
1.38 in (35.05 mm) |
Ordering and shipping details
| Category |
US10DE100058 |
| Discount Schedule |
0DE1 |
| GTIN |
785901421856 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.90 in (9.906 cm) |
| Package 1 Width |
6.40 in (16.256 cm) |
| Package 1 Length |
7.00 in (17.780 cm) |
| Package 1 Weight |
8.480 oz (240.404 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
210 |
| Package 2 Height |
27.00 in (68.580 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
122.000 lb(US) (55.338 kg) |
PRODUCT DATASHEET
EIK031_Product Datasheet
