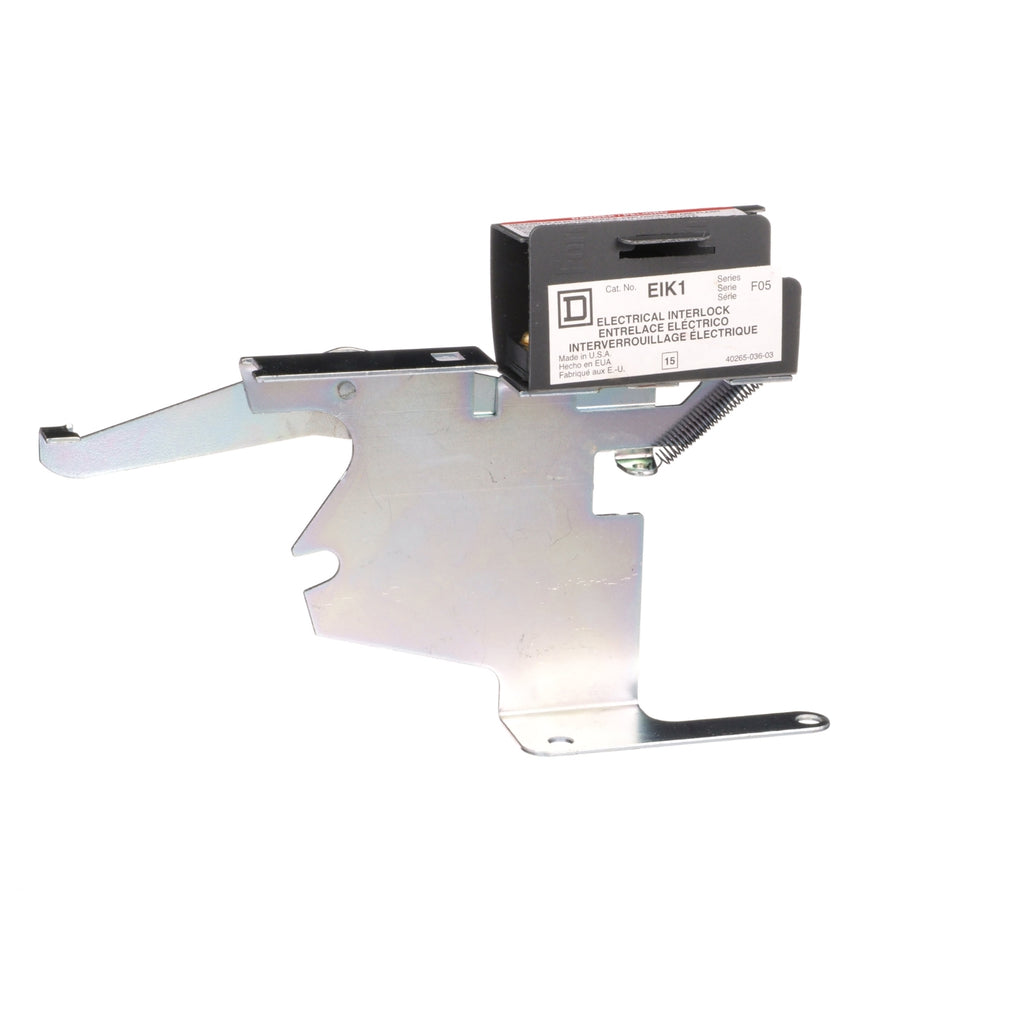

EIK1 - Schneider Electric - Square D Push Button Operator 22mm
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 100A to 200A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Interlock |
| Product destination |
Safety switch |
Complementary
| Product Certifications |
UL Listed |
| Switch Function |
SPDT |
| Height |
4.343 in (110.312 mm) |
| Width |
7.263 in (184.480 mm) |
| Depth |
1.48 in (37.59 mm) |
Ordering and shipping details
| Category |
US10DE100058 |
| Discount Schedule |
0DE1 |
| GTIN |
785901751304 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.90 in (9.906 cm) |
| Package 1 Width |
6.20 in (15.748 cm) |
| Package 1 Length |
7.00 in (17.780 cm) |
| Package 1 Weight |
10.400 oz (294.835 g) |
PRODUCT DATASHEET
EIK1_Product Datasheet
