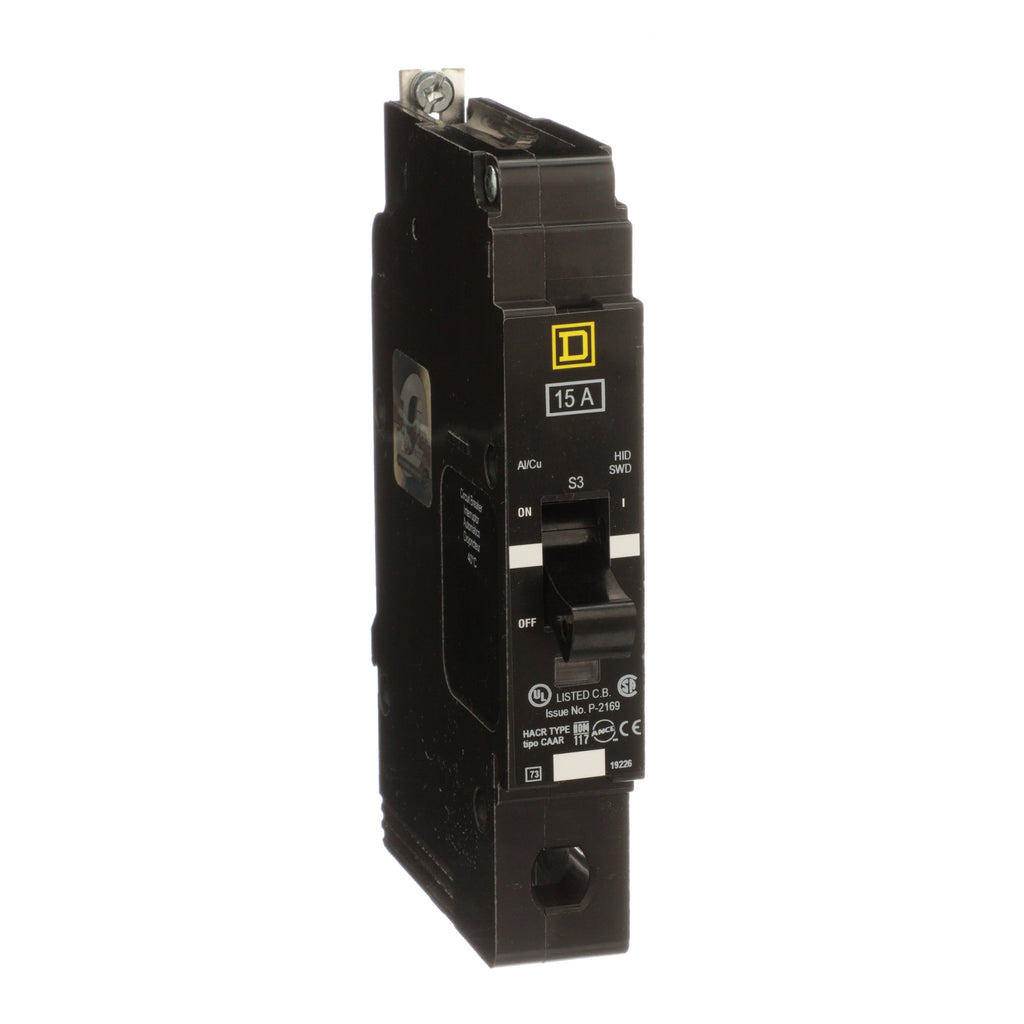

EJB14015 - Schneider Electric - Bolt-On 15 Amp 1 Pole 277 Volt Square D Molded Case Circuit Breaker
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
GENERAL SPECIFICATIONS
| Range | 125 A Frame EDB-EGB-EJB |
|---|---|
| Product Type | Miniature circuit-breaker |
| Device Short Name | EJB |
| Module Type | E-Frame |
| Trip Unit Rating | 875 A |
| Rated Current | 15 A |
|---|---|
| Maximum Operating Voltage | 277 V AC |
| AWG Gauge | AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper |
| Breaking Capacity | 65 kA 240 V AC 65 kA 277 V AC 100 kA 120 V AC 65 kA 120/240 V AC |
| Circuit Breaker Application | HACR rated Switching Duty rated HID rated |
| Electrical Connection | Lugs aluminium |
| Holding Current | 270 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Number of Spaces Required | 1 |
| Product Destination | NF panelboard |
| Protect Type | Overload Short-circuit |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | J |
| Tightening Torque | 30.09 lbf.in (3.4 N.m) 0.004…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
| Height | 5.66 in (143.76 mm) |
| Width | 0.98 in (24.89 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 2 lb(US) (0.9 kg) |
