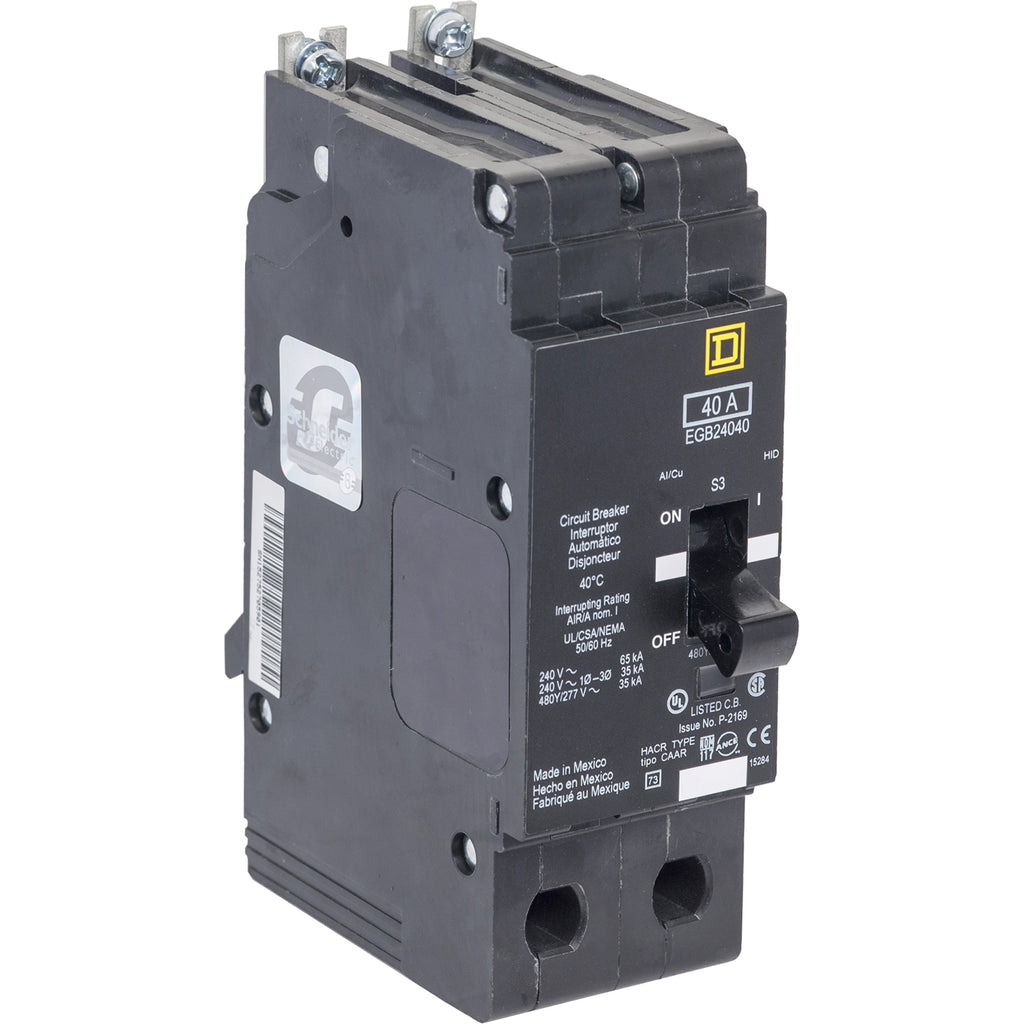

Description
| Main | |
|---|---|
| Range | 125 A Frame EDB-EGB-EJB |
| Product Type | Miniature circuit-breaker |
| Device Short Name | EJB |
| Module Type | E-Frame |
| Trip Unit Rating | 2300 A |
| Complementary | |
| Rated Current | 90 A |
| Maximum Operating Voltage | 480Y/277 V AC |
| AWG Gauge | AWG 12...AWG 2/0 aluminiumAWG 14...AWG 2/0 copper |
| Breaking Capacity | 65 kA 277 V AC100 kA 240 V AC65 kA 480Y/277 V AC100 kA 120 V AC100 kA 120/240 V AC |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | Lugs aluminium |
| Holding Current | 1000 A |
| Local Signalling | Trip indicator |
| Mounting Mode | Bolt-on |
| Number of Poles | 2 |
| Number of Spaces | 2 |
| Number of Spaces Required | 2 |
| Product Destination | NF panelboard |
| Protect Type | OverloadShort-circuit |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity Code | J |
| Tightening Torque | 34.5 lbf.in (3.9 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10)49.6 lbf.in (5.6 N.m) 0.02…0.1 in² (10…70 mm²) (AWG 8...AWG 2/0) |
| Height | 5.66 in (143.76 mm) |
| Width | 1.96 in (49.78 mm) |
| Depth | 4.05 in (102.87 mm) |
| Product Weight | 3 lb(US) (1.4 kg) |
| Environment | |
| Product Certifications | cULus |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200937 |
| Discount Schedule | 0DE2 |
| GTIN | 3606486143797 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.700 in (9.398 cm) |
| Package 1 Width | 6.00 in (15.24 cm) |
| Package 1 Length | 9.800 in (24.892 cm) |
| Package weight(Lbs) | 2.47 lb(US) (1.12 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
EJB24090
EJB24090
