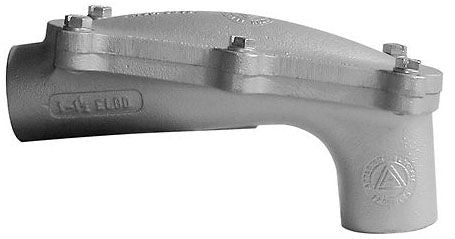

ELBD75A - Appleton - 3/4 Inch ELBD Conduit Body, Copper-Free Aluminum
Roll over image to zoom in Click on image to zoom
ELBD75A - Appleton - 3/4 Inch ELBD Conduit Body, Copper-Free Aluminum

ELBD75A - Appleton - 3/4 Inch ELBD Conduit Body, Copper-Free Aluminum

AppletonSKU: APPELBD75A
Price:
$119.13
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Trade Size 3/4 Inch
Bend Angle 90 Degree
Connection Type Tapered Threaded Hub
Material Copper-Free Aluminum, Neoprene (Gasket), Steel (Cover Screw)
Finish Epoxy Powder Coated, Zinc Electroplated (Cover Screw)
Approval UL 886
Brand Name Unilets®
Model ELBD
Additional Information Volume 8.5 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG; Used On Threaded Metal Conduit; Includes Furnished Reducing Bushing; Application Hazardous Location; Applicable Standard NEC/CEC, Federal Specification A-A-50563
Product Datasheet
ELBD75A
