Description

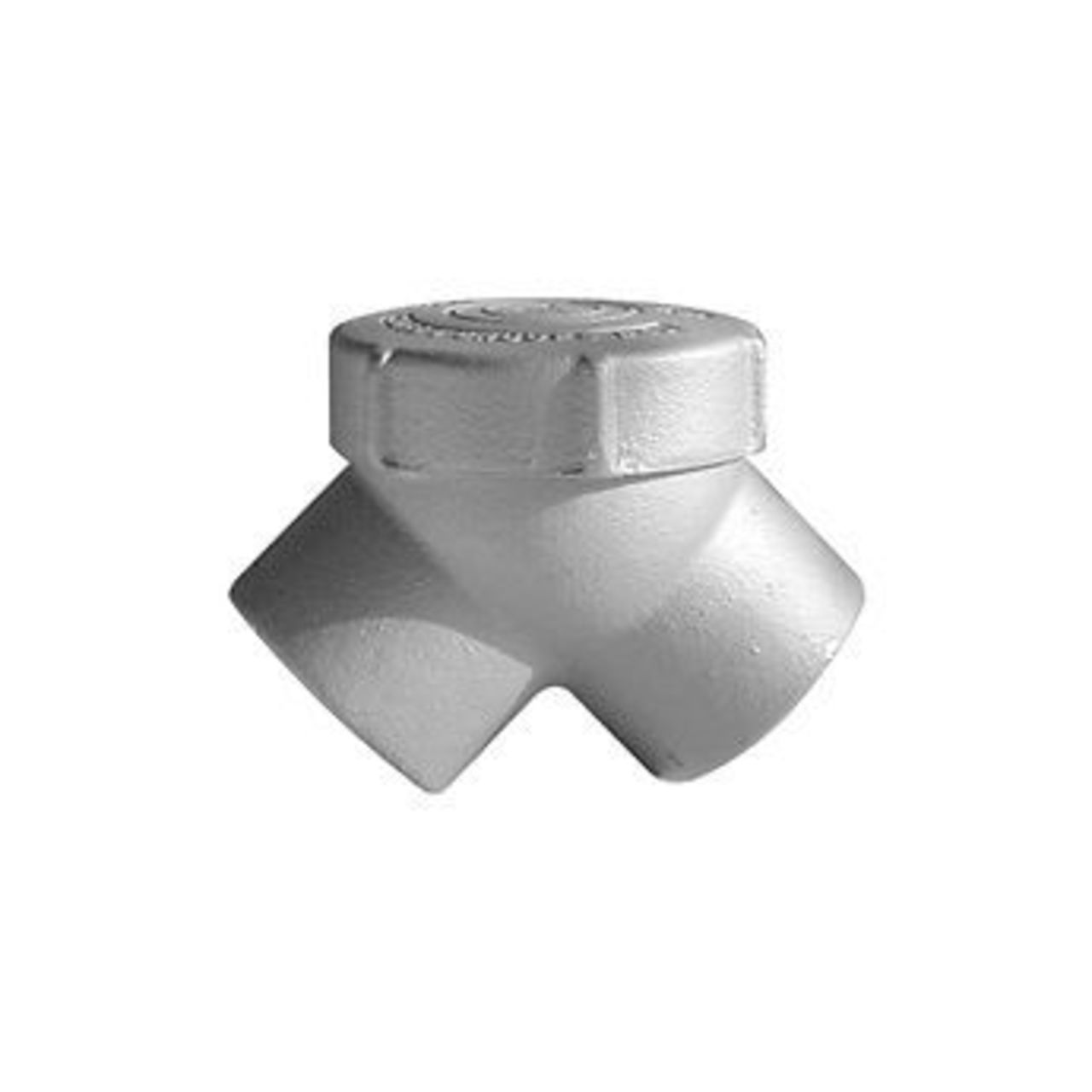

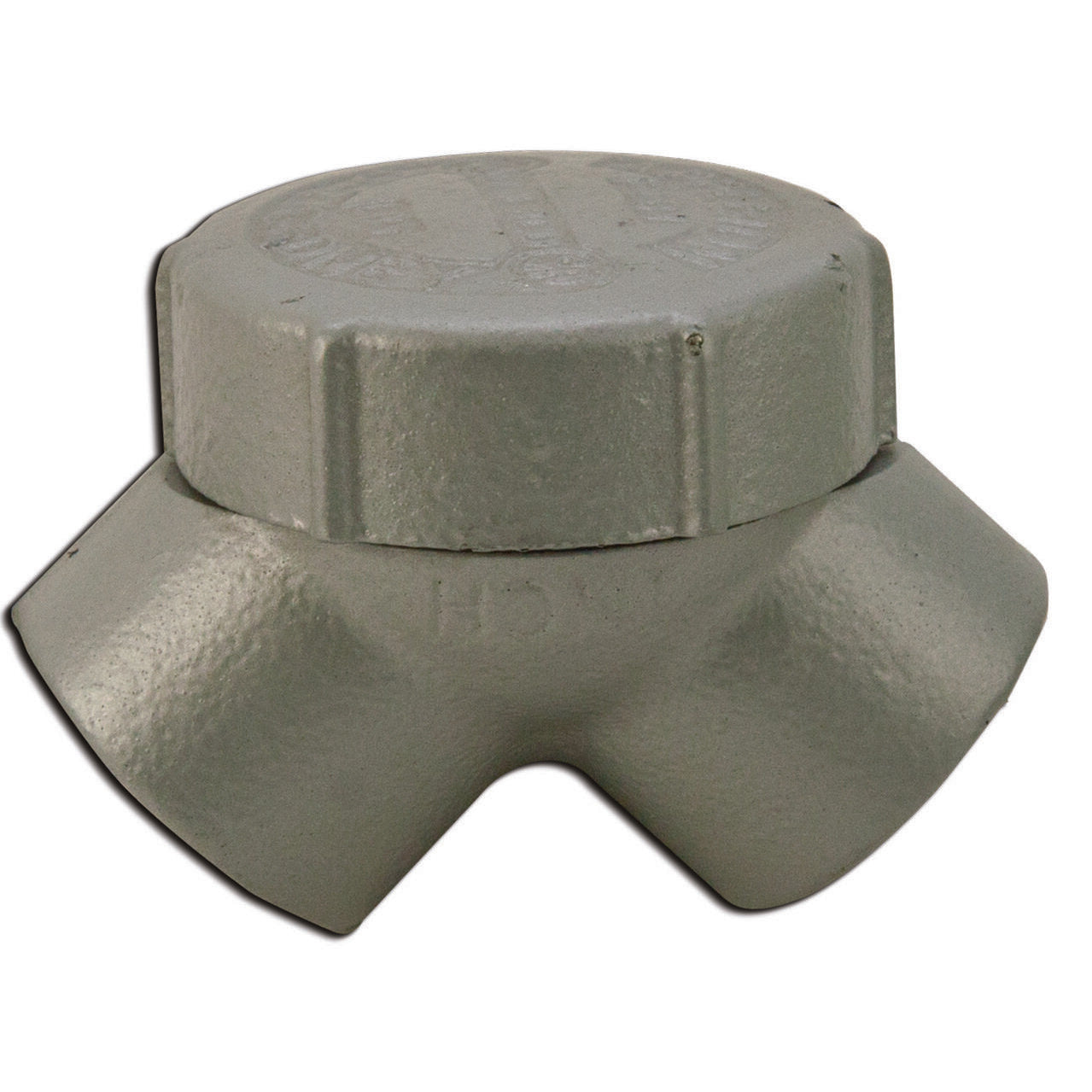

ELBY100 - Appleton - 1" 90° Capped Pulling Elbow Explosion-Proof Malleable Iron Fitting
The Appleton™ ELBY Capped Pulling Elbow is a 1-inch, explosion-proof and dust-ignitionproof fitting made from durable malleable iron. Designed for creating 90° bends in conduit systems, it features an angled cover that opens to allow straight-through conductor pulling from either hub. Ideal for use in hazardous locations, it doubles as both a directional change and pulling access point in conduit runs.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Aluminum and Malleable Iron: Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- Malleable Iron Only: Class I, Zone 1 and 2, Groups IIA, IIB +H2
- Standard Material and Finishes
- Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat, or aluminum with epoxy powder coat
