Description

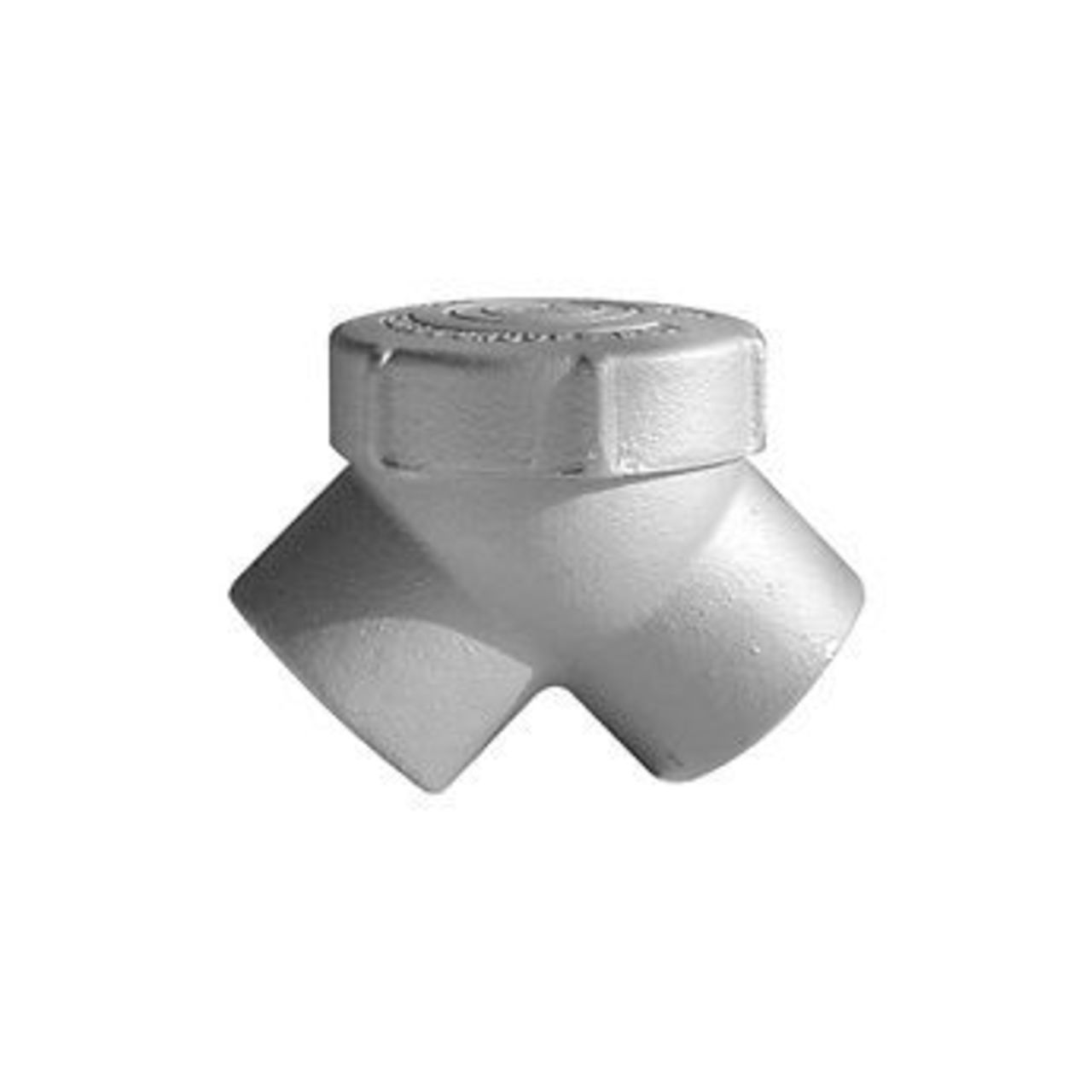

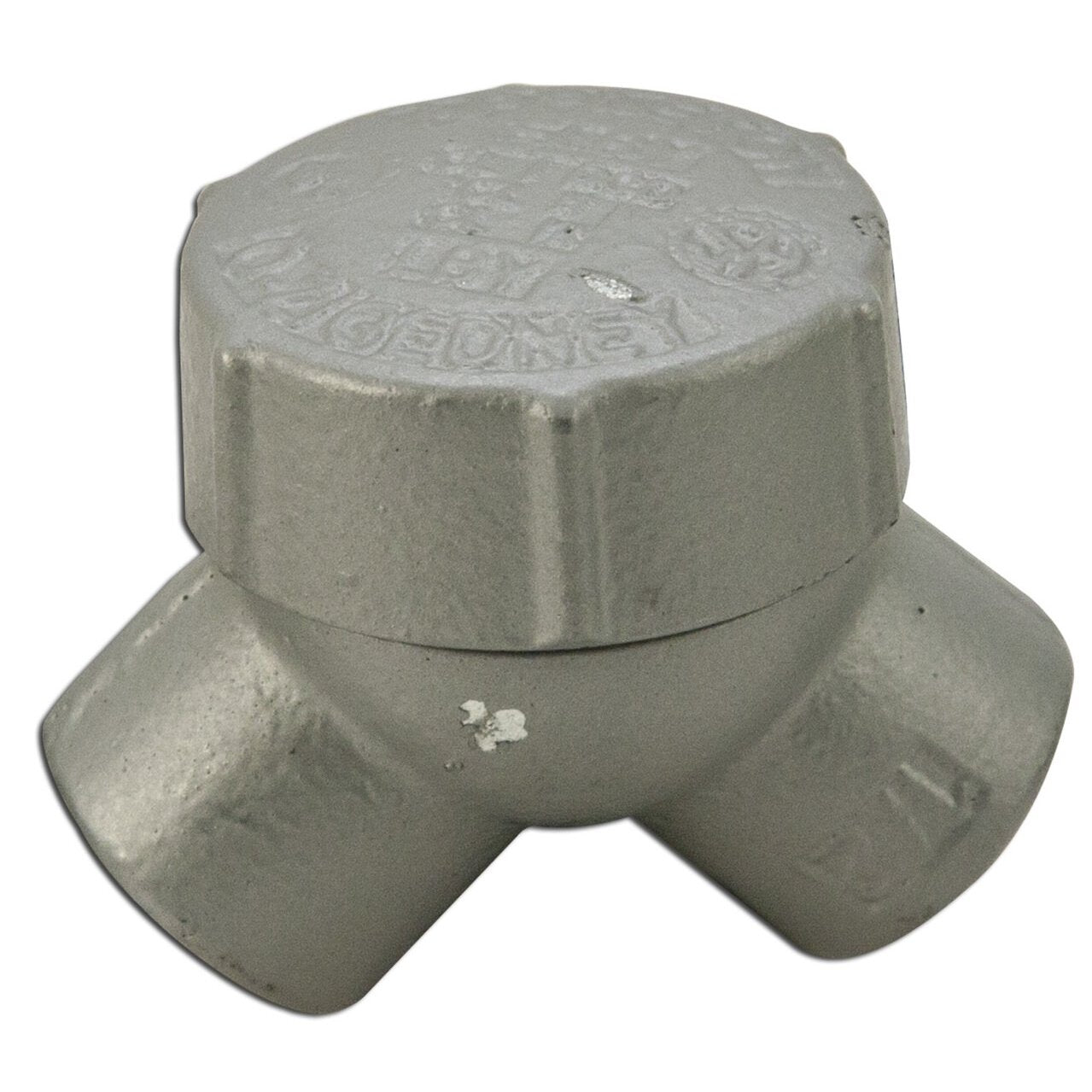

ELBY50 - Appleton - 1/2" 90 deg Capped Pulling Elbow Explosion-Proof Malleable Iron Fitting
The Appleton(TM) ELBY 1/2 inch capped pulling elbow is made of durable malleable iron and rated for explosion-proof and dust-ignitionproof use. It enables 90 deg bends in conduit runs, with an angled cover that allows conductors to be pulled straight through either hub. Ideal for hazardous environments, it serves as both a directional and pulling fitting.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Aluminum and Malleable Iron: Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- Malleable Iron Only: Class I, Zone 1 and 2, Groups IIA, IIB +H2
- Standard Material and Finishes
- Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat, or aluminum with epoxy powder coat
PRODUCT DATASHEET
