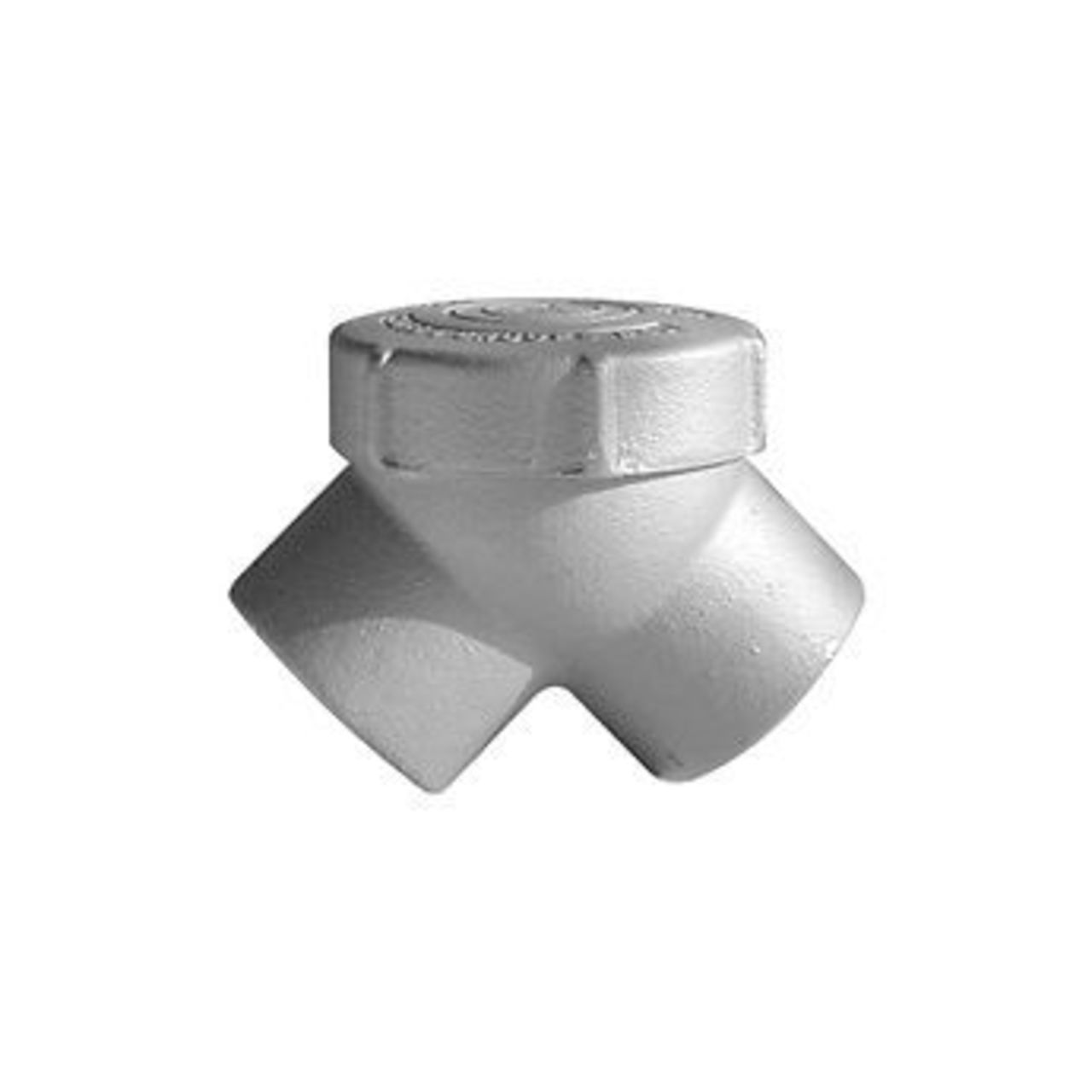

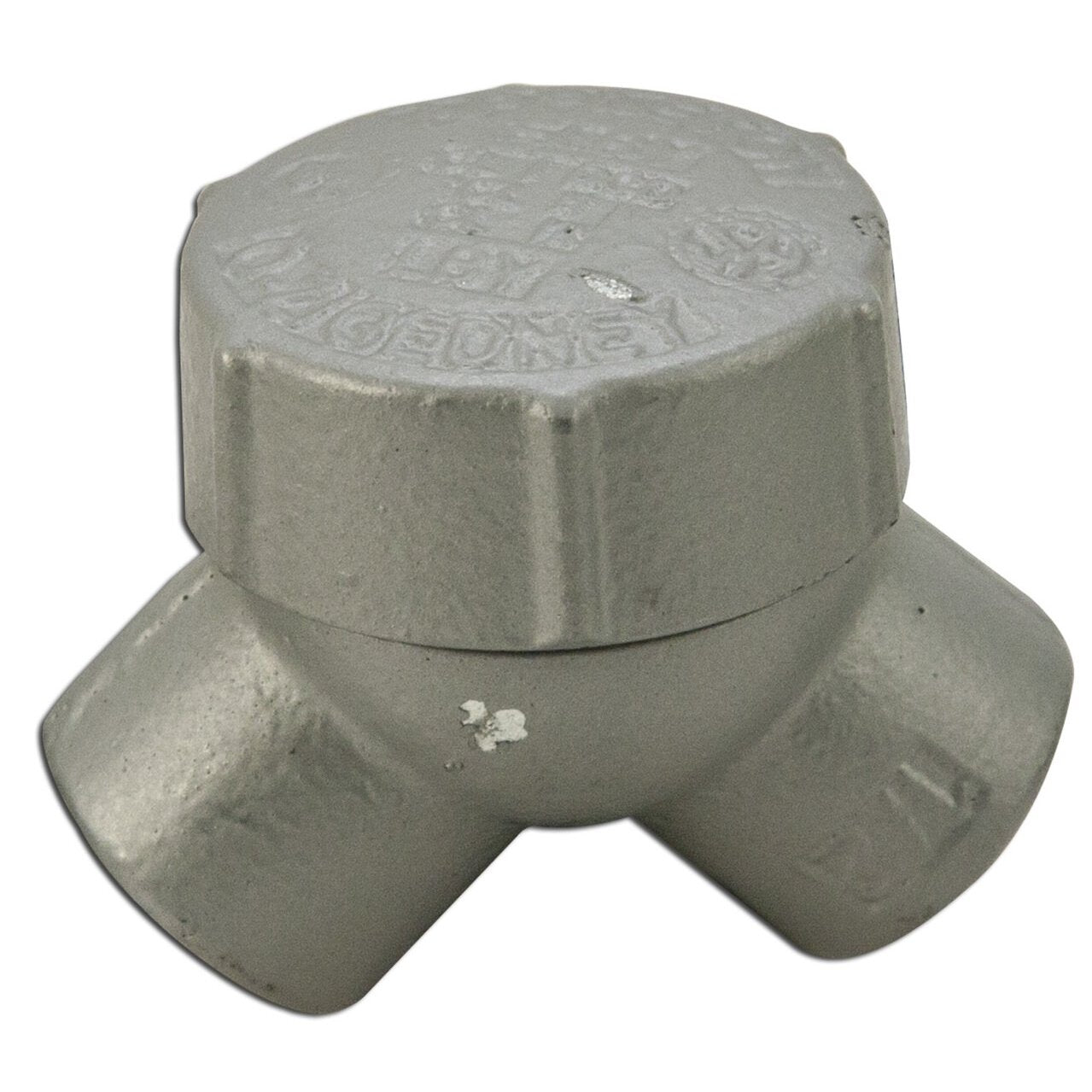

ELBY75 - Appleton - 3/4" 90° Capped Pulling Elbow Explosion-Proof Malleable Iron Fitting
The Appleton™ ELBY 3/4 inch capped pulling elbow is constructed from rugged malleable iron and rated for explosion-proof and dust-ignitionproof applications. Designed to form 90° bends in conduit runs, it features an angled, removable cover that enables straight-through conductor pulling. Perfect for hazardous locations, it functions as both a directional change and a convenient pulling point.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Aluminum and Malleable Iron: Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- Malleable Iron Only: Class I, Zone 1 and 2, Groups IIA, IIB +H2
- Standard Material and Finishes
- Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat, or aluminum with epoxy powder coat
