Description

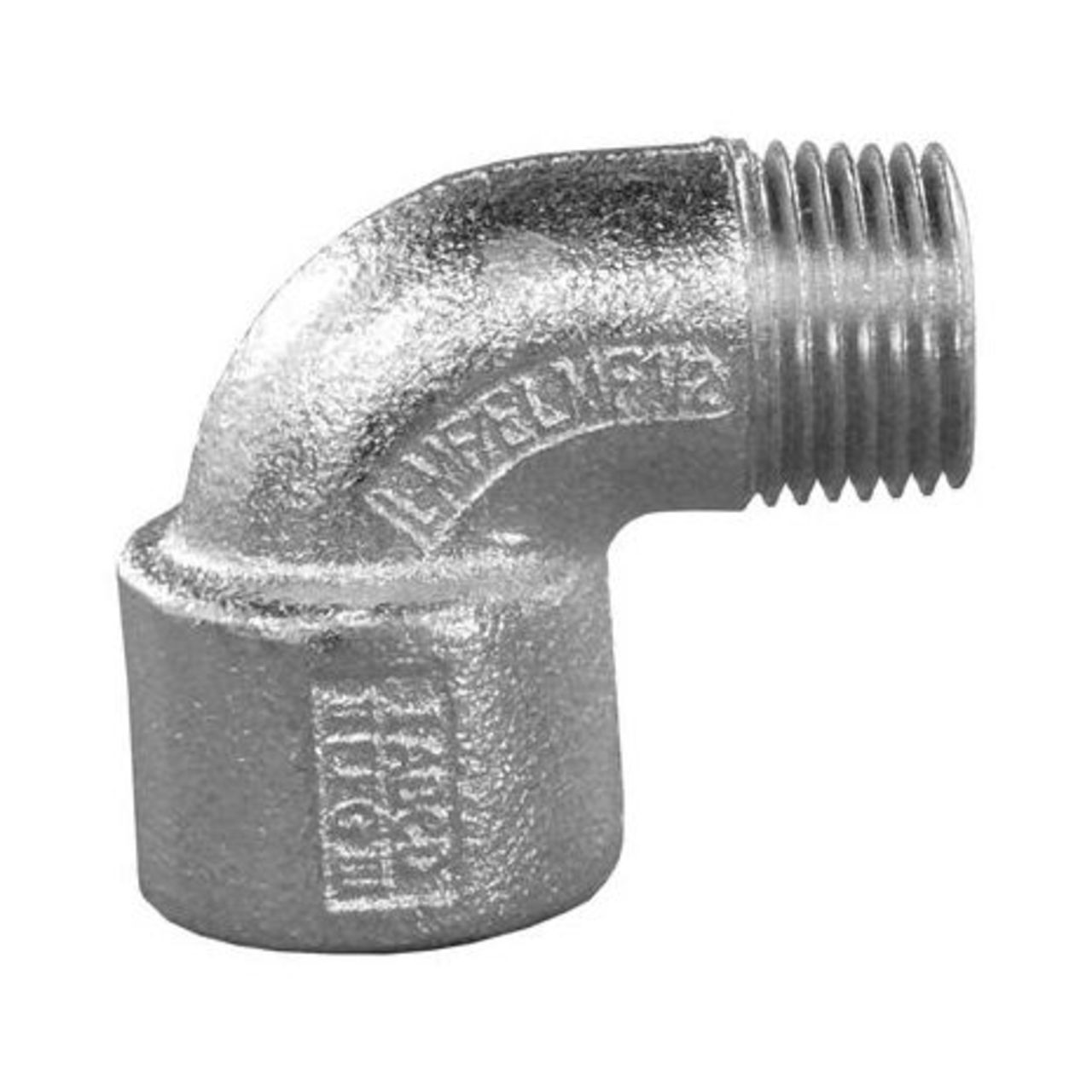

ELMF9050 - Appleton - 1/2" 90 deg Male/Female Elbow Explosion-Proof Malleable Iron Fitting
The Appleton(TM) 90 deg Elbow with 1/2 inch male/female threads is built from malleable iron and rated for explosion-proof and dust-ignitionproof use. Designed for threaded rigid metal conduit and IMC, it provides a secure 90 deg directional change in hazardous environments. An integral bushing safeguards conductor insulation for added protection.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Malleable iron with zinc electroplate or copperfree (4/10 of 1% max.) aluminum with natural finish
PRODUCT DATASHEET
