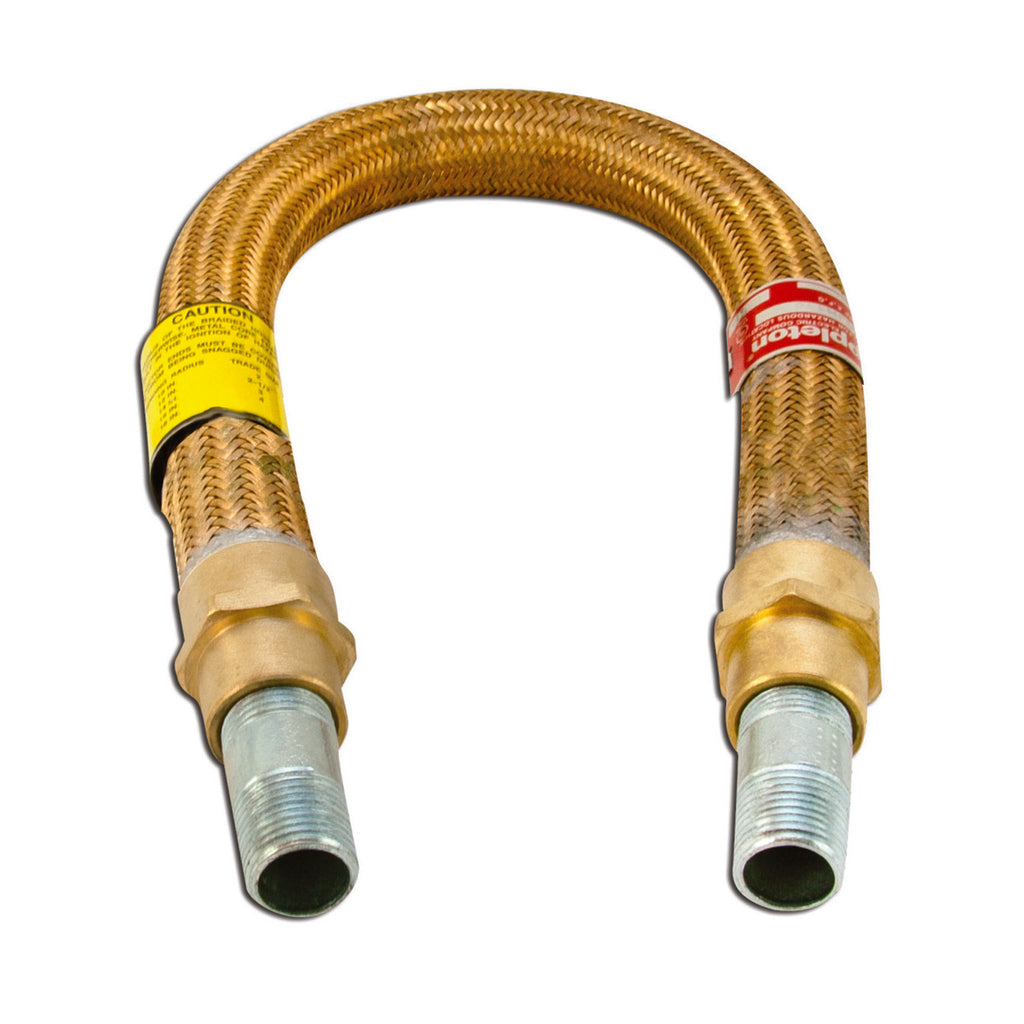

EXGJH118 - Appleton - 1/2" x 18" Flexible Coupling Explosion-Proof Brass/Bronze

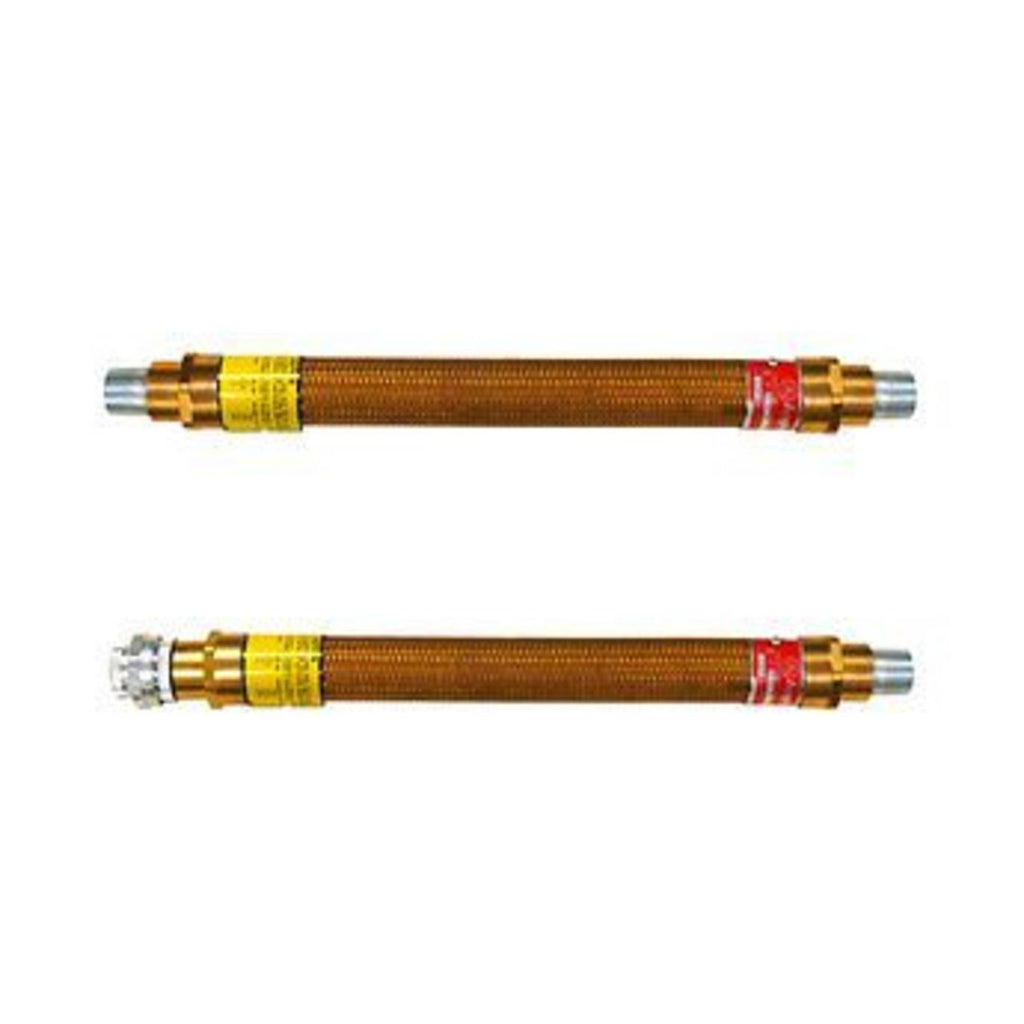

The EXGJH Flexible Coupling (1/2 x 18 inch) is designed for explosion-proof, dust-ignitionproof, and watertight applications in hazardous environments. It features brass female end fittings with removable male nipples, a flexible bronze outer braid, and a brass inner core with an insulating liner. Ideal for managing vibration, movement, or tight bends, it’s compatible with rigid and IMC conduit and suitable for use in wet locations.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- 1/2 and 3/4 Sizes: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1 Size: Class I, Groups C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1-1/4 thru 4 Sizes: Class I, Group D; Class II, Groups E, F, G; Class III
- ATEX Certifications and Compliances
- Stainless steel 1/2 thru; 2 Sizes: Ex II2 GD; Ex d IIC Gb; Ex t IIIC Db; IP66
- Standard Materials
- 1/2 thru 2: outer bronze braid, inner brass core with insulating liner, brass end fittings. 2-1/2 thru 4: outer stainless steel braid, inner stainless steel core with insulating liner, stainless steel end fittings
- Standard Finishes
- Natural finish
- Options
- 1/2 through 2 available in stainless steel (suffix -SS). 1/2 through 1 EXLK stainless steel union (suffix -SU). 1/2 through 1 stainless steel nipple (suffix -NS). Custom lengths available (contact your local sales representative)
