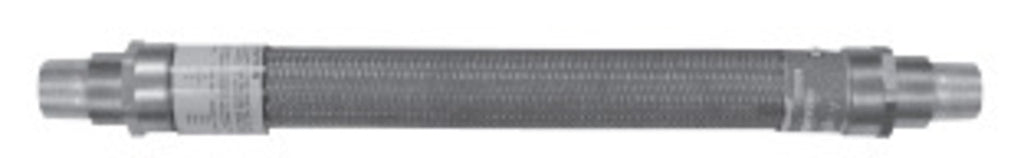

EXGJH212 - Appleton - 3/4" x 12" Flexible Coupling Explosion-Proof Brass/Bronze

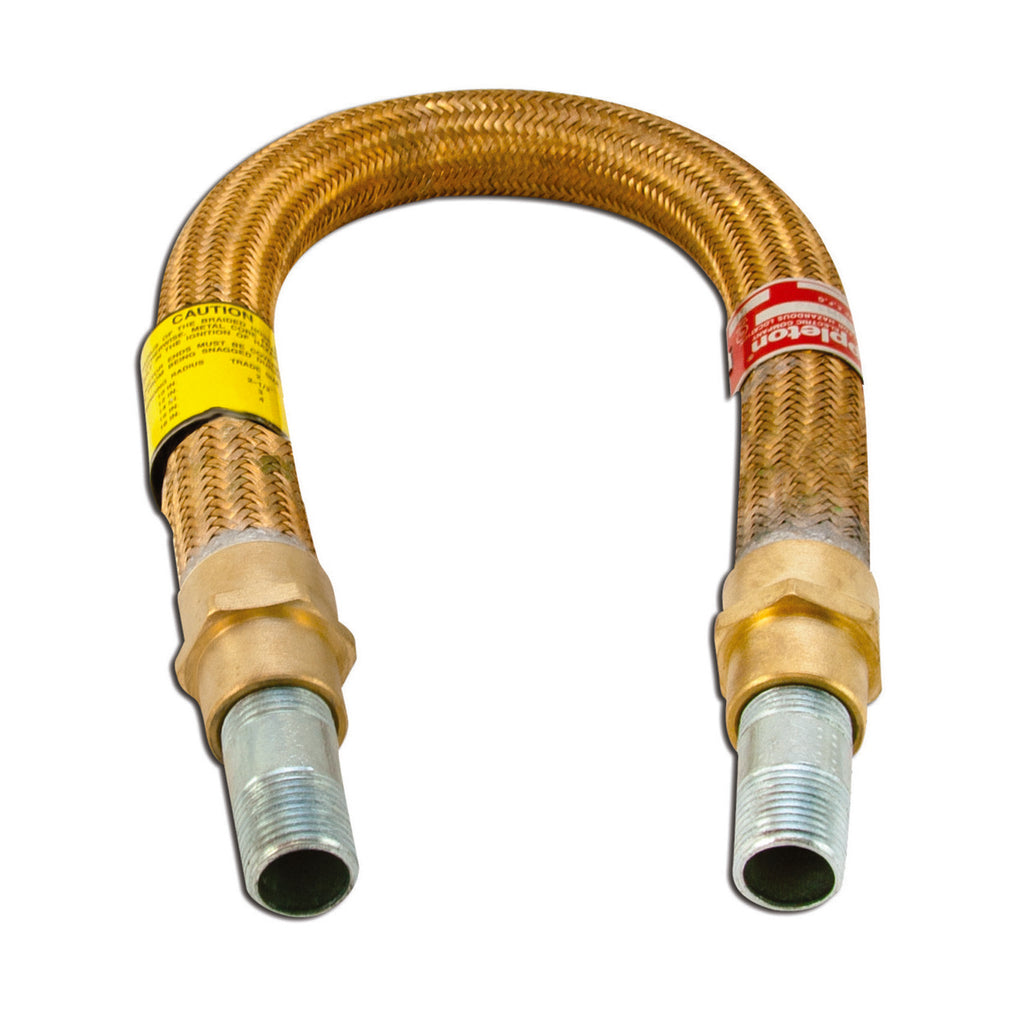

The EXGJH Flexible Coupling (3/4 x 12 inch) is built for explosion-proof, dust-ignitionproof, and watertight performance in hazardous and wet environments. It features brass female end fittings with removable male nipples, a flexible bronze outer braid, and a brass inner core with an insulating liner. Ideal for areas with vibration, movement, or tight conduit bends, it provides a secure and flexible connection for rigid or IMC conduit systems.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- 1/2 and 3/4 Sizes: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1 Size: Class I, Groups C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1-1/4 thru 4 Sizes: Class I, Group D; Class II, Groups E, F, G; Class III
- ATEX Certifications and Compliances
- Stainless steel 1/2 thru; 2 Sizes: Ex II2 GD; Ex d IIC Gb; Ex t IIIC Db; IP66
- Standard Materials
- 1/2 thru 2: outer bronze braid, inner brass core with insulating liner, brass end fittings. 2-1/2 thru 4: outer stainless steel braid, inner stainless steel core with insulating liner, stainless steel end fittings
- Standard Finishes
- Natural finish
- Options
- 1/2 through 2 available in stainless steel (suffix -SS). 1/2 through 1 EXLK stainless steel union (suffix -SU). 1/2 through 1 stainless steel nipple (suffix -NS). Custom lengths available (contact your local sales representative)
