EXGJH218 - Appleton - 3/4" x 18" Flexible Coupling Explosion-Proof Brass/Bronze

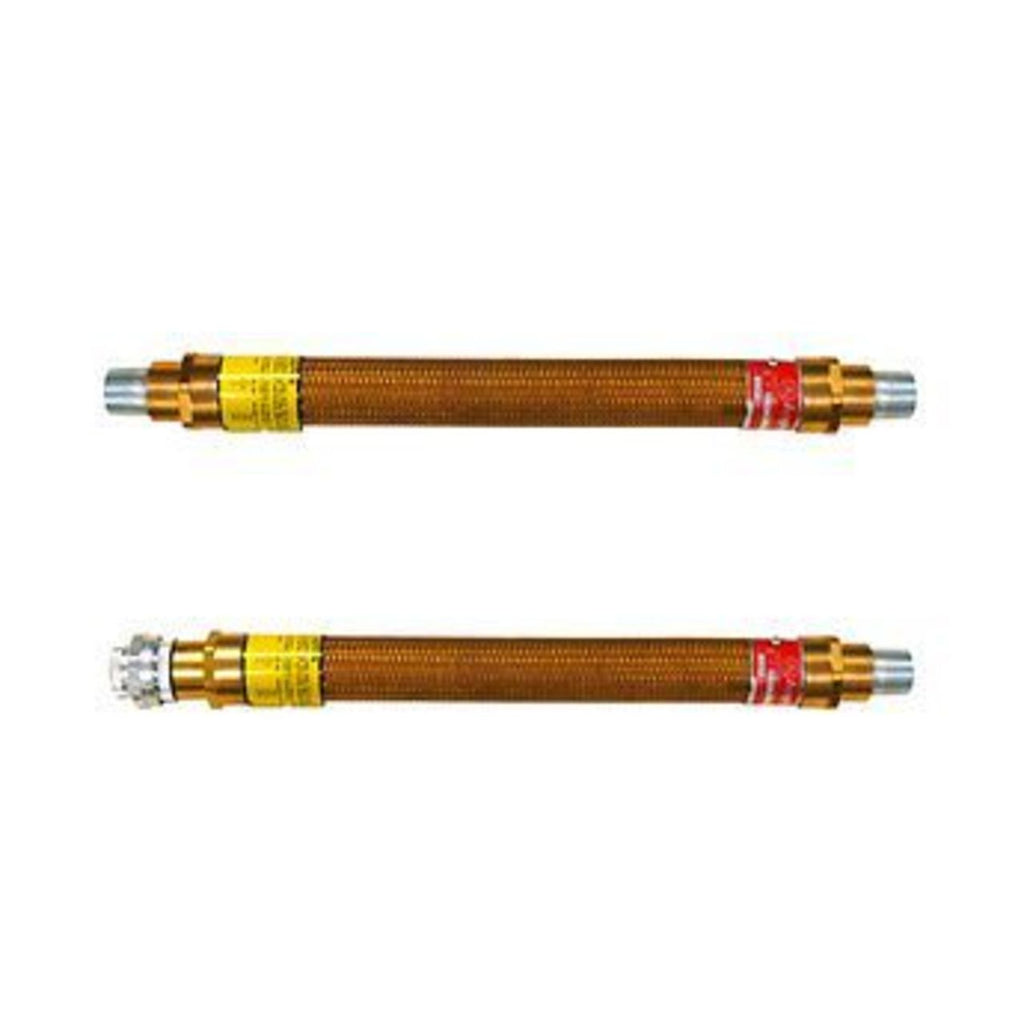

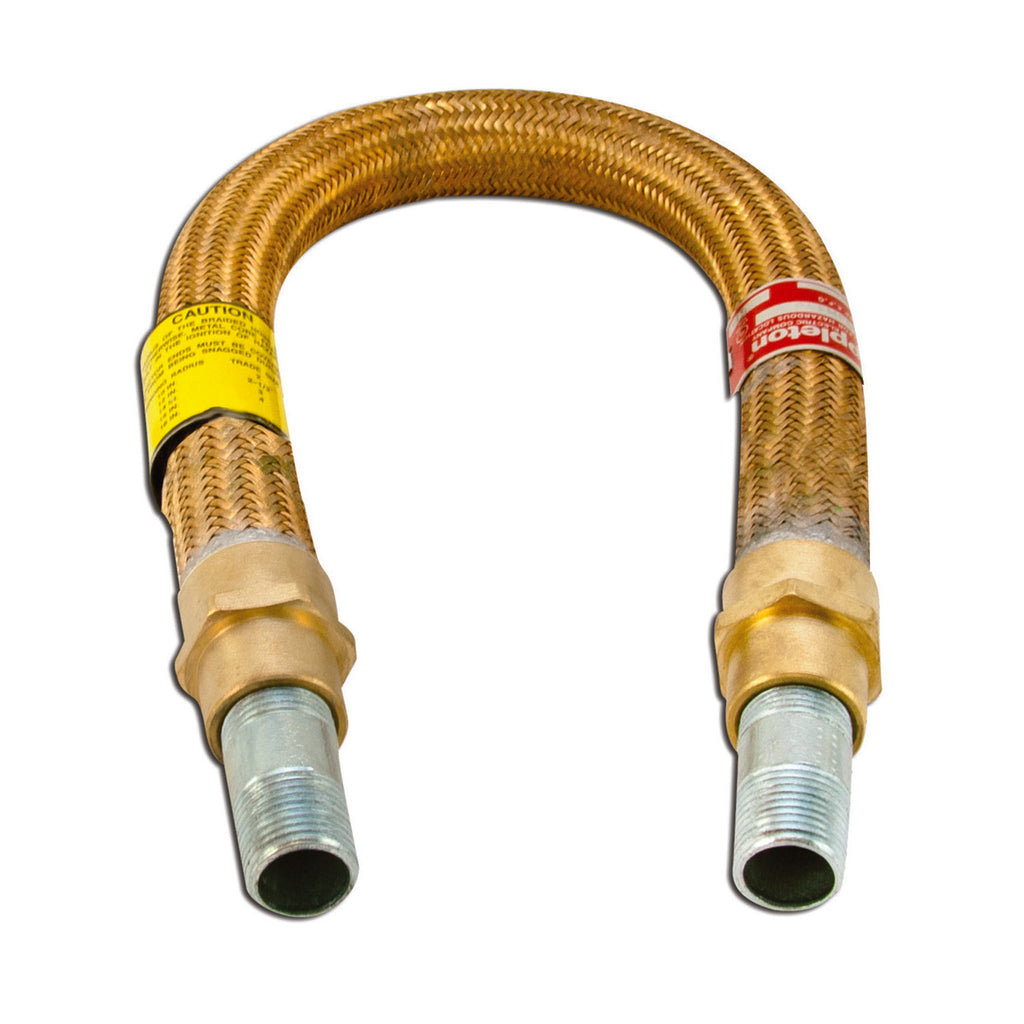

The EXGJH Flexible Coupling (3/4 x 18 inch) is designed for use in hazardous, explosion-proof, and dust-ignitionproof environments. It features brass female end fittings with removable male nipples, a flexible bronze outer braid, and a brass inner core with an insulating liner for added safety. Suitable for wet locations, this coupling is ideal for managing vibration, movement, or challenging bends in rigid or IMC conduit installations.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- 1/2 and 3/4 Sizes: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1 Size: Class I, Groups C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1-1/4 thru 4 Sizes: Class I, Group D; Class II, Groups E, F, G; Class III
- ATEX Certifications and Compliances
- Stainless steel 1/2 thru; 2 Sizes: Ex II2 GD; Ex d IIC Gb; Ex t IIIC Db; IP66
- Standard Materials
- 1/2 thru 2: outer bronze braid, inner brass core with insulating liner, brass end fittings. 2-1/2 thru 4: outer stainless steel braid, inner stainless steel core with insulating liner, stainless steel end fittings
- Standard Finishes
- Natural finish
- Options
- 1/2 through 2 available in stainless steel (suffix -SS). 1/2 through 1 EXLK stainless steel union (suffix -SU). 1/2 through 1 stainless steel nipple (suffix -NS). Custom lengths available (contact your local sales representative)
