Description

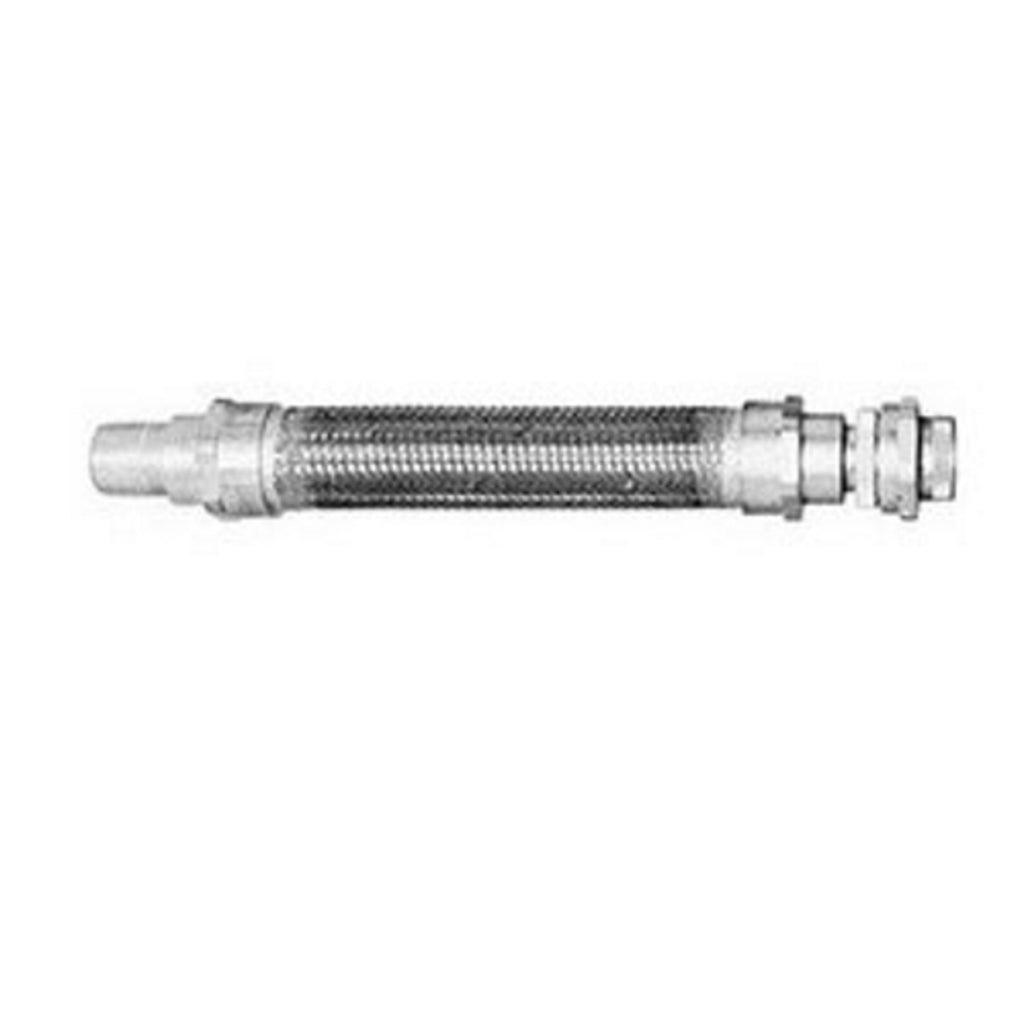

EXLK512 - Appleton - 1-1/2" Flexible Coupling Explosion-Proof Fitting
This 1-1/2 inch x 12 inch flexible coupling is engineered for explosion-proof and watertight performance in hazardous and wet locations. It features brass end fittings, a rugged bronze outer braid, and a brass inner core with an insulating liner for added safety and durability. Designed for use with rigid or IMC conduit systems, it includes one removable male nipple and one removable union, offering a flexible and secure solution in applications with vibration, movement, or challenging conduit routing.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- 1/2 and 3/4 Sizes: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1 Size: Class I, Groups C, D; Class II, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- 1-1/4 thru 4 Sizes: Class I, Group D; Class II, Groups E, F, G; Class III
- ATEX Certifications and Compliances
- Stainless steel 1/2 thru; 2 Sizes: Ex II2 GD; Ex d IIC Gb; Ex t IIIC Db; IP66
- Standard Materials
- 1/2 thru 2: outer bronze braid, inner brass core with insulating liner, brass end fittings. 2-1/2 thru 4: outer stainless steel braid, inner stainless steel core with insulating liner, stainless steel end fittings
- Standard Finishes
- Natural finish
- Options
- 1/2 through 2 available in stainless steel (suffix -SS). 1/2 through 1 EXLK stainless steel union (suffix -SU). 1/2 through 1 stainless steel nipple (suffix -NS). Custom lengths available (contact your local sales representative)
PRODUCT DATASHEET
