Description
Specifications
| Turning Radius | 1.75 Inch |
| Trade Size | 1 Inch |
| Connection Type | Tapered Threaded Female |
| Material | Epoxy Powder Coated Copper-Free Almag 35 Aluminum |
| Mounting Position | Vertical/Horizontal |
| Enclosure | Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III |
| Approval | UL 886/1203, CSA C22.2 |
| Brand Name | Unilets® |
| Model | EYSEF |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC |
Product Datasheet

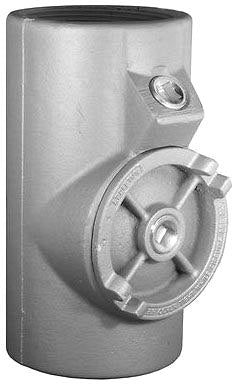

EYSEF100AL
