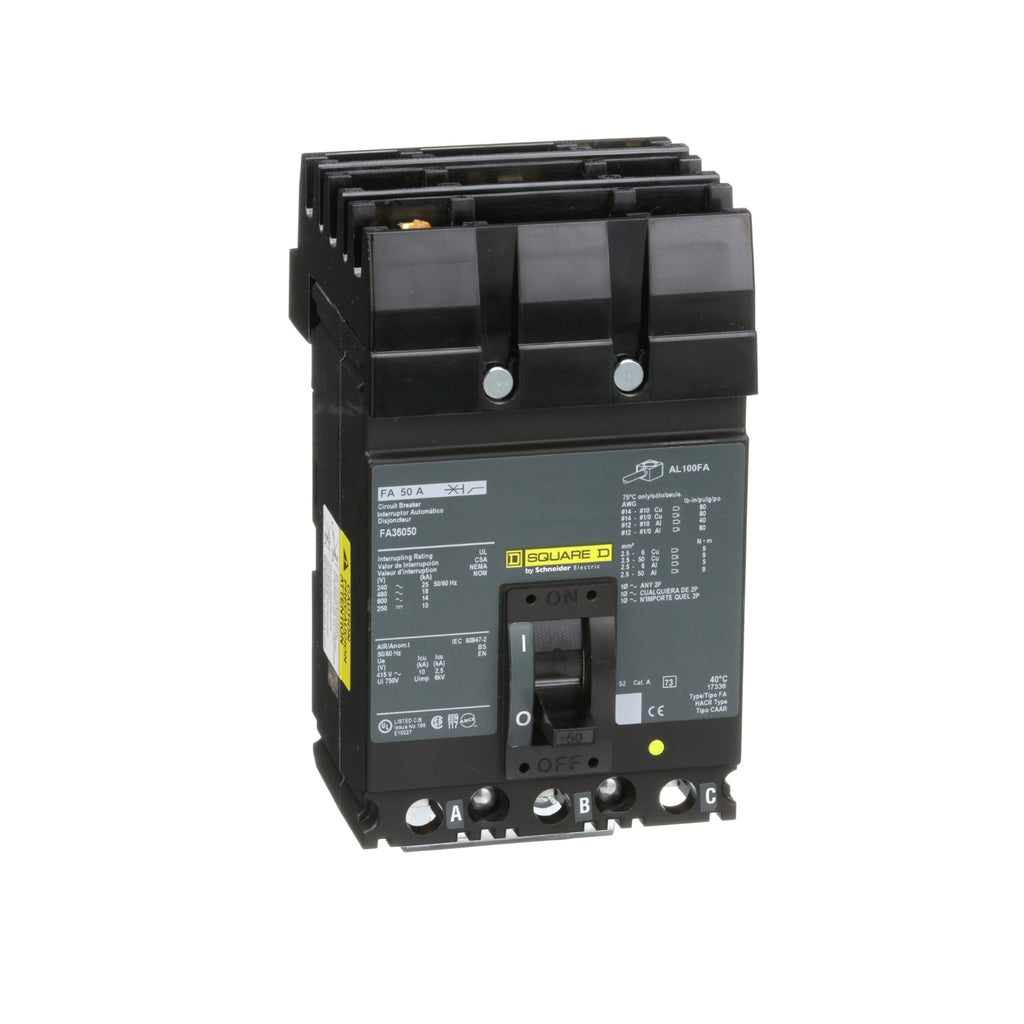

FA36050 - Schneider Electric - I-Line Plug-In - 50 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
Square D I-Line type FA circuit breaker, 3-pole, 3-phase, rated for 50 amps at 600 volts, with a standard interrupting capacity of 14kA at 600V. Designed for 40°C environments, this I-Line style plug-in breaker features a thermal magnetic trip unit and a durable molded case for consistent and reliable circuit protection.
GENERAL SPECIFICATIONS
| Product or Component Type | Circuit breaker |
|---|---|
| Trip Unit Technology | Thermal-magnetic |
| Line Rated Current | 50 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | I-Line |
| Magnetic Hold Current | 400 A |
| Magnetic Tripping Current | 850 A |
| Electrical connection | Lugs, load I-Line connection, line |
| Terminal identifier | AL50FA |
| Phase connection | ABC |
| Height | 6.4 in (162.6 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.13 in (104.90 mm) |
| Circuit breaker application | HACR rated |
PRODUCT DATASHEET
Schneider Electric_FA-Fframe-molded-case-circuit-breakers-and-switches_FA36050
