Description

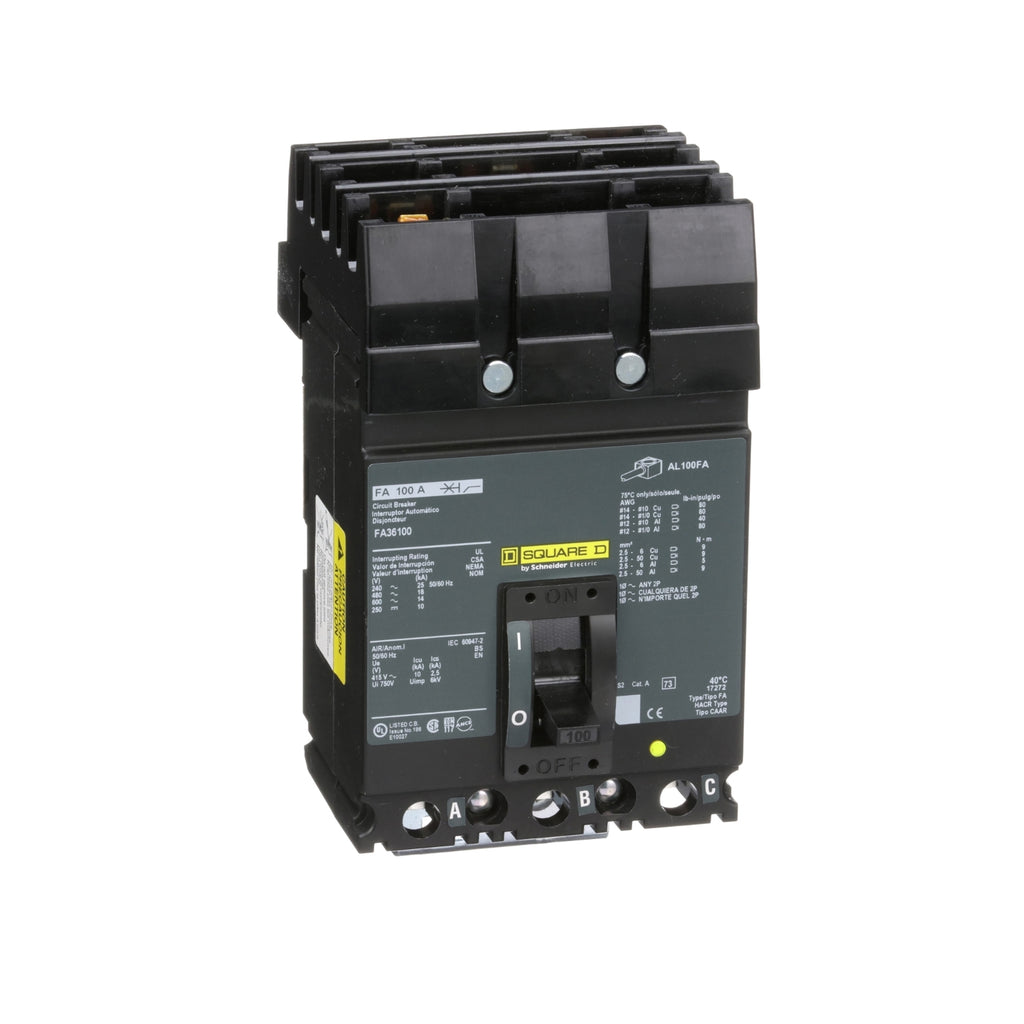

FA36100 - Schneider Electric - I-Line Plug-In 100 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
Square D, I-Line, type FA, 3P, 3PH, 100A, 600V, 14kA@600V, standard interrupting rating, 40 degree C, i-line style plug-in, thermal magnetic, molded case circuit breakers.
GENERAL SPECIFICATIONS
| Product or Component Type | Circuit breaker |
|---|---|
| Trip Unit Technology | Thermal-magnetic |
| Line Rated Current | 100 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | I-Line |
| Magnetic Hold Current | 900 A |
| Magnetic Tripping Current | 1700 A |
| Electrical connection | Lugs, load I-Line connection, line |
| Terminal identifier | AL50FA |
| Phase connection | ABC |
| Height | 6.4 in (162.6 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.13 in (104.90 mm) |
| Circuit breaker application | HACR rated |
PRODUCT DATASHEET
Schneider Electric_FA-Fframe-molded-case-circuit-breakers-and-switches_FA36100
