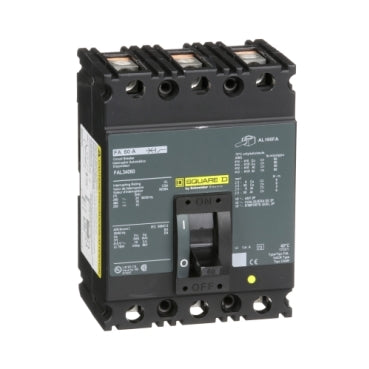

FAL34060 - Square D - FA 60A 480V 3 pole Circuit breaker
FAL34060 is a three-pole molded case circuit breaker from the FA series by Square D (Schneider Electric). It is designed for commercial and industrial three-phase power distribution and branch circuit protection, with a rated current of 60 amps and a maximum operating voltage of 480 volts AC.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Circuit breaker |
| Trip Unit Technology |
Thermal-magnetic |
Complementary
| Line Rated Current |
60 A |
| Number of Poles |
3P |
| Breaking capacity code |
A |
| Mounting Mode |
Unit mount |
| Magnetic Hold Current |
800 A |
| Magnetic Tripping Current |
1450 A |
| Electrical connection |
Lugs, load
Lugs, line |
| Terminal identifier |
AL100FA |
| Phase connection |
ABC |
| Height |
6.4 in (162.6 mm) |
| Width |
4.5 in (114.3 mm) |
| Depth |
4.13 in (104.90 mm) |
| Circuit breaker application |
HACR rated |
Environment
| Certifications |
UL Listed
CSA |
Ordering and shipping details
| Category |
US10DE200902 |
| Discount Schedule |
0DE2 |
| GTIN |
785901423386 |
| Returnability |
No |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
6.3 in (16.0 cm) |
| Package 1 Width |
6.2 in (15.7 cm) |
| Package 1 Length |
9.8 in (24.9 cm) |
| Package weight(Lbs) |
5.031 lb(US) (2.282 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
352 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
36.00 in (91.44 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
1770.560 lb(US) (803.112 kg) |
PRODUCT DATASHEET
FAL34060
