Description

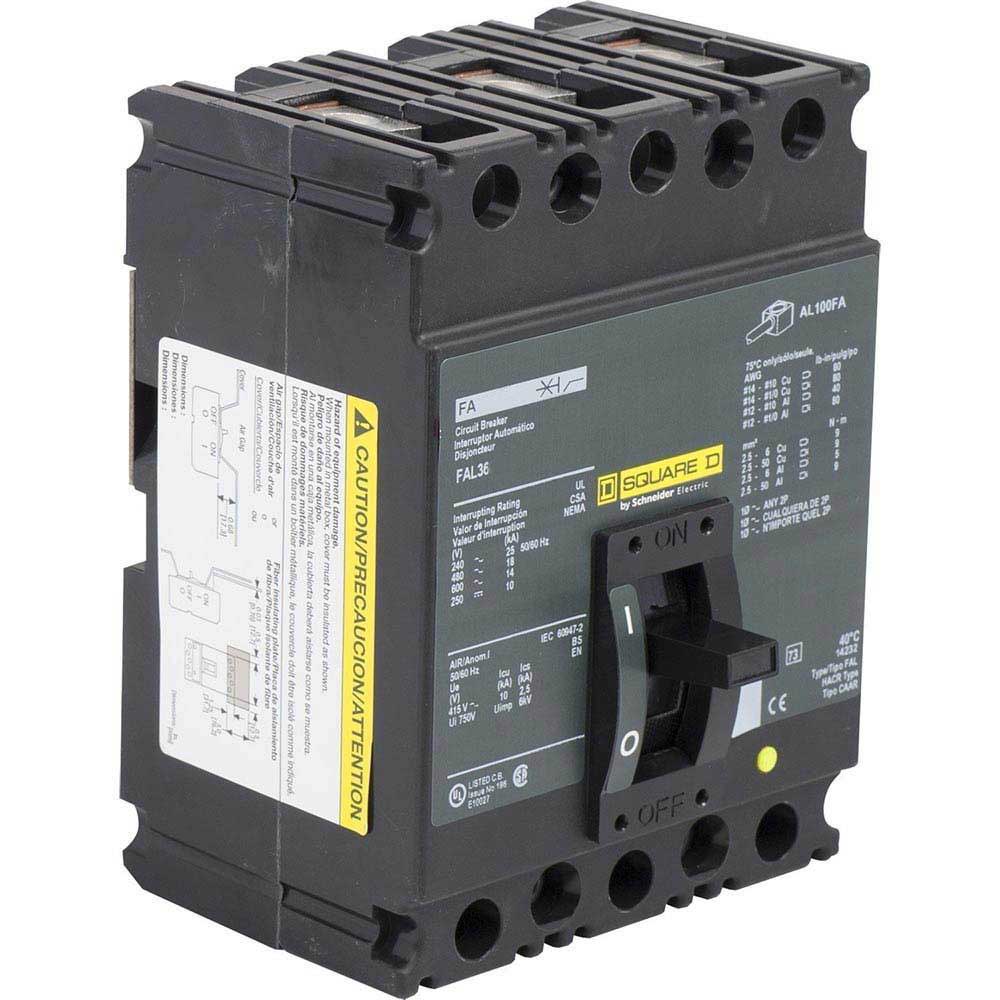

FAL36020 - Schneider Electric - Feed-Thru 20 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
Square D FAL Series type FAL circuit breaker, 3-pole, 3-phase, rated for 20 amps at 600 volts. It offers a standard interrupting capacity of 14kA at 600V and features a feed-thru design. Equipped with Long-Time and Instantaneous (LI) trip functions, it includes both line and load side lug terminals, and comes in a thermal magnetic molded case for reliable circuit protection.
GENERAL SPECIFICATIONS
| Product or Component Type | Circuit breaker |
|---|---|
| Trip Unit Technology | Thermal-magnetic |
| Line Rated Current | 20 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | Unit mount |
| Magnetic Hold Current | 275 A |
| Magnetic Tripping Current | 600 A |
| Electrical connection | Lugs, load Lugs, line |
| Terminal identifier | AL50FA |
| Phase connection | ABC |
| Height | 6.4 in (162.6 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 4.13 in (104.90 mm) |
| Circuit breaker application | HACR rated |
PRODUCT DATASHEET
Schneider Electric_FA-Fframe-molded-case-circuit-breakers-and-switches_FAL36020
