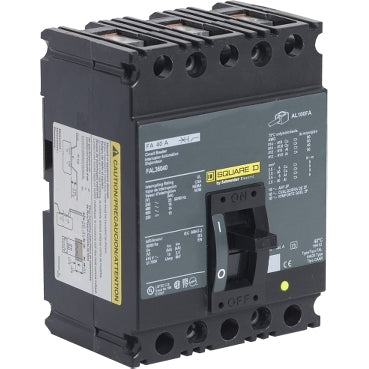

FAL36040 - Square D - FA 40A 600V 3 pole Circuit breaker
This is a Square D FAL36040 molded case circuit breaker designed for commercial and industrial three-phase power distribution and branch circuit protection. It provides reliable protection for electrical circuits against overload and short-circuit conditions.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Circuit breaker |
| Trip Unit Technology |
Thermal-magnetic |
Complementary
| Line Rated Current |
40 A |
| Number of Poles |
3P |
| Breaking capacity code |
A |
| Mounting Mode |
Unit mount |
| Magnetic Hold Current |
400 A |
| Magnetic Tripping Current |
850 A |
| Electrical connection |
Lugs, load
Lugs, line |
| Terminal identifier |
AL100FA |
| Phase connection |
ABC |
| Height |
6.4 in (162.6 mm) |
| Width |
4.5 in (114.3 mm) |
| Depth |
4.13 in (104.90 mm) |
| Circuit breaker application |
HACR rated |
Environment
| Certifications |
CSA
UL Listed |
Ordering and shipping details
| Category |
00903-FAL/FHL 600V |
| Discount Schedule |
DE2 |
| GTIN |
785901423669 |
| Returnability |
No |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
PRODUCT DATASHEET
FAL36040
