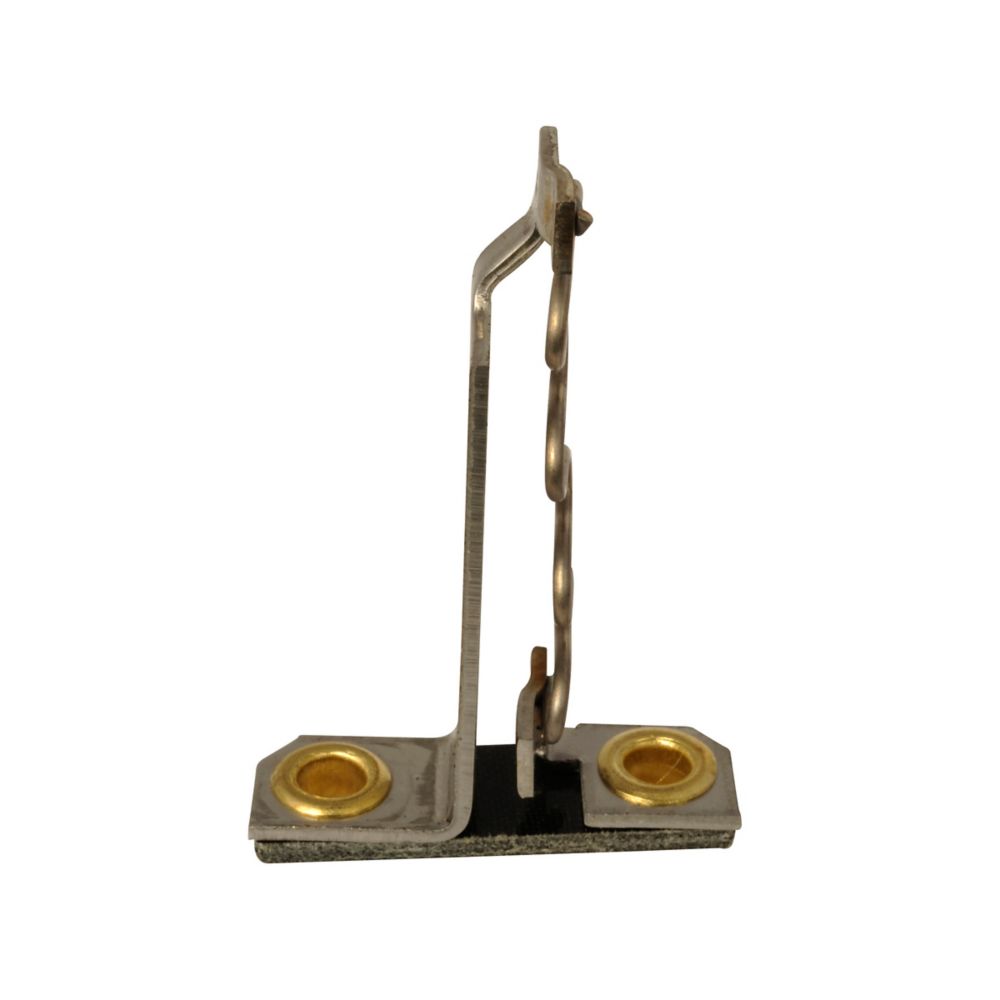

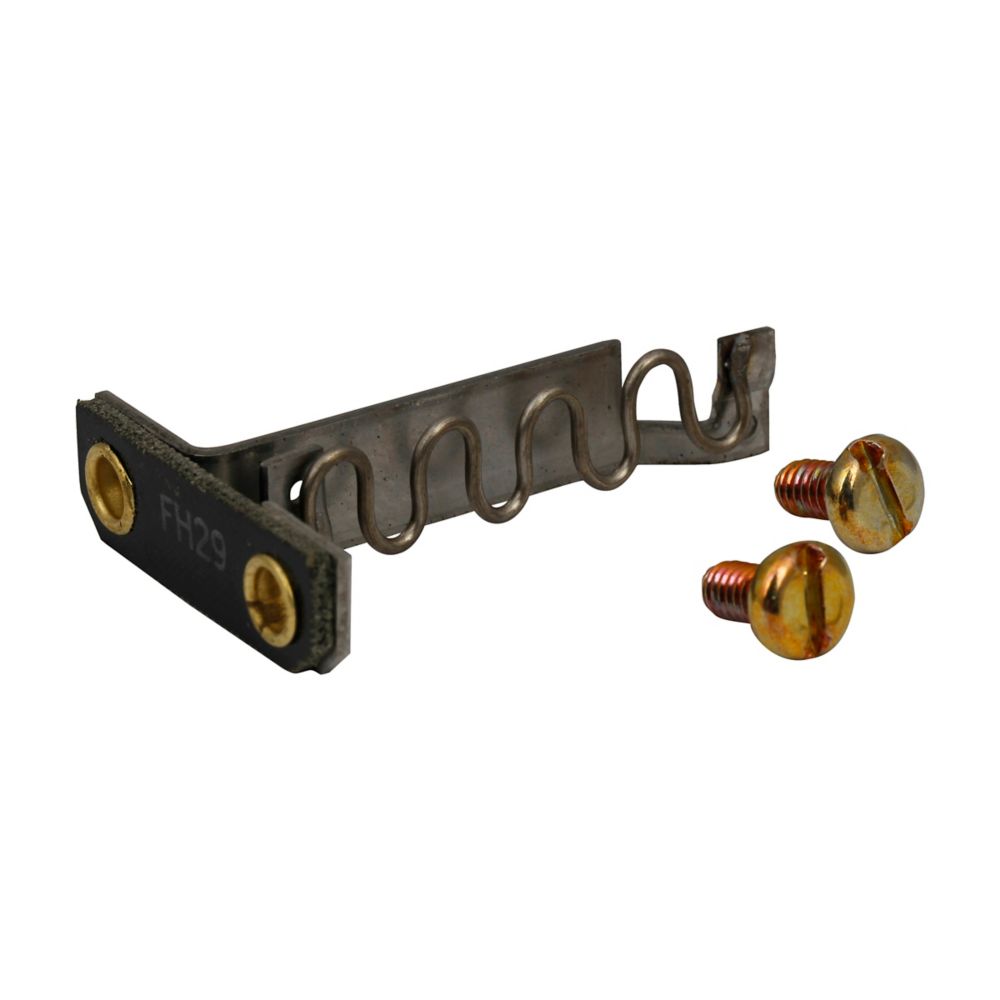

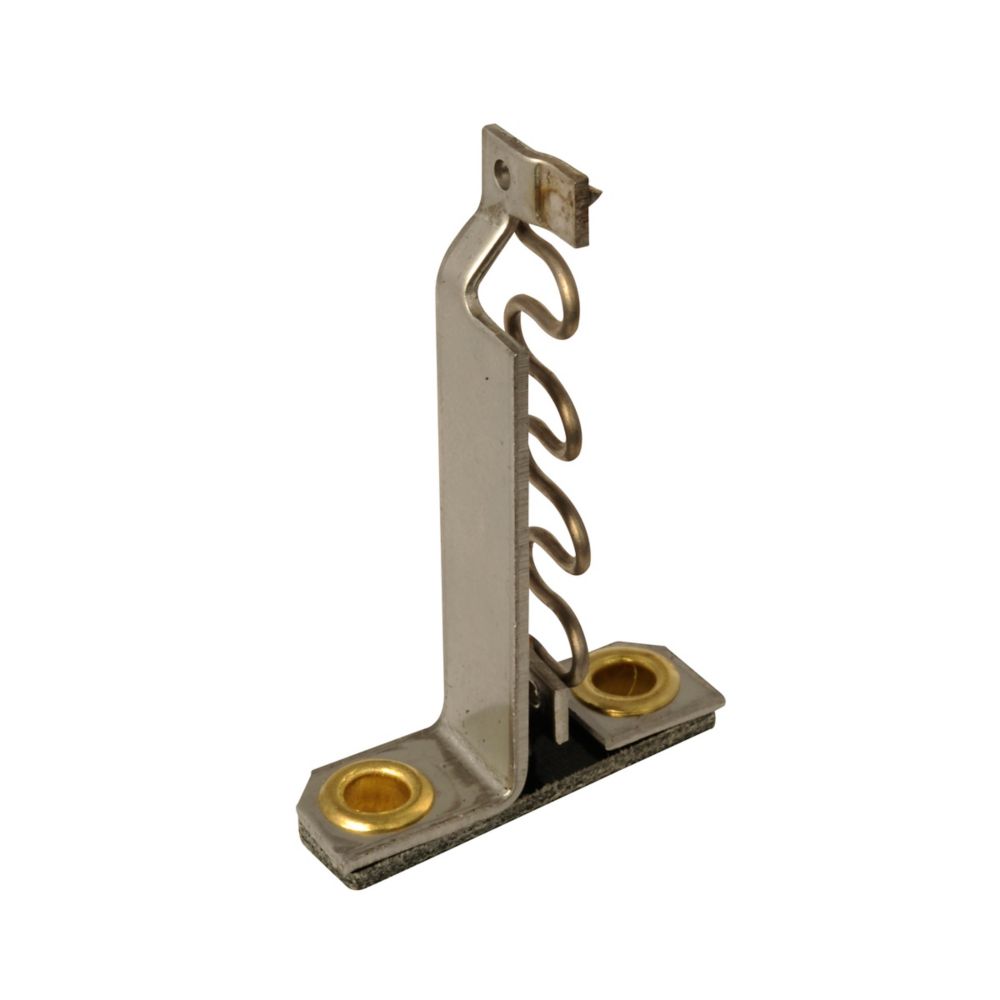

FH29 - Eaton Cutler Hammer - 3.87A A200/B100 Heater
The Eaton FH29 A200/B100 heater is designed to fit NEMA Starter Sizes 0, 1, and 2, offering ambient full-load current coverage from approximately 3.12 to 3.42 A and 3.61 to 3.95 A, with non-compensated ranges near 2.90 to 3.17 A and 3.54 to 3.87 A. Engineered for reliable motor protection, it delivers both thermal and fast-trip response using Type A and B overload relays. Compact in size (around 2.1" × 1.3" × 0.8"), the FH29 supports efficient, space-conscious installations.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH29
|
| UPC |
786678629742
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH29
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 3.12-3.42, 3.61-3.95 A, Non-Comp 2.90-3.17, 3.54-3.87 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
