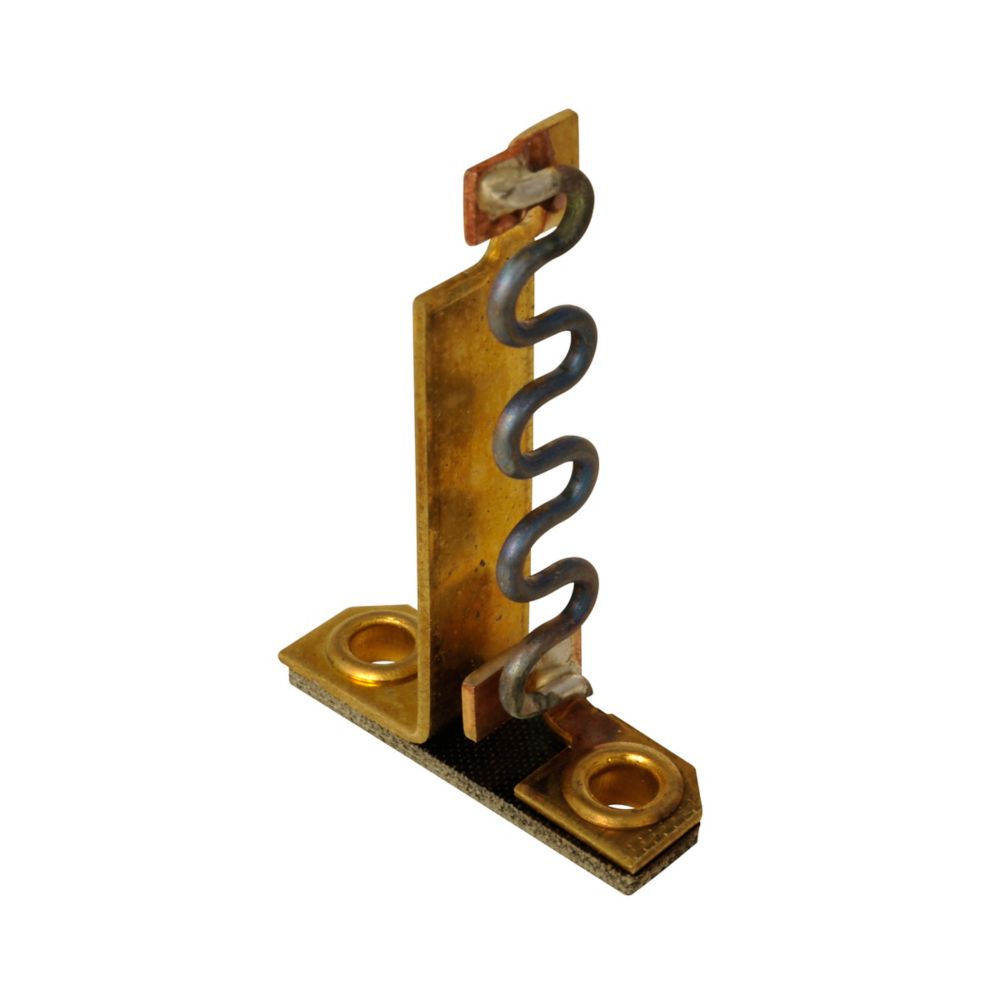

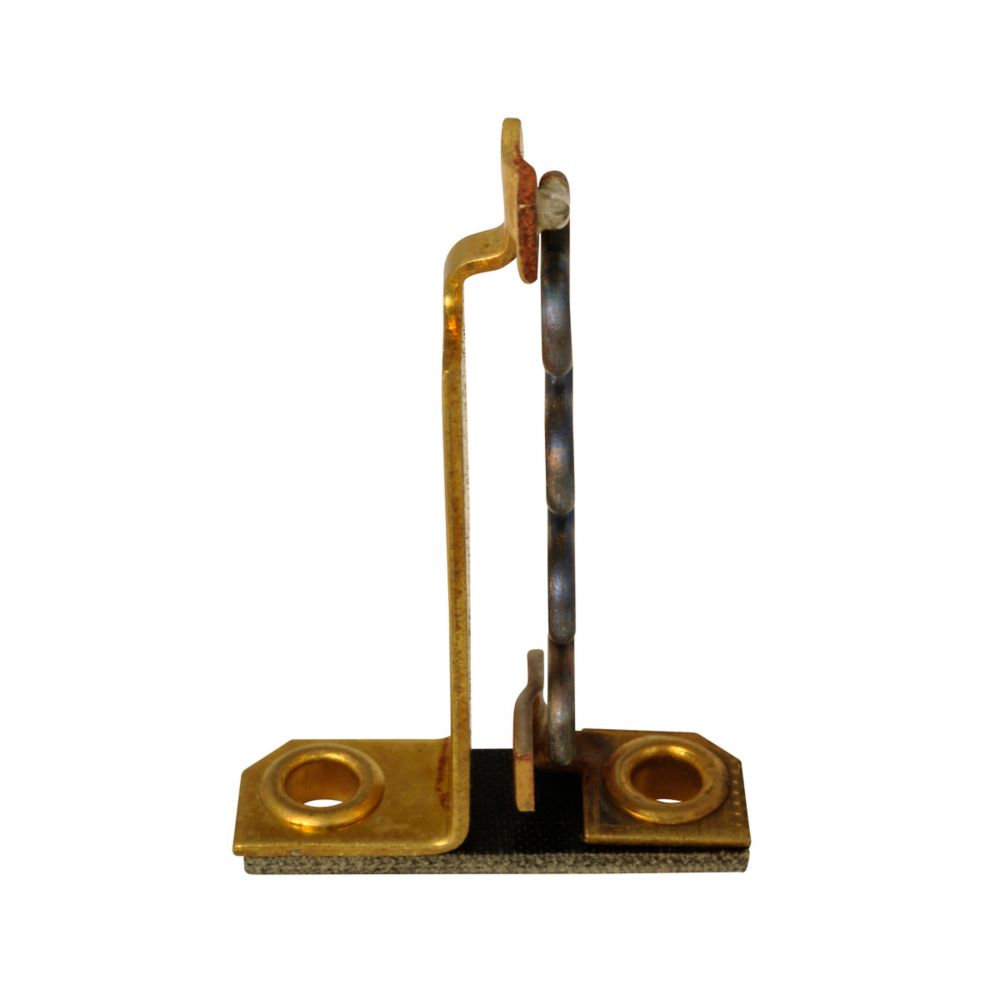

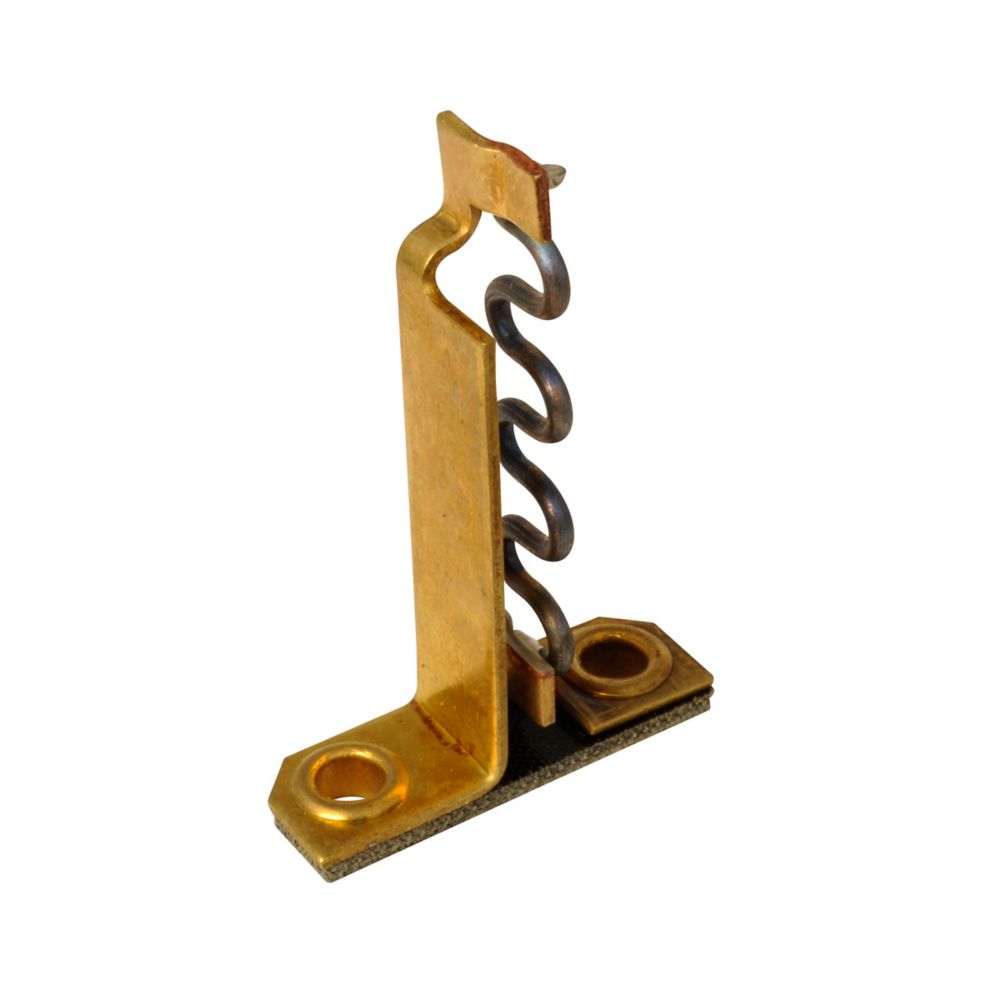

FH36 - Eaton Cutler Hammer - 7.3A A200/B100 Heater
The Eaton FH36 heater fits A200/B100 starter models (Sizes 0–2) and covers ambient full-load current ranges from about 6.0–6.4 A and 6.9–7.5 A, with non-compensated spans of 5.6–5.9 A and 6.7–7.3 A. It offers dependable overload protection using Type A and B relays with thermal and fast-trip mechanisms. The FH36 retains the series’ compact NEMA build for consistent motor safeguarding.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH36
|
| UPC |
786678629957
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH36
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Sizes 0,1, and 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Sizes 0,1, and 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 6.0-6.4, 6.9-7.5 A, Non-Comp 5.6-5.9, 6.7-7.3 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
