Description

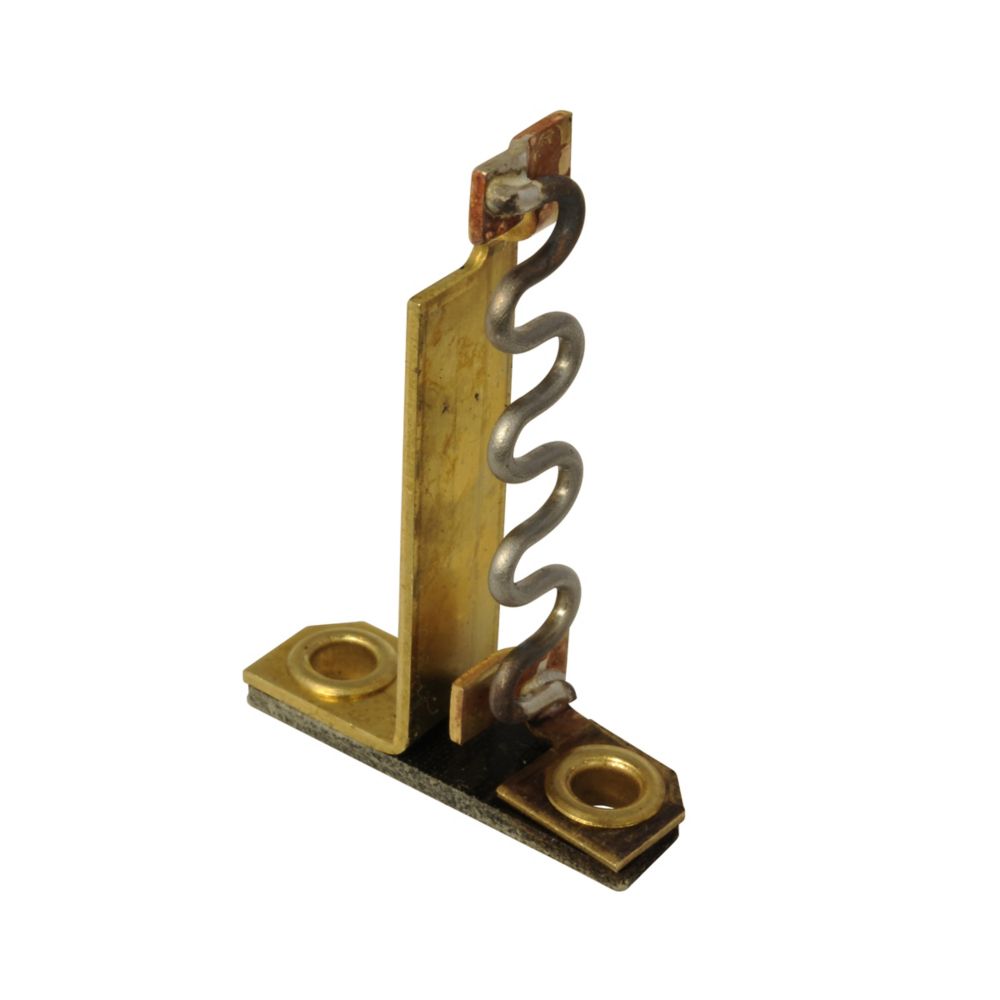

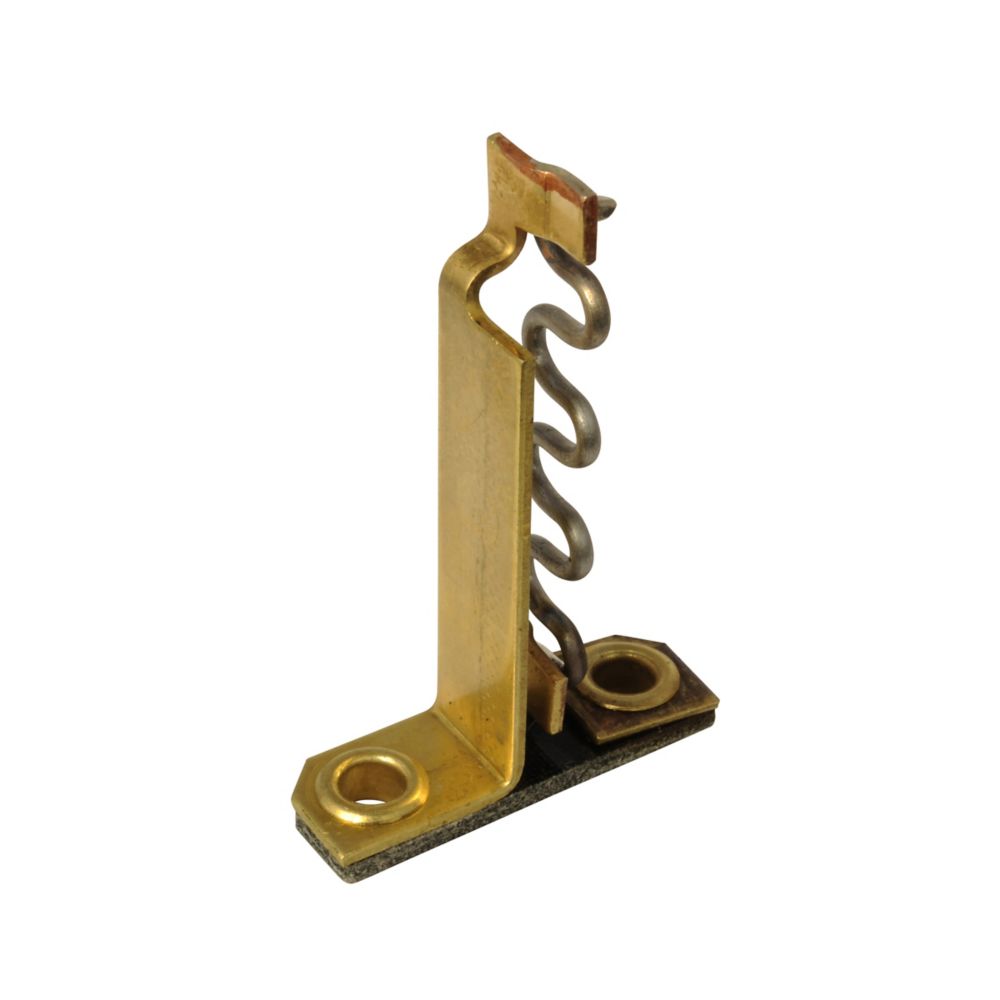

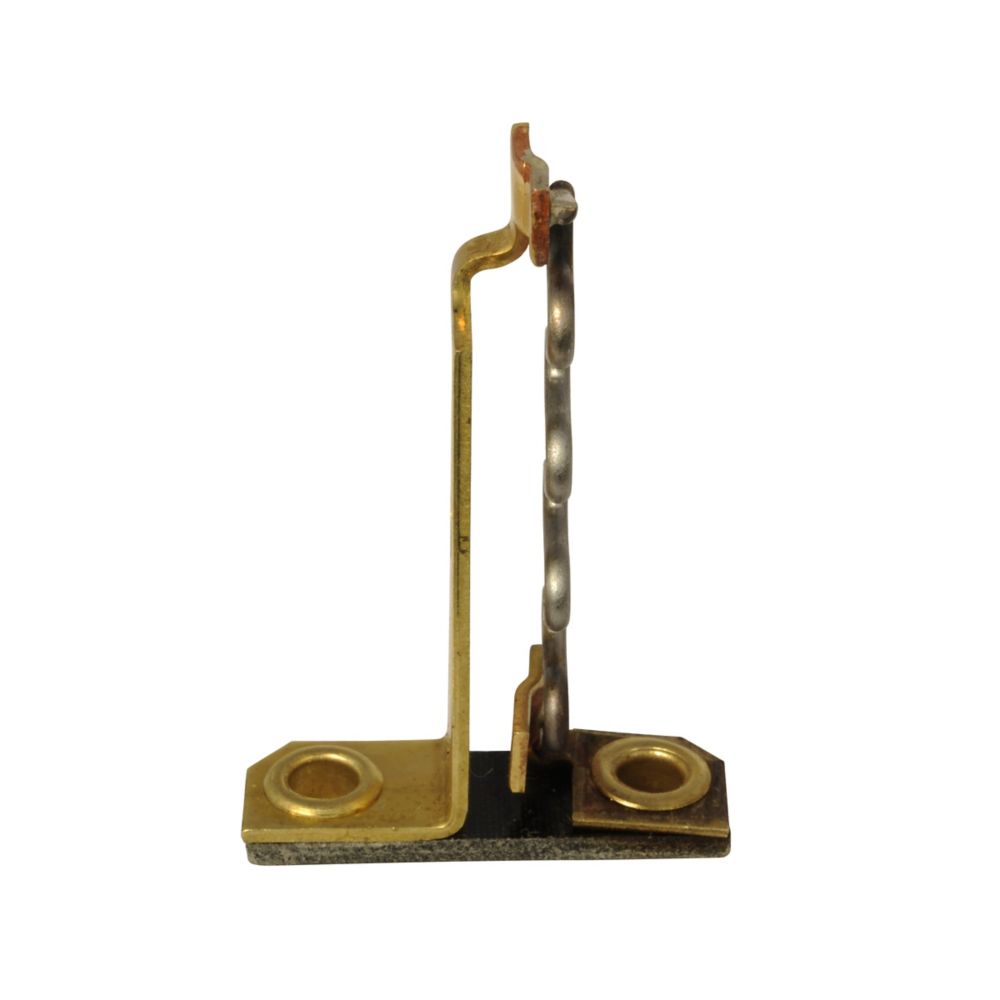

FH40 - Eaton Cutler Hammer - 10.5A A200/B100 Heater
Eaton A200/B100 heater, Used with Starter Sizes 0,1, and 2, A200/B100 Heater, NEMA, Ambient 8.6-9.4, 10.0-10.8A, Non-Comp 8.0-8.7, 9.8-10.5A, Used with Starter Sizes 0,1, and 2, Type A and B, Thermal and Fast Trip.
GENERAL SPECIFICATIONS
| Product Name | Eaton A200/B100 heater |
| Catalog Number | FH40 |
| UPC | 786678670065 |
| Product Length/Depth | 2.1 in |
| Product Height | 0.8 in |
| Product Width | 1.3 in |
| Product Weight | 0.03 lb |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters |
| Global Catalog | FH40 |
| Product Type | Heater |
PRODUCT SPECIFICATIONS
| Special features | Used with Starter Sizes 0,1, and 2 |
| Type | A200/B100 Heater |
| Used with | Used with Starter Sizes 0,1, and 2 |
| Design | NEMA |
| Full load current range | Ambient 8.6-9.4, 10.0-10.8 A, Non-Comp 8.0-8.7, 9.8-10.5 A |
| Overload relay | Type A and B |
| Trip type | Thermal and fast trip |
