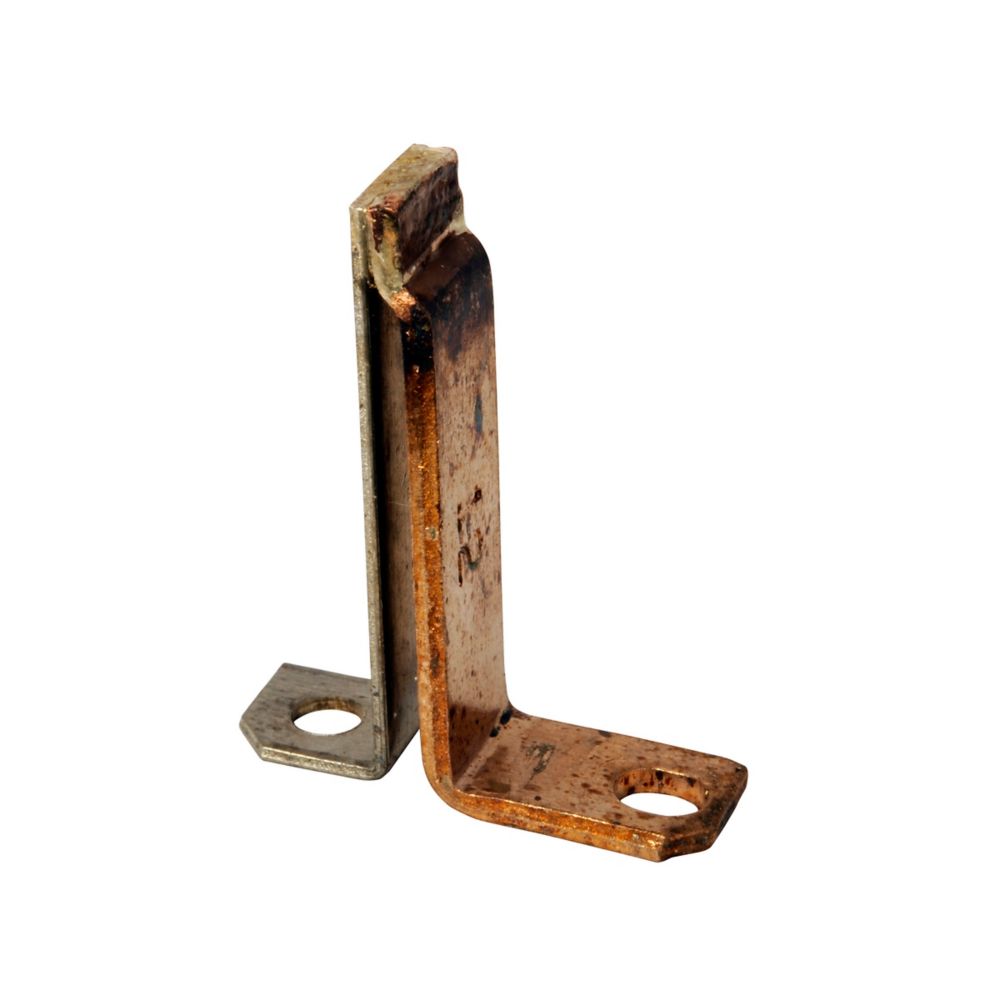

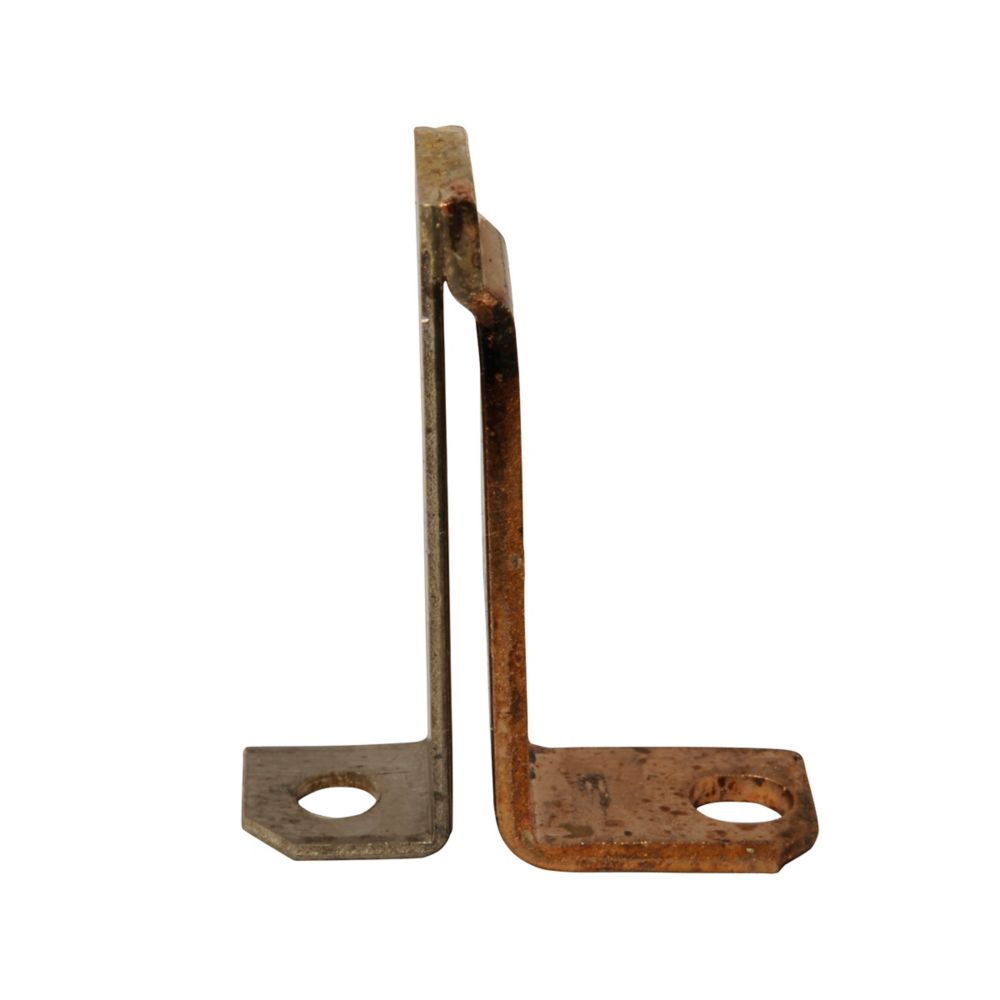

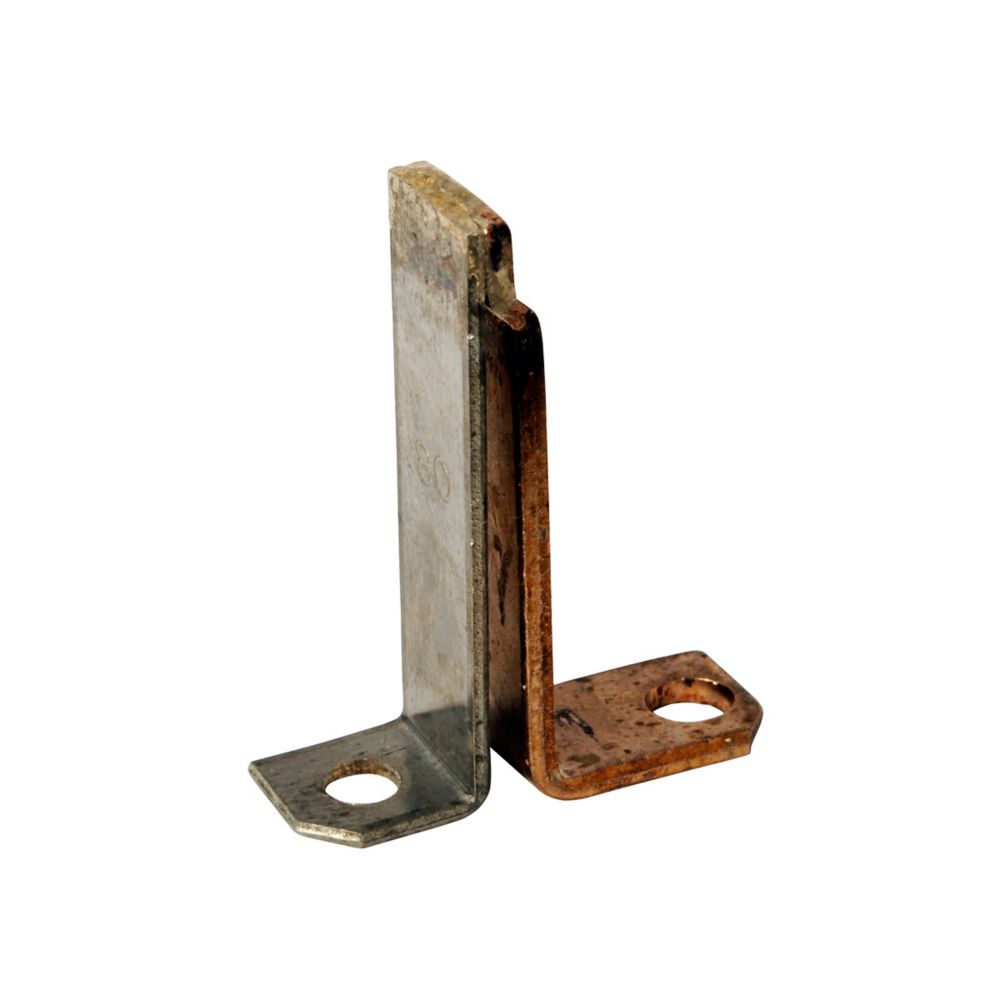

FH53 - Eaton Cutler Hammer - 34.5A A200/B100 Heater
The Eaton FH53 for NEMA Starter Size 2 supports ambient full-load currents of 28.8–31.4 A and 33.4–36.4 A, with non-compensated ranges around 26.7–29.1 A and 31.5–34.5 A. It protects motors via Type A and B overload relays with both thermal and fast-trip functions. Compact and dependable, FH53 ensures precise motor starter integration.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH53
|
| UPC |
786678670454
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH53
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Size 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Size 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 28.8-31.4, 33.4-36.4 A, Non-Comp 26.7-29.1, 31.5-34.5 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
