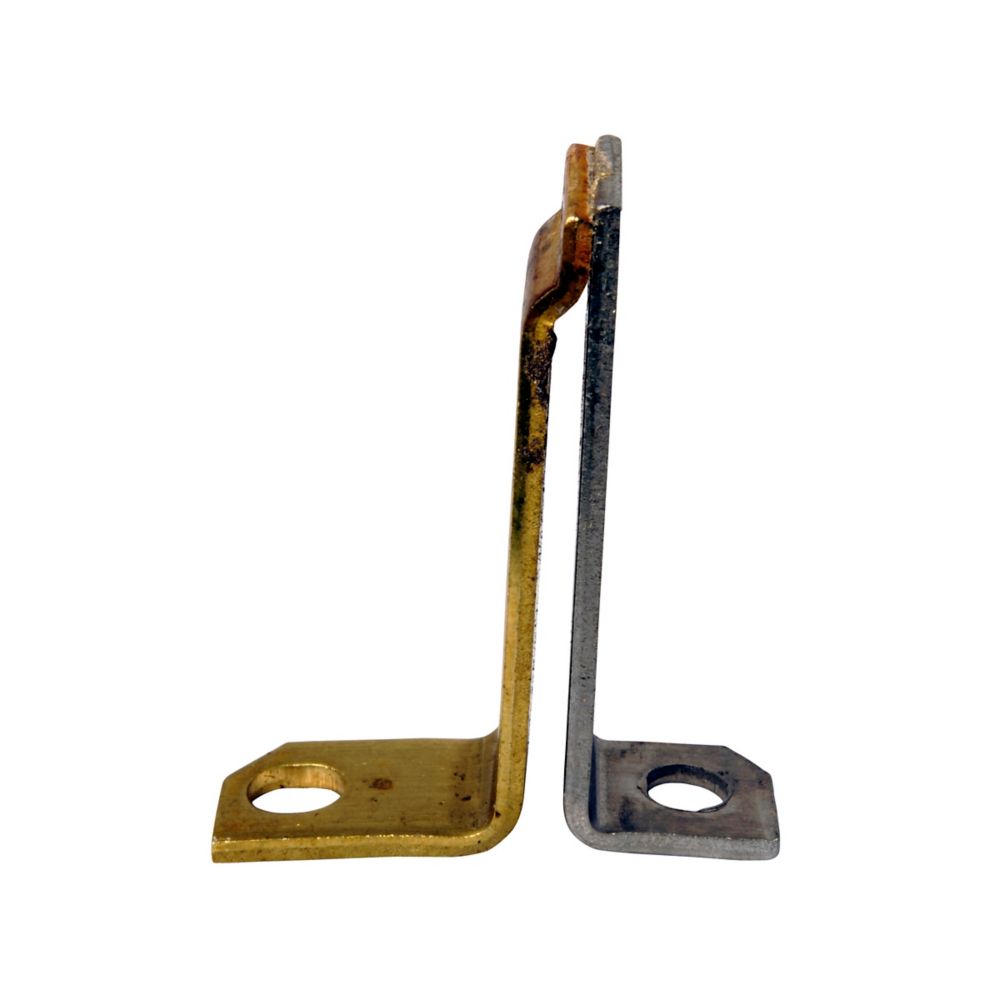

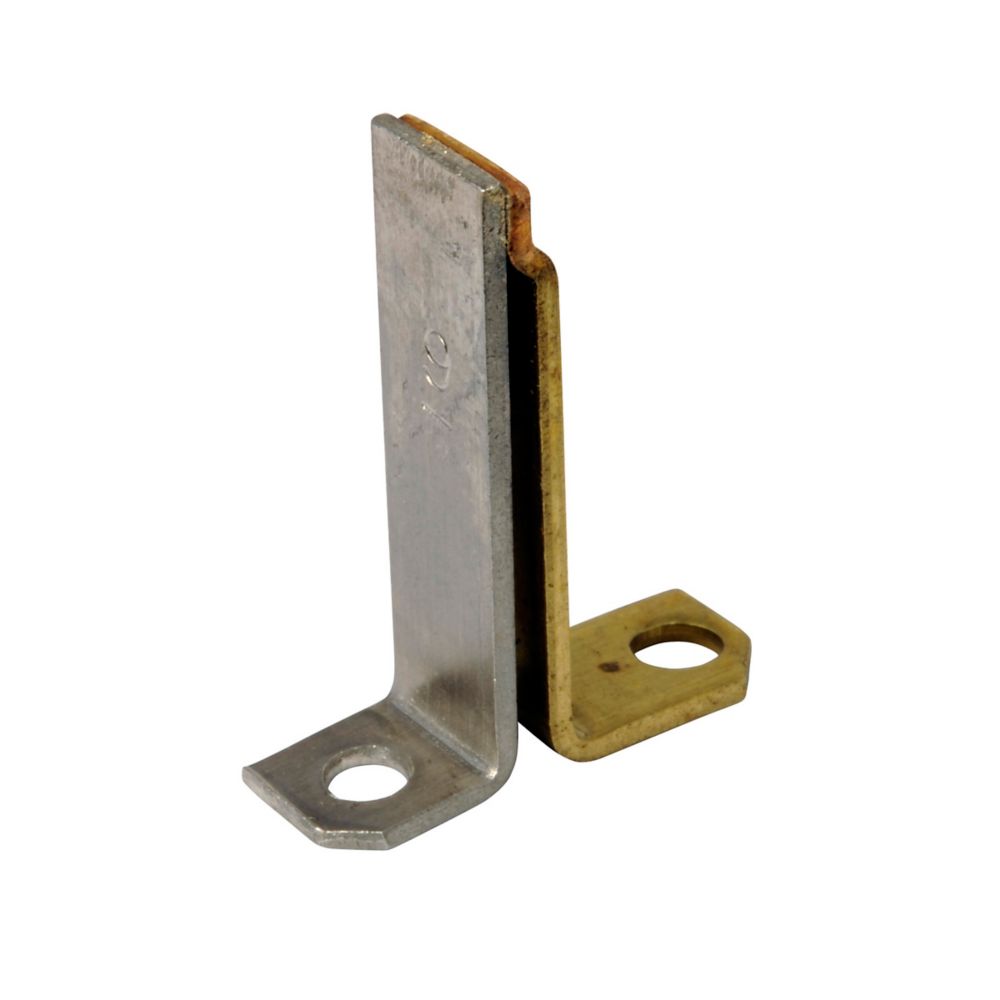

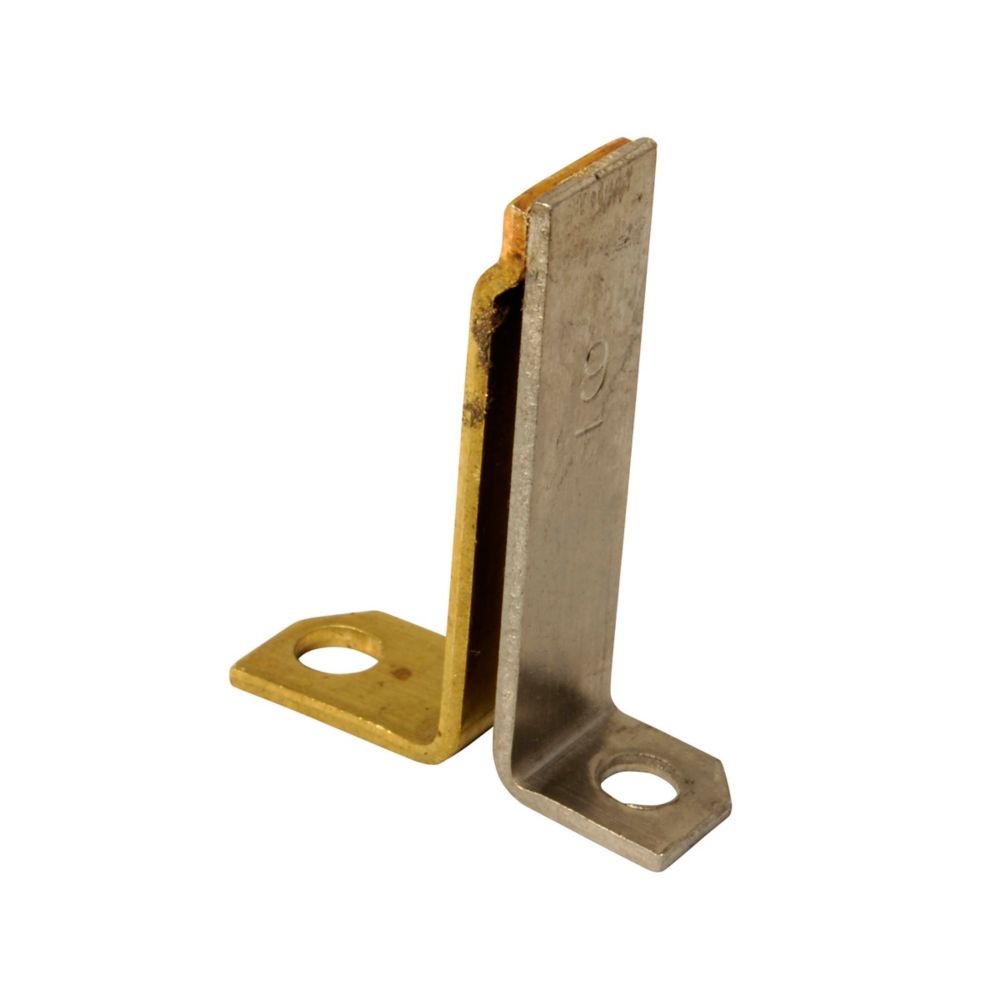

FH54 - Eaton Cutler Hammer - 37.9A A200/B100 Heater
The Eaton FH54, designed for NEMA Starter Size 2, provides ambient full-load coverage of 31.5–34.5 A and 36.5–39.9 A, with non-compensated ranges of 29.2–32 A and 34.6–37.9 A. It uses Type A and B relay protection with thermal and fast-trip capability. Compact, UL-listed, and CSA-certified, FH54 continues the series’ theme of reliable performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH54
|
| UPC |
786678670485
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH54
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Size 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Size 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 31.5-34.5, 36.5-39.9 A, Non-Comp 29.2-32, 34.6-37.9 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
