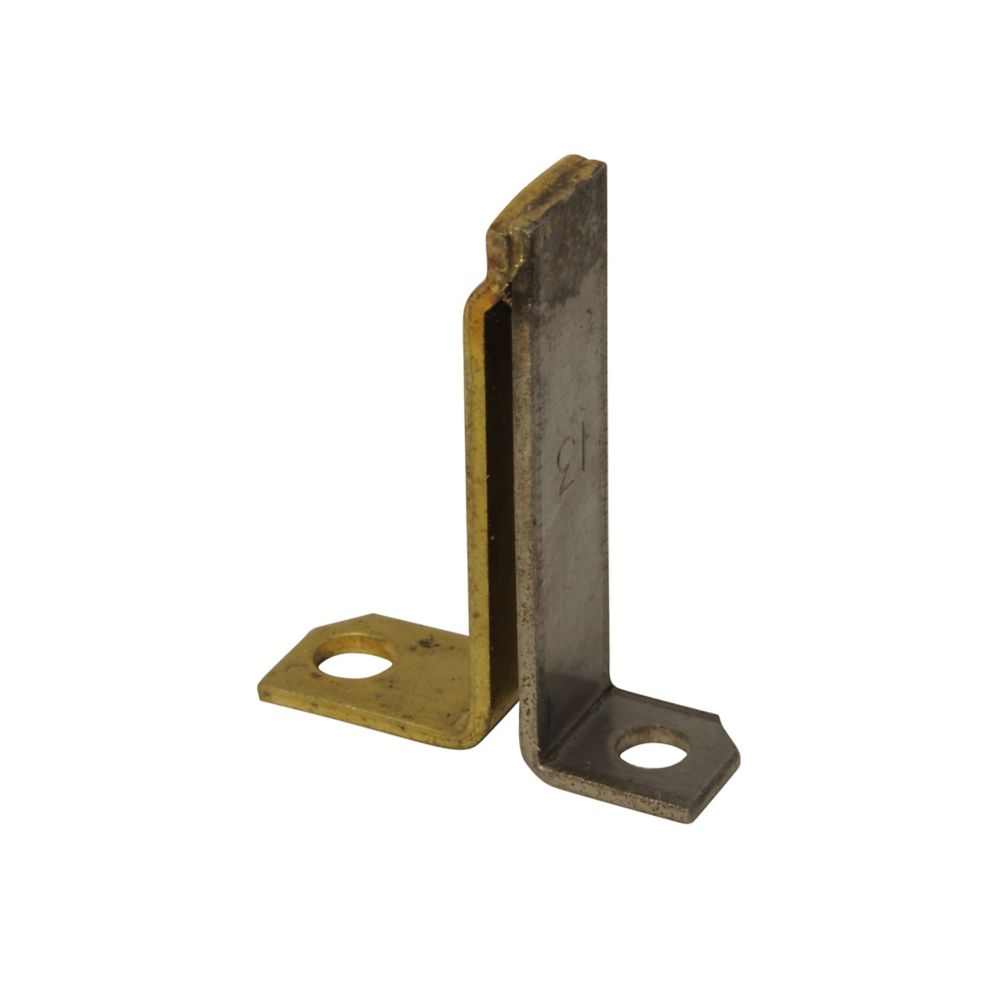

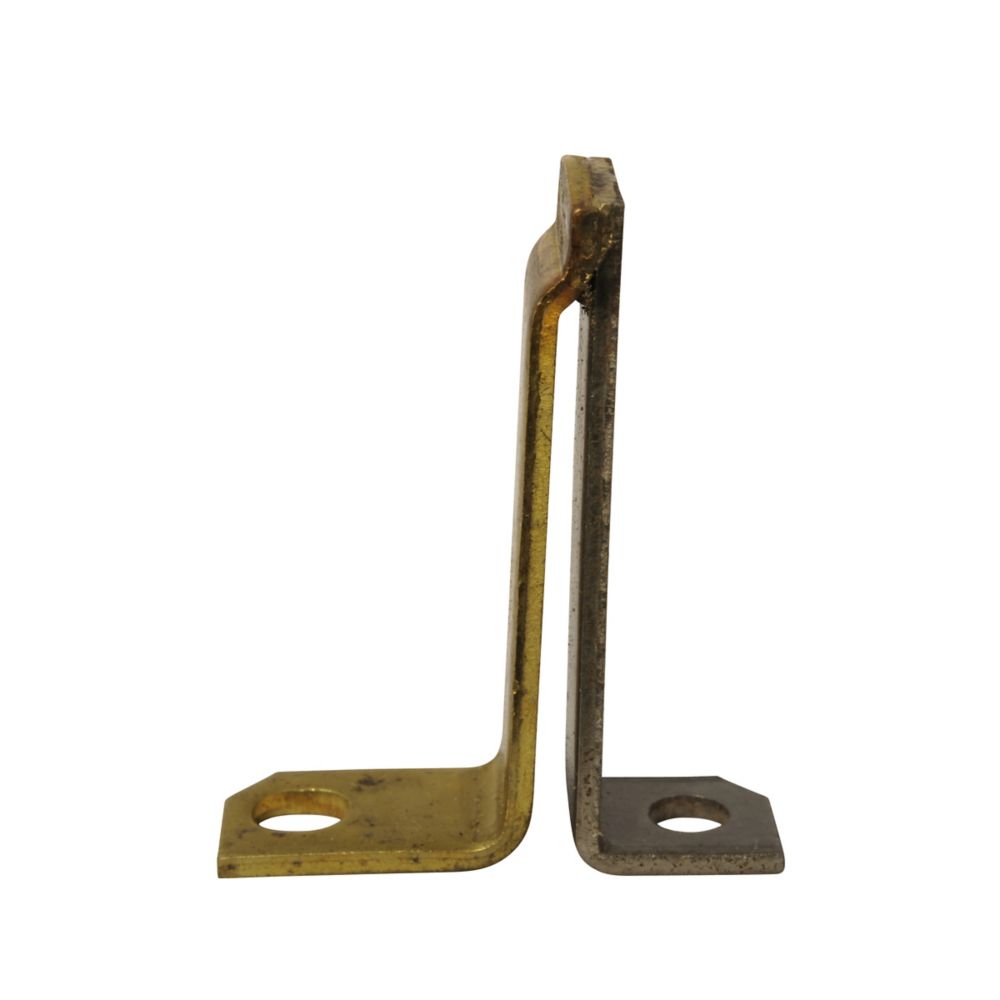

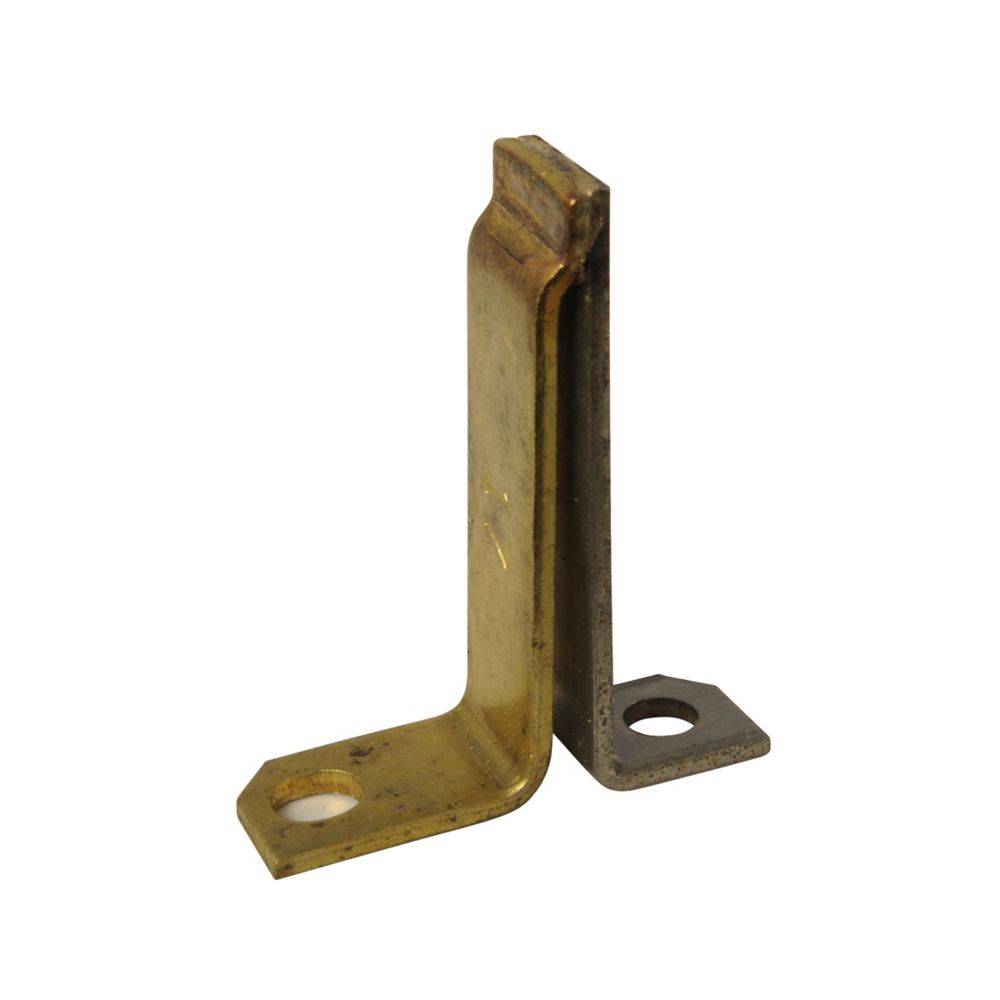

FH55 - Eaton Cutler Hammer - 41.9A A200/B100 Heater
The Eaton FH55 for NEMA Starter Size 2 offers ambient full-load current ratings around 0.25 - 0.27 A and 0.29 - 0.31 A though this seems atypically low and may involve a typo—with non-compensated ranges of 32.1–35.2 A and 38.0–41.9 A. It delivers motor overload protection through Type A and B relays with both thermal and fast-trip functions. Compact and certified for industrial use.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH55
|
| UPC |
786678670515
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.03 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH55
|
PRODUCT SPECIFICATIONS
| Special features |
Used with Starter Size 2
|
| Type |
A200/B100 Heater
|
| Used with |
Used with Starter Size 2
|
| Design |
NEMA
|
| Full load current range |
Ambient 0.25-0.27, 0.29-0.31 A, Non-Comp 320.1-350.2, 380.0-410.9 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
