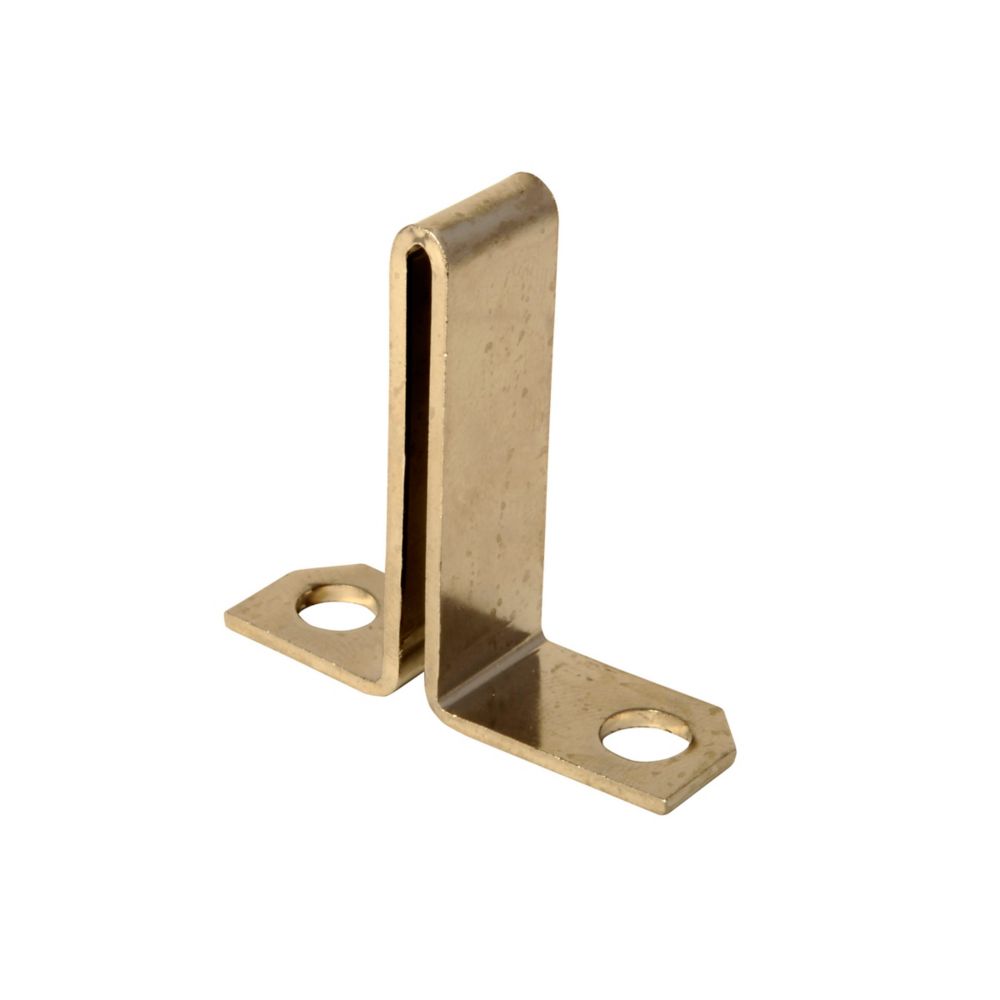

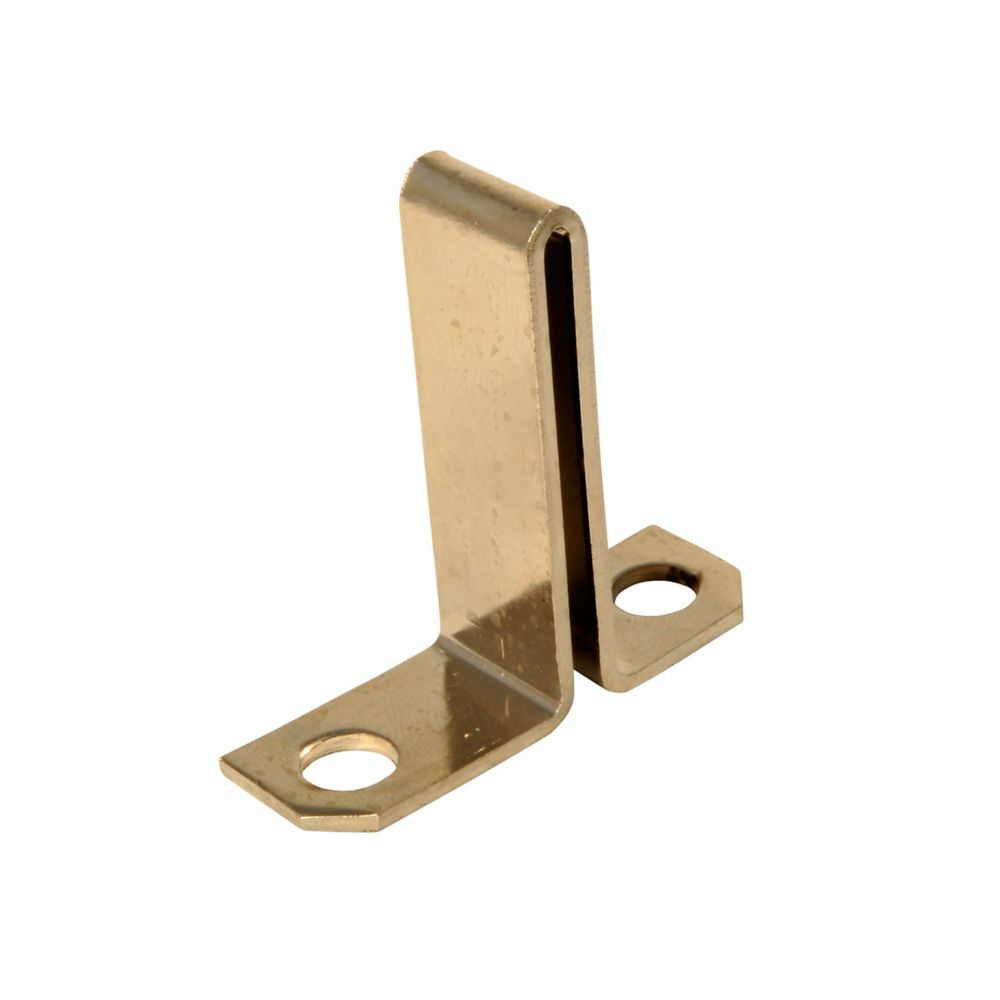

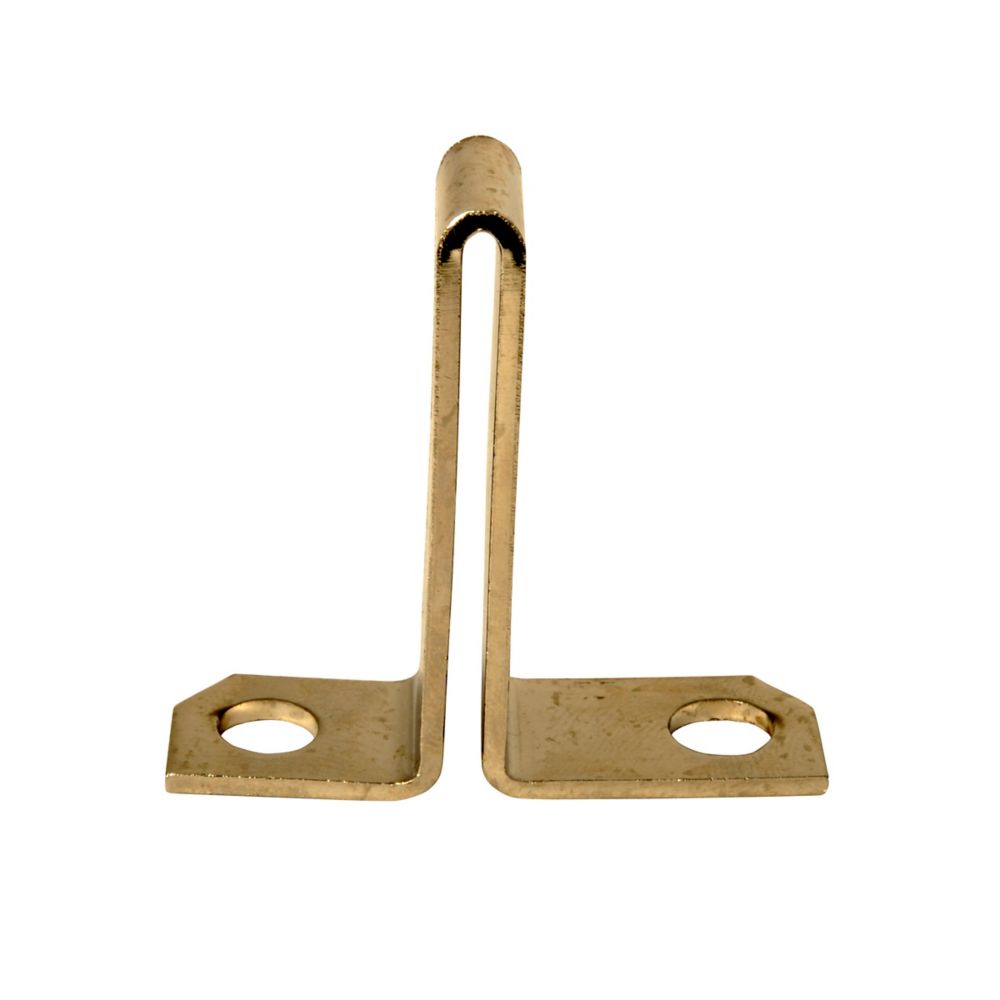

FH90 - Eaton Cutler Hammer - 110A A200/B100 heater
The Eaton FH90 A200/B100 heater supports NEMA Starter Sizes 4 (3-phase only), accommodating ambient full-load currents of 102–110 A and non-compensated values of 92–99 A. It delivers reliable overload protection via Type A and B relays, with thermal and fast-trip responsiveness. This compact, UL-listed and CSA-certified unit is well-suited for high-current motor starter demands.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH90
|
| UPC |
786678671147
|
| Product Length/Depth |
2.3 in
|
| Product Height |
1.3 in
|
| Product Width |
1.9 in
|
| Product Weight |
0.07 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH90
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 102-110 A, Non-Comp 92-99 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
PRODUCT DATASHEET
