| SKU |

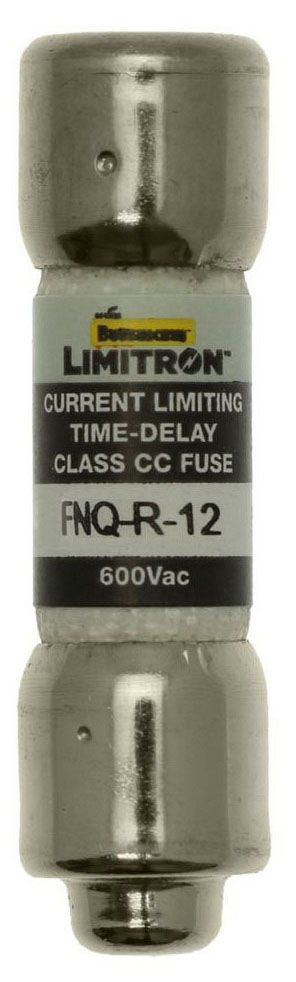

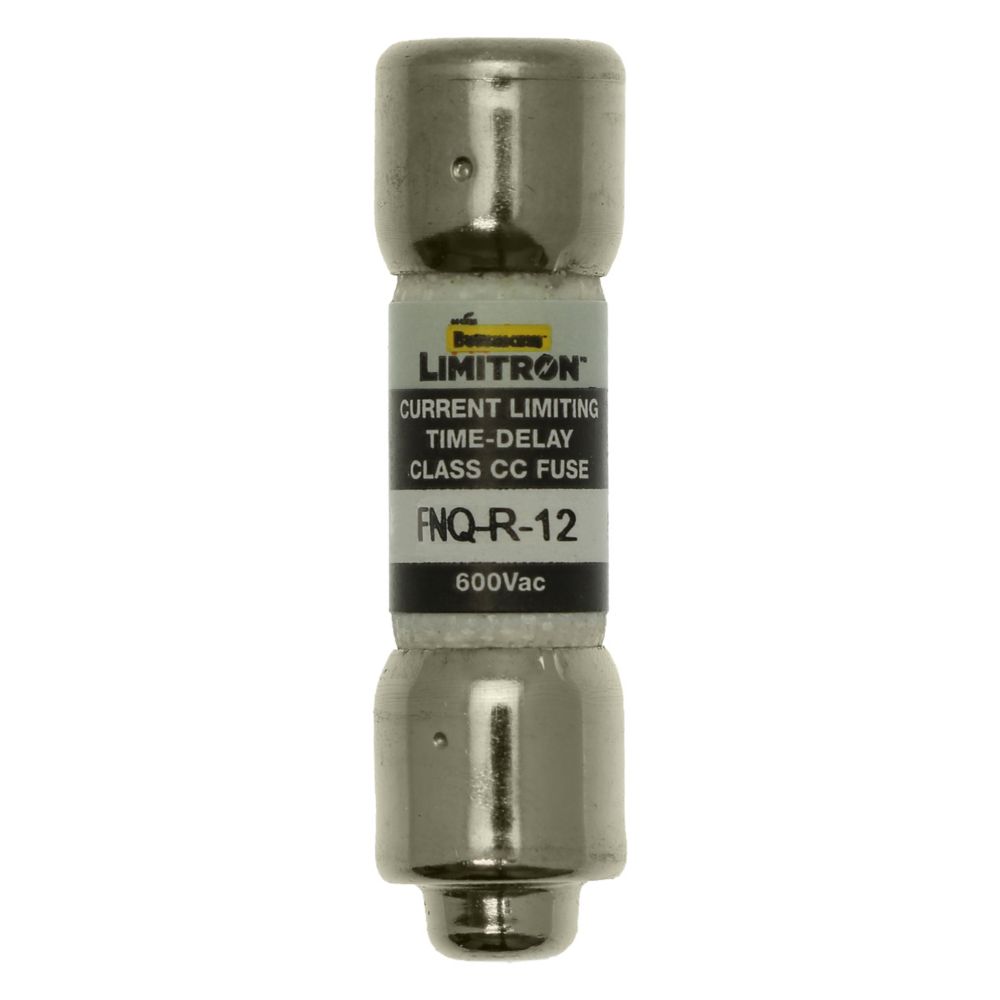

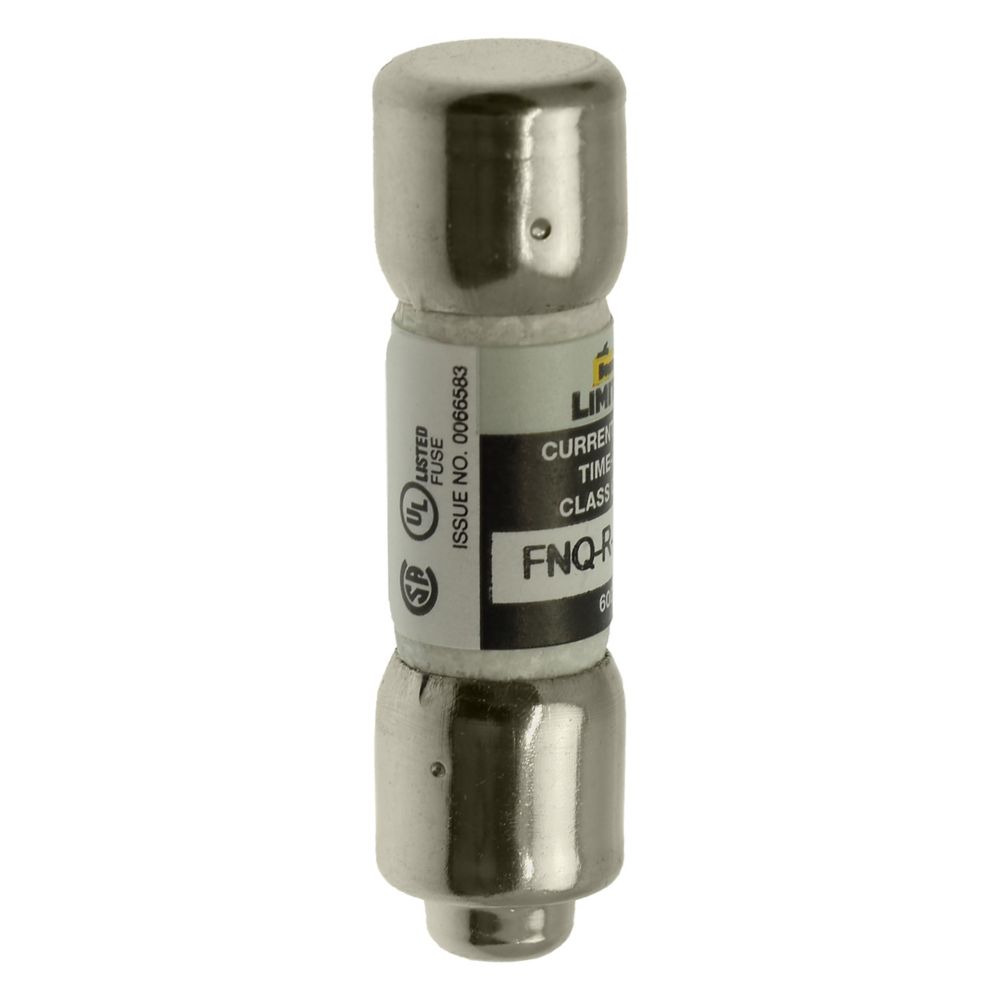

FNQ-R-12 CLASS CC TIME DELAY REJECTION FUSE |
| descriptionLabel |
Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 12 A, rejection style fuse, interrupting rating of 200kA at 600Vac |
| Product Name |
Eaton Bussmann series FNQ-R fuse |
| Catalog Number |
FNQ-R-12 |
| Model Code |
CLASS CC TIME DELAY REJECTION FUSE |
| UPC |
051712497107 |
| EAN |
5027590092265 |
| Product Length/Depth |
1.5 in |
| Product Height |
0.41 in |
| Product Width |
0.41 in |
| Product Weight |
0.015 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Product Type |
Fuse |
| Amperage Rating |
12 A |
| Class |
Class CC |
| Interrupt rating |
200 kAIC |
| Fuse indicator |
Non-indicating |
| Connection |
Ferrule end x ferrule end |
| Response time |
12 sec at 200% |
| Material |
Melamine tube |
| Packaging type |
Standard |
| Voltage rating |
600 V |
| Type |
Current-limiting high inrush time-delay fuse |
| Special features |
Rejection style |
| Application |
Line protection, small control transformers, industrial control, branch circuits |
