Description

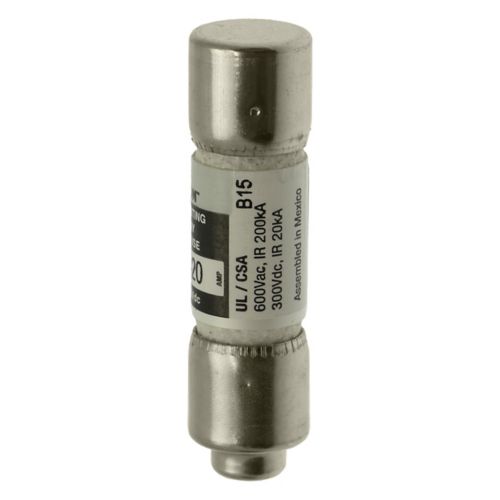

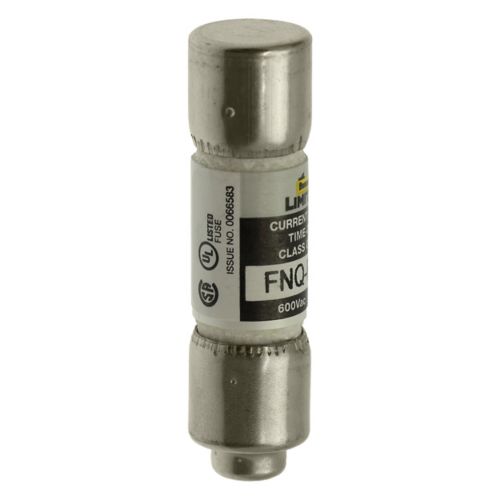

FNQ-R-20 - Eaton Bussmann Series - FNQ-R Fuse
Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 20 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20 kA at 300 Vdc
GENERAL SPECIFICATIONS
| Product Name | Eaton Bussmann series FNQ-R fuse |
| Catalog Number | FNQ-R-20 |
| UPC | 051712497121 |
| EAN | 5027590449717 |
| Product Length/Depth | 1.5 in |
| Product Height | 0.41 in |
| Product Width | 0.41 in |
| Product Weight | 0.015 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Product Type | Fuse |
