BussmannSKU: BUSFNQ-R-3/4
Price:
$12.76
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

FNQ-R-3/4 - Eaton Bussmann Series - Eaton Bussmann series FNQ-R fuse

SKU FNQ-R-3/4

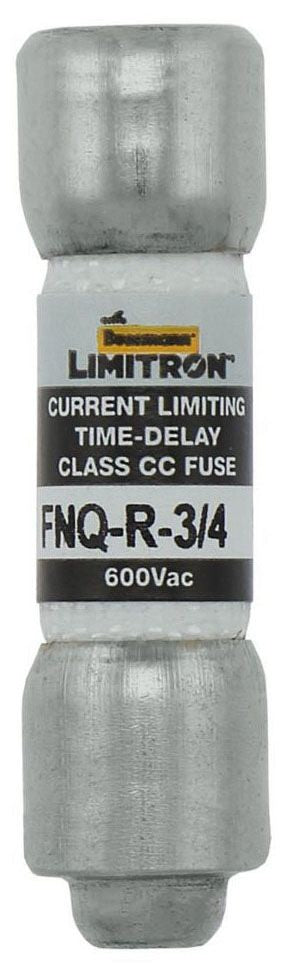

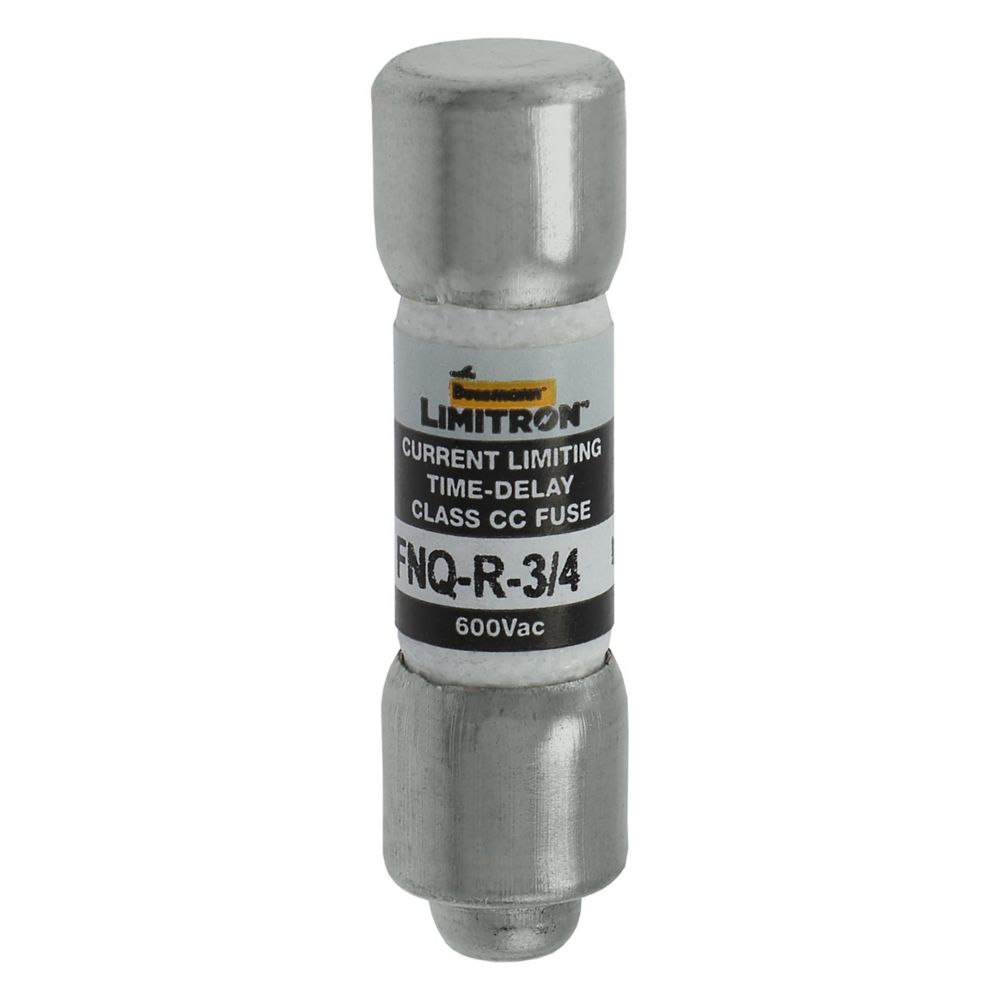

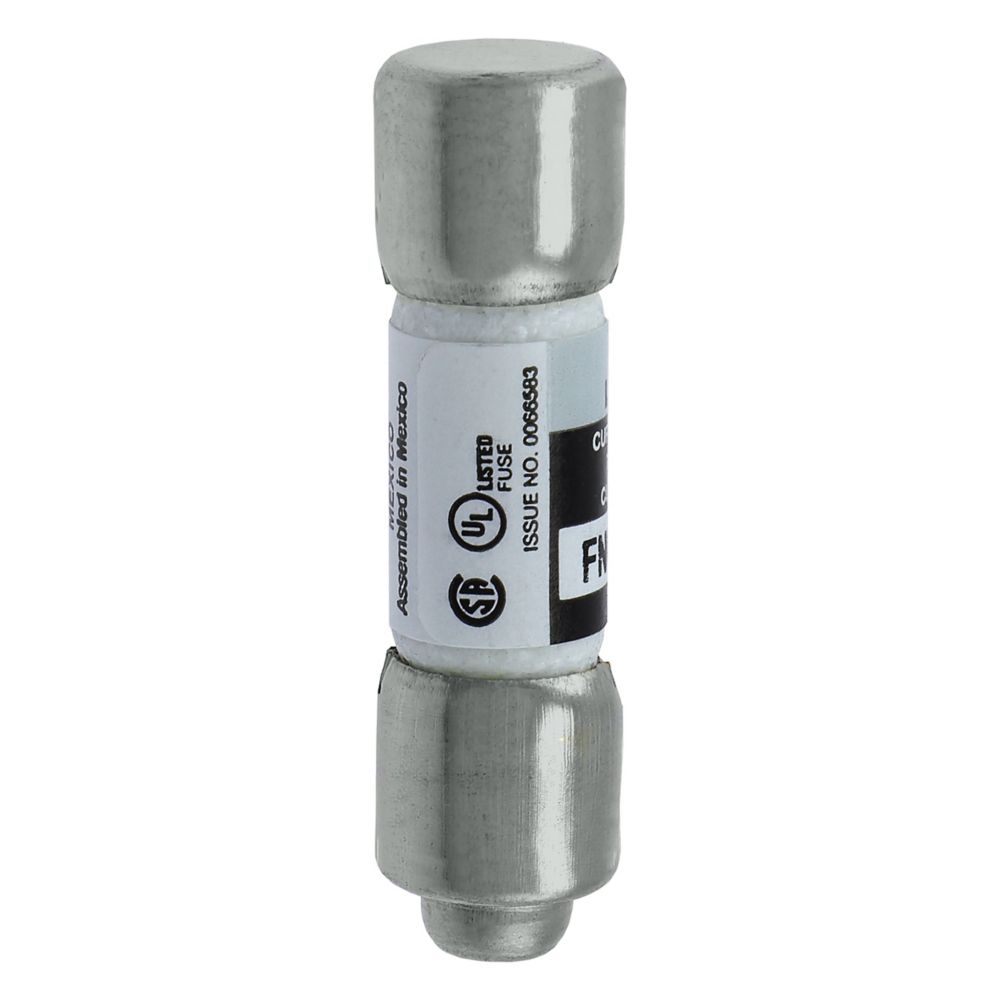

descriptionLabel Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 0.75 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name Eaton Bussmann series FNQ-R fuse
Catalog Number FNQ-R-3/4
UPC 051712496933
Product Length/Depth 1.5 in
Product Height 0.41 in
Product Width 0.41 in
Product Weight 0.15 lb
Warranty Not Applicable
Compliances RoHS Compliant CE Marked
Product Type Fuse
Amperage Rating 0.75 A
Class Class CC
Interrupt rating 200 kAIC
Fuse indicator Non-indicating
Connection Ferrule end x ferrule end
Response time 12 sec at 200%
Material Melamine tube
Packaging type Standard
Voltage rating 600 V
Type Current-limiting high inrush time-delay fuse
Special features Rejection style
Application Line protection, small control transformers, industrial control, branch circuits
