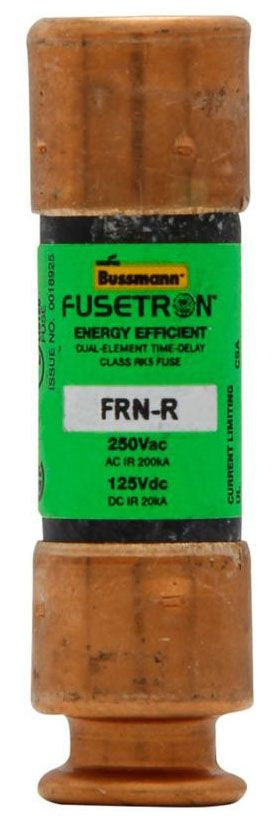

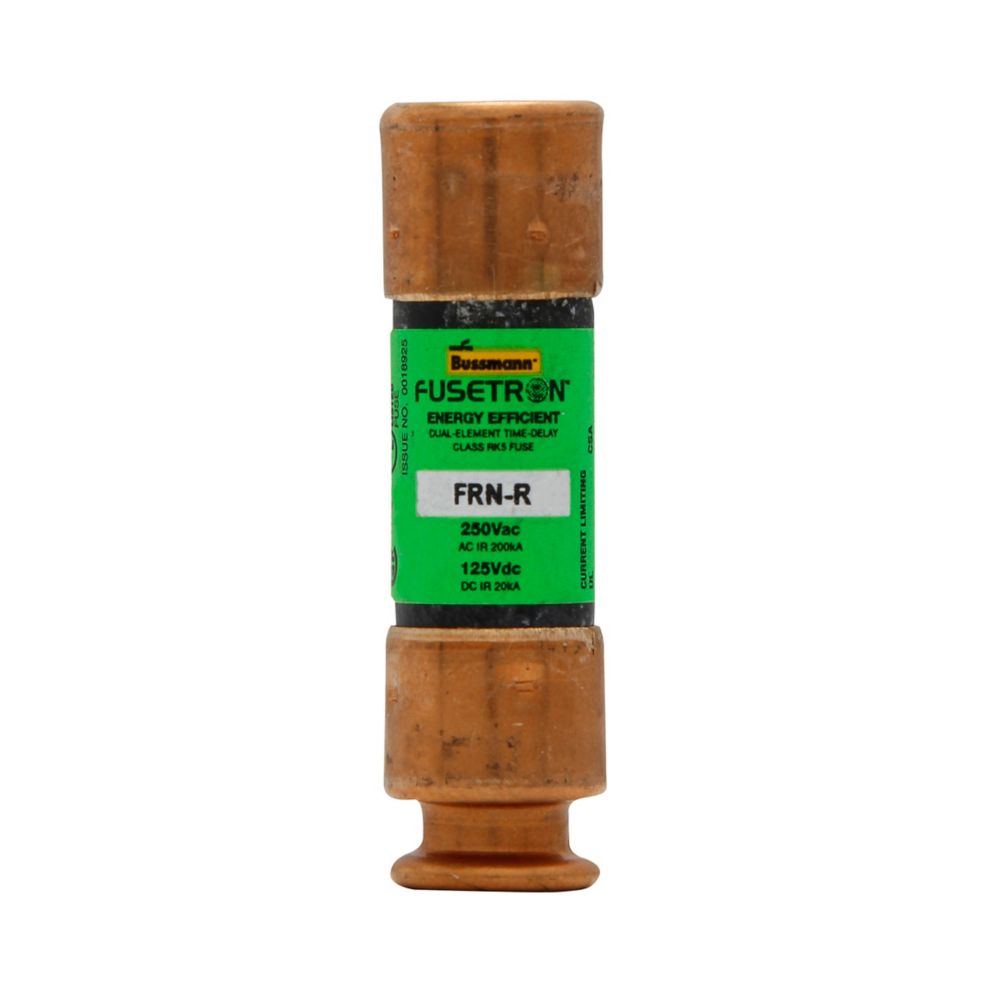

FRN-R-1-1/8 - Eaton Bussmann Series - Eaton Bussmann series FRN-R fuse
| SKU | FRN-R-1-1/8 |
| descriptionLabel | Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 1.125 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc |
| Product Name | Eaton Bussmann series FRN-R fuse |
| Catalog Number | FRN-R-1-1/8 |
| UPC | 051712507097 |
| Product Length/Depth | 3 in |
| Product Height | 0.81 in |
| Product Width | 0.81 in |
| Product Weight | 0.8 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
| Product Type | Fuse |
| Amperage Rating | 1.125A |
| Interrupt rating | 20 kAIC at 125 Vdc 200 kAIC at 250 Vac |
| Response time | 8 sec at 500% |
| Voltage rating | 250 Vac, 125 Vdc |
| Number of elements | Dual |
| Packaging type | Standard |
| Fuse indicator | Non-indicating |
| Special features | Nickel-plated brass endcap |
