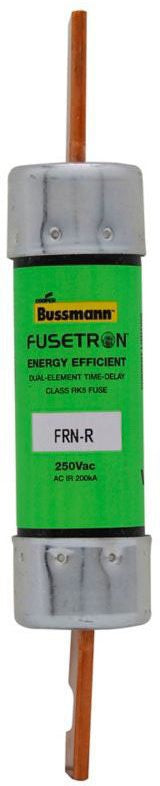

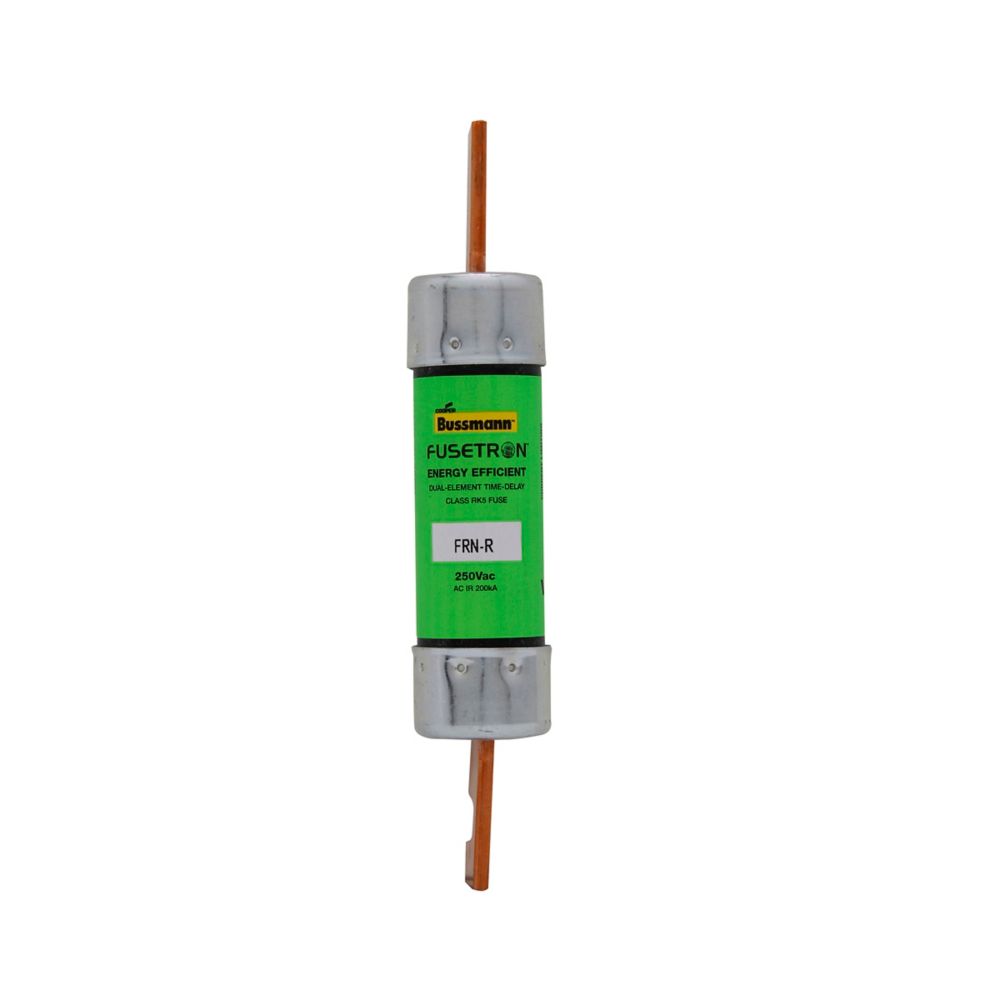

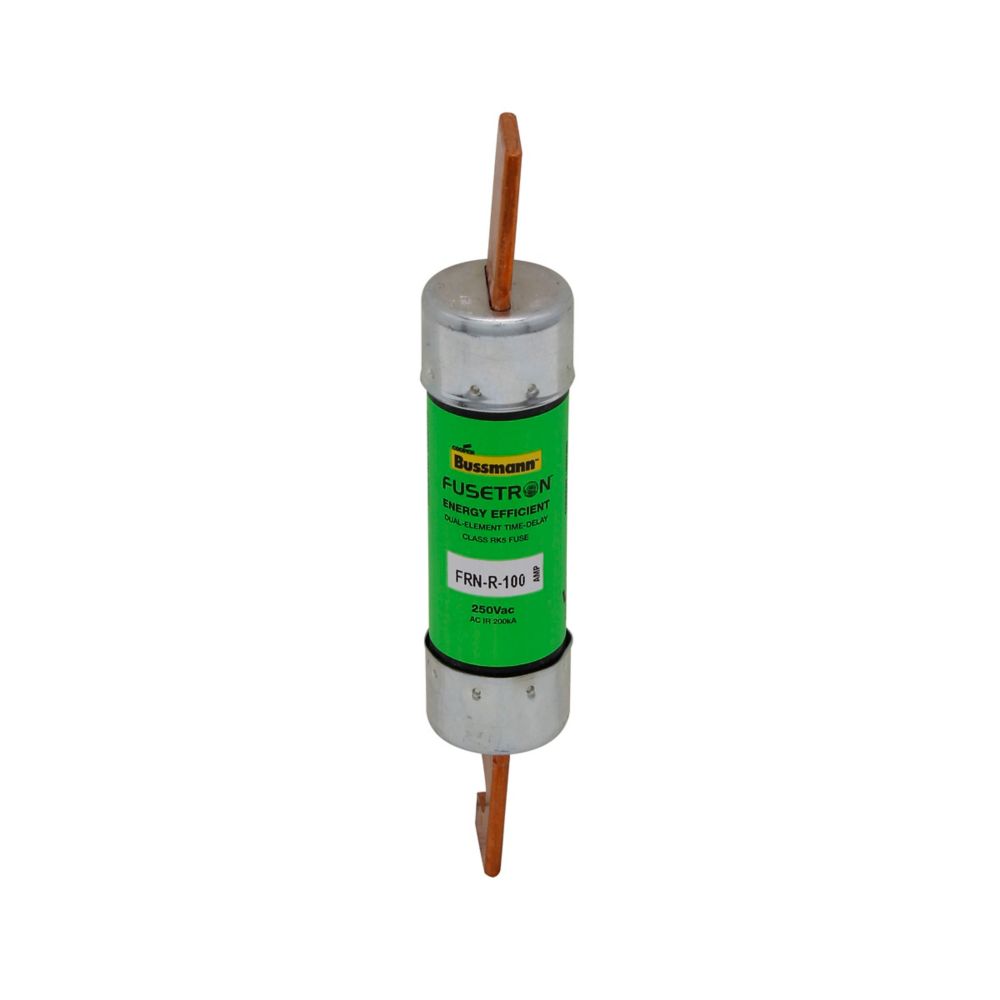

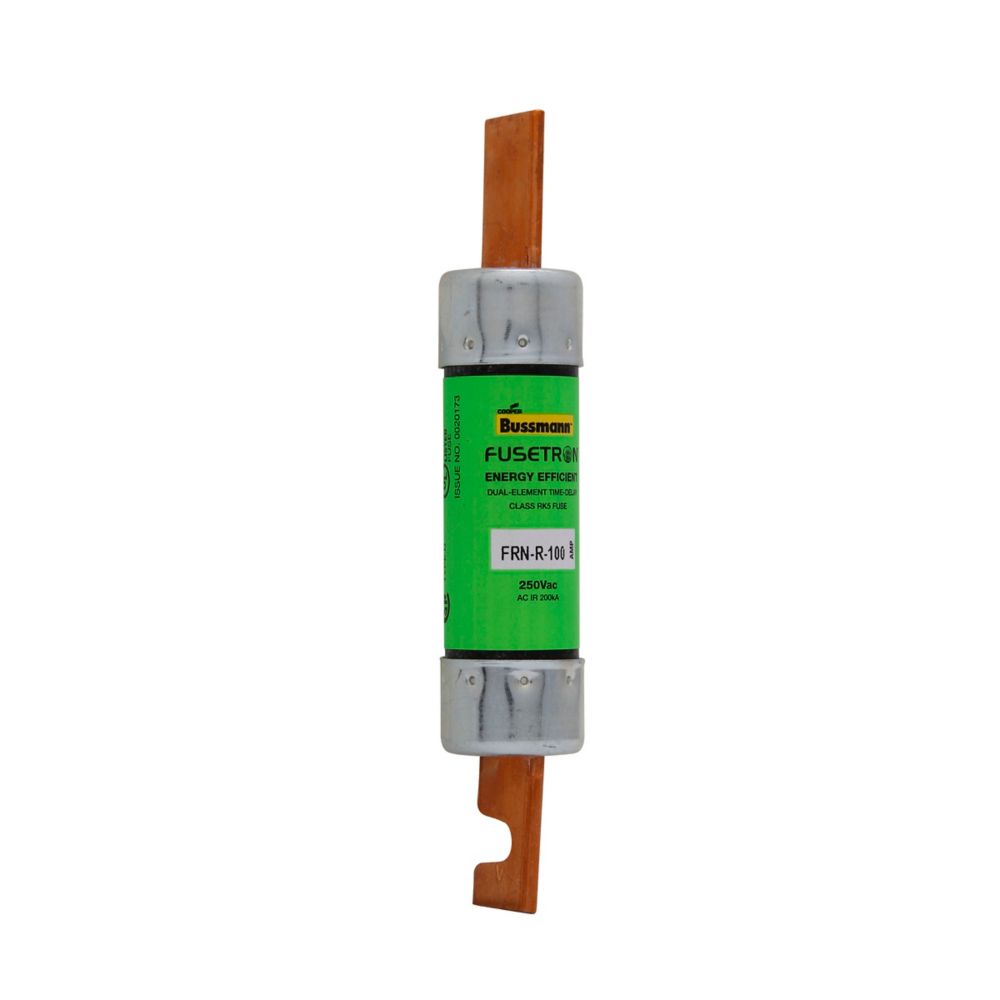

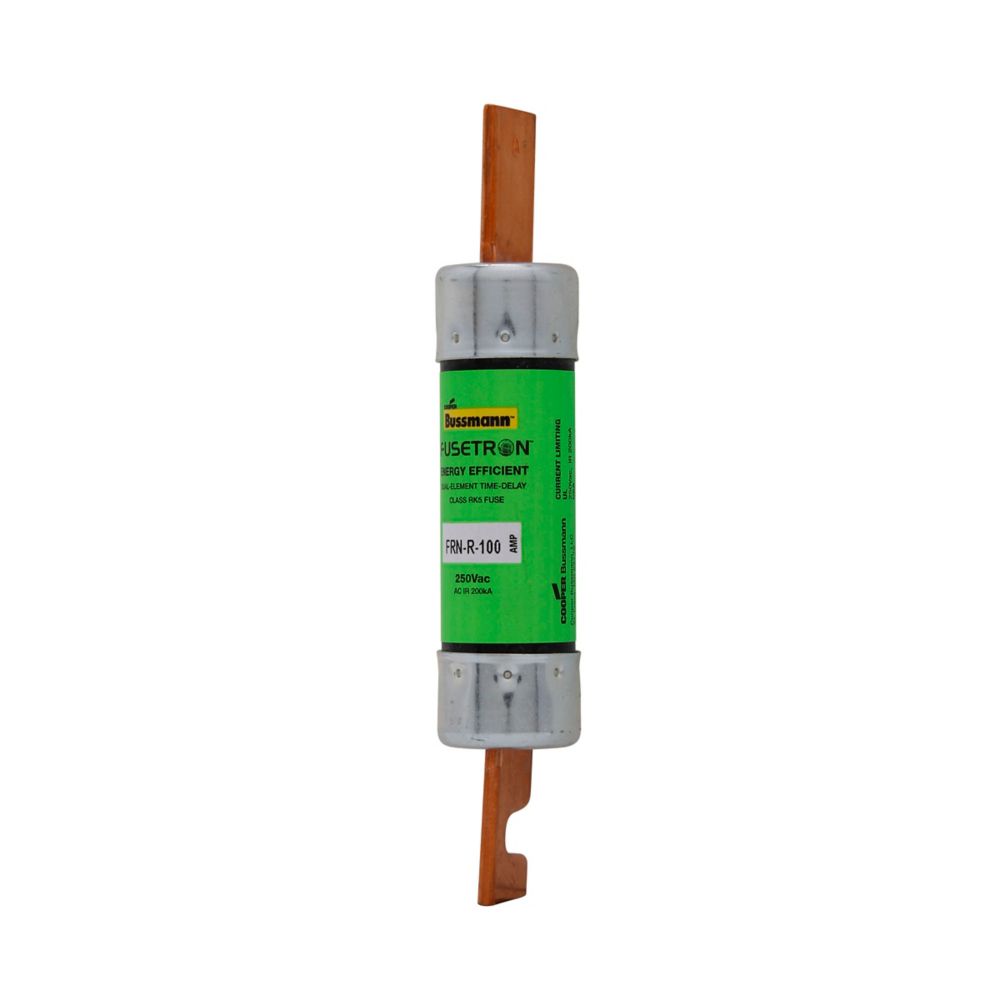

FRN-R-100 - Eaton Bussmann Series - Eaton Bussmann series FRN-R fuse
| SKU | FRN-R-100 |
| descriptionLabel | Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 100 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac |
| Product Name | Eaton Bussmann series FRN-R fuse |
| Catalog Number | FRN-R-100 |
| UPC | 051712101851 |
| Product Length/Depth | 2.1 in |
| Product Height | 0.54 in |
| Product Width | 0.54 in |
| Product Weight | 0.5 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
| Product Type | Fuse |
| Amperage Rating | 100 A |
| Interrupt rating | 20 kAIC at 125 Vdc 200 kAIC at 250 Vac |
| Response time | 10 sec at 500% |
| Voltage rating | 250 Vac, 125 Vdc |
| Number of elements | Dual |
| Packaging type | Standard |
| Class | Class RK5 |
| Connection | Blade end x blade end |
| Fuse indicator | Non-indicating |
