Description

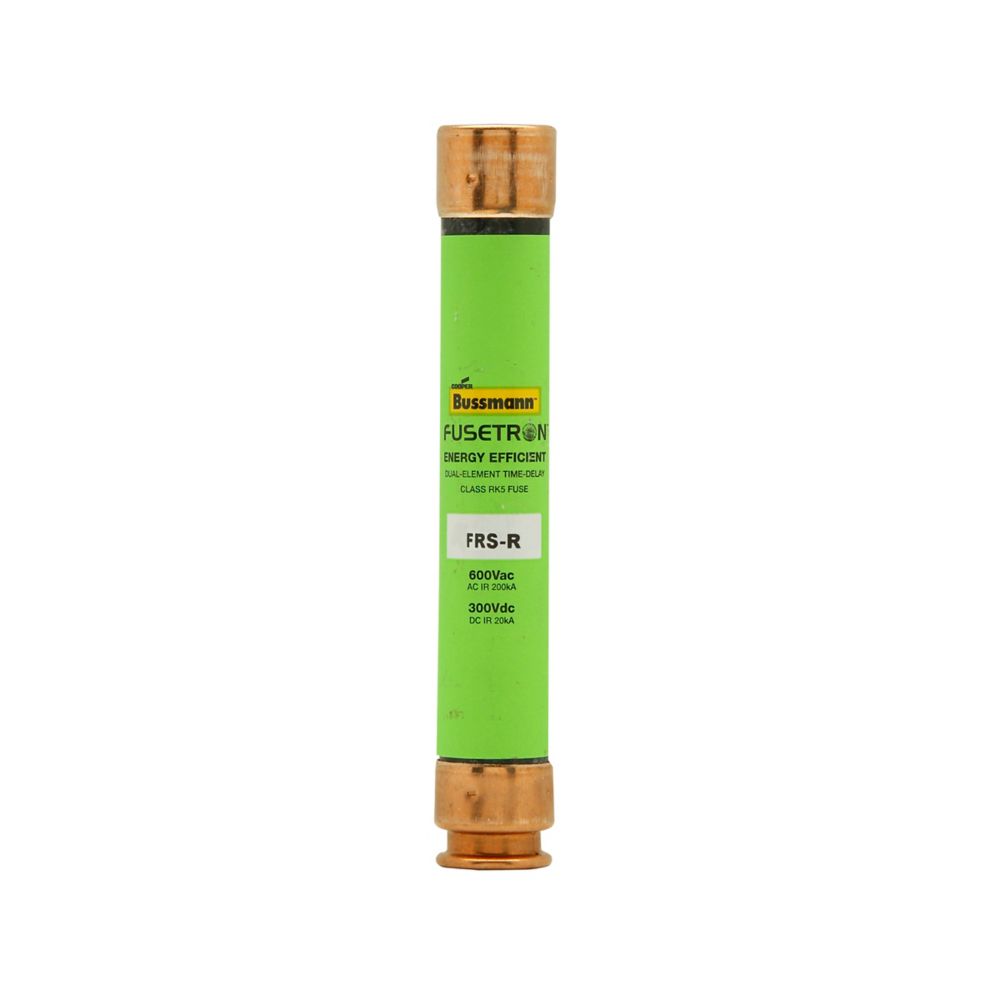

FRS-R-12 - Eaton Bussmann Series - Eaton Bussmann series FRS-R fuse
| SKU | FRS-R-12 |
| descriptionLabel | Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 12 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc |
| Product Name | Eaton Bussmann series FRS-R fuse |
| Catalog Number | FRS-R-12 |
| UPC | 051712508292 |
| Product Length/Depth | 5 in |
| Product Height | 0.81 in |
| Product Width | 0.81 in |
| Product Weight | 0.15 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
| Product Type | Fuse |
| Amperage Rating | 12 A |
| Interrupt rating | 200 kAIC at 600 Vac 20 kAIC at 300 Vdc |
| Response time | 10 sec at 500% |
| Voltage rating | 600 Vac, 300 Vdc |
| Number of elements | Dual |
| Packaging type | Standard |
| Class | Class RK5 |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
