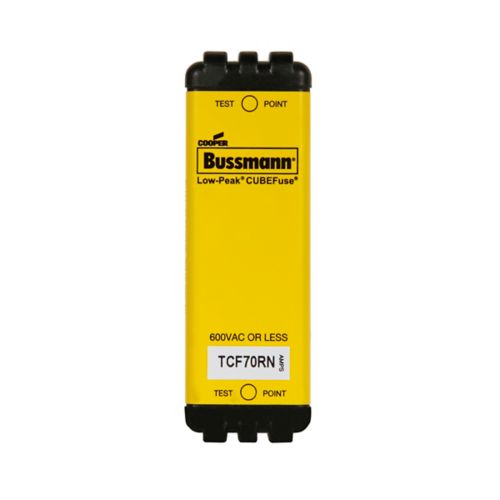

TCF70RN - Bussmann - 70A 600V Class CF Time-Delay Fuse
Roll over image to zoom in Click on image to zoom
TCF70RN - Bussmann - 70A 600V Class CF Time-Delay Fuse

TCF70RN - Bussmann - 70A 600V Class CF Time-Delay Fuse

BussmannSKU: BUSTCF70RN
Price:
$128.69
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

TCF70RN - Eaton Bussmann Series - 70A TCF Fuse

Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 70 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac

FAVORITES

SKU TCF70RN
descriptionLabel Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 70 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name Eaton Bussmann series TCF fuse
Catalog Number TCF70RN
UPC 051712236164
Product Length/Depth 3.01 in
Product Height 2.125 in
Product Width 1 in
Product Weight 0.284 lb
Warranty Not Applicable
Compliances CE Marked RoHS Compliant
Certifications UL Listed CSA Certified
Product Type Fuse
Amperage Rating 70 A
Frequency rating - max 60 Hz
Frequency rating - min 50 Hz
Interrupt rating 100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time 10 sec at 500%
Voltage rating 600 Vac, 300 Vdc
Color Black
Fuse type Class CF Time delay
Material Glass filled PES
Number of elements Dual
Packaging type Standard
Class Class CF
Connection Blade end
Fuse indicator Non-indicating
Mounting method Chassis 35 mm DIN rail
Special features Finger safe
Used with TCFH100N, CCP2-3-100CF
Date Fri Jul 24 2026
Product Name Eaton Bussmann series TCF fuse
Catalog Number TCF70RN
UPC 051712236164
Product Length/Depth 3.01 in
Product Height 2.125 in
Product Width 1 in
Product Weight 0.284 lb
Warranty Not Applicable
Compliances CE Marked RoHS Compliant
Certifications UL Listed CSA Certified
Product Type Fuse
Amperage Rating 70 A
Frequency rating - max 60 Hz
Frequency rating - min 50 Hz
Interrupt rating 100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time 10 sec at 500%
Voltage rating 600 Vac, 300 Vdc
Color Black
Fuse type Class CF Time delay
Material Glass filled PES
Number of elements Dual
Packaging type Standard
Class Class CF
Connection Blade end
Fuse indicator Non-indicating
Mounting method Chassis 35 mm DIN rail
Special features Finger safe
Used with TCFH100N, CCP2-3-100CF

FAVORITES

SKU TCF70RN
descriptionLabel Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 70 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
Product Name Eaton Bussmann series TCF fuse
Catalog Number TCF70RN
UPC 051712236164
Product Length/Depth 3.01 in
Product Height 2.125 in
Product Width 1 in
Product Weight 0.284 lb
Warranty Not Applicable
Compliances CE Marked RoHS Compliant
Certifications UL Listed CSA Certified
Product Type Fuse
Amperage Rating 70 A
Frequency rating - max 60 Hz
Frequency rating - min 50 Hz
Interrupt rating 100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time 10 sec at 500%
Voltage rating 600 Vac, 300 Vdc
Color Black
Fuse type Class CF Time delay
Material Glass filled PES
Number of elements Dual
Packaging type Standard
Class Class CF
Connection Blade end
Fuse indicator Non-indicating
Mounting method Chassis 35 mm DIN rail
Special features Finger safe
Used with TCFH100N, CCP2-3-100CF
Date Fri Jul 24 2026
Product Name Eaton Bussmann series TCF fuse
Catalog Number TCF70RN
UPC 051712236164
Product Length/Depth 3.01 in
Product Height 2.125 in
Product Width 1 in
Product Weight 0.284 lb
Warranty Not Applicable
Compliances CE Marked RoHS Compliant
Certifications UL Listed CSA Certified
Product Type Fuse
Amperage Rating 70 A
Frequency rating - max 60 Hz
Frequency rating - min 50 Hz
Interrupt rating 100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time 10 sec at 500%
Voltage rating 600 Vac, 300 Vdc
Color Black
Fuse type Class CF Time delay
Material Glass filled PES
Number of elements Dual
Packaging type Standard
Class Class CF
Connection Blade end
Fuse indicator Non-indicating
Mounting method Chassis 35 mm DIN rail
Special features Finger safe
Used with TCFH100N, CCP2-3-100CF

GENERAL SPECIFICATIONS

... [Truncated due to length]
Product Name Eaton Bussmann series TCF fuse
Catalog Number TCF70RN
UPC 051712236164
Product Length/Depth 3.01 in
Product Height 2.125 in
Product Width 1 in
Product Weight 0.284 lb
Warranty Not Applicable
Compliances CE Marked RoHS Compliant
Certifications UL Listed CSA Certified
Product Type Fuse
