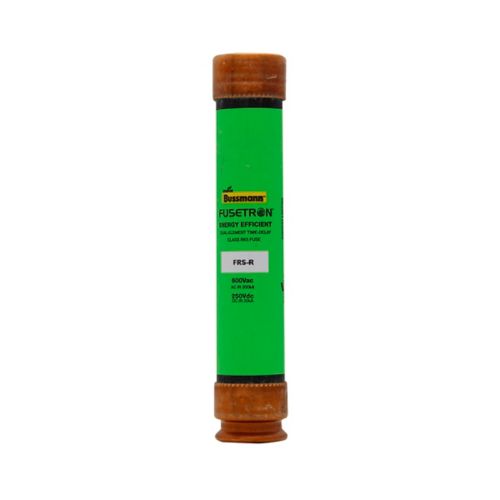

FRS-R-50 - Eaton Bussmann Series - 50A FRS-R Fuse
Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 50 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series FRS-R fuse |
| Catalog Number |
FRS-R-50 |
| UPC |
051712508384 |
| Product Length/Depth |
5.5 in |
| Product Height |
1.84 in |
| Product Width |
1.84 in |
| Product Weight |
0.3 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
50 A |
| Interrupt rating |
20 kAIC at 250 Vdc 200 kAIC at 600 Vac |
| Response time |
10 sec at 500% |
| Voltage rating |
600 Vac, 250 Vdc |
PHYSICAL DETAILS
| Number of elements |
Dual |
| Packaging type |
Standard |
GENERAL INFORMATION
| Class |
Class RK5 |
| Connection |
Ferrule end x ferrule end |
| Fuse indicator |
Non-indicating |
PRODUCT DATASHEET
skuPage.FRS-R-50.pdf
