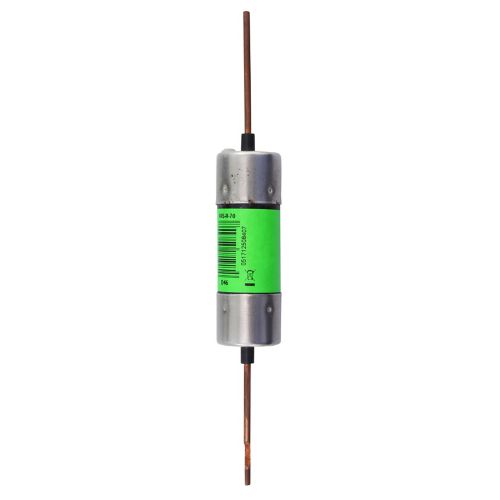

FRS-R-70 - Eaton Bussmann Series - 70A FRS-R Fuse
Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 70 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series FRS-R fuse |
| Catalog Number |
FRS-R-70 |
| UPC |
051712508407 |
| Product Length/Depth |
7.88 in |
| Product Height |
1.34 in |
| Product Width |
1.34 in |
| Product Weight |
0.35 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
70 A |
| Interrupt rating |
20 kAIC at 300 Vdc 200 kAIC at 600 Vac |
| Response time |
10 sec at 500% |
| Voltage rating |
600 Vac, 300 Vdc |
PHYSICAL DETAILS
| Number of elements |
Dual |
| Packaging type |
Standard |
GENERAL INFORMATION
| Class |
Class RK5 |
| Connection |
Blade end x blade end |
| Fuse indicator |
Non-indicating |
PRODUCT DATASHEET
skuPage.FRS-R-70.pdf
