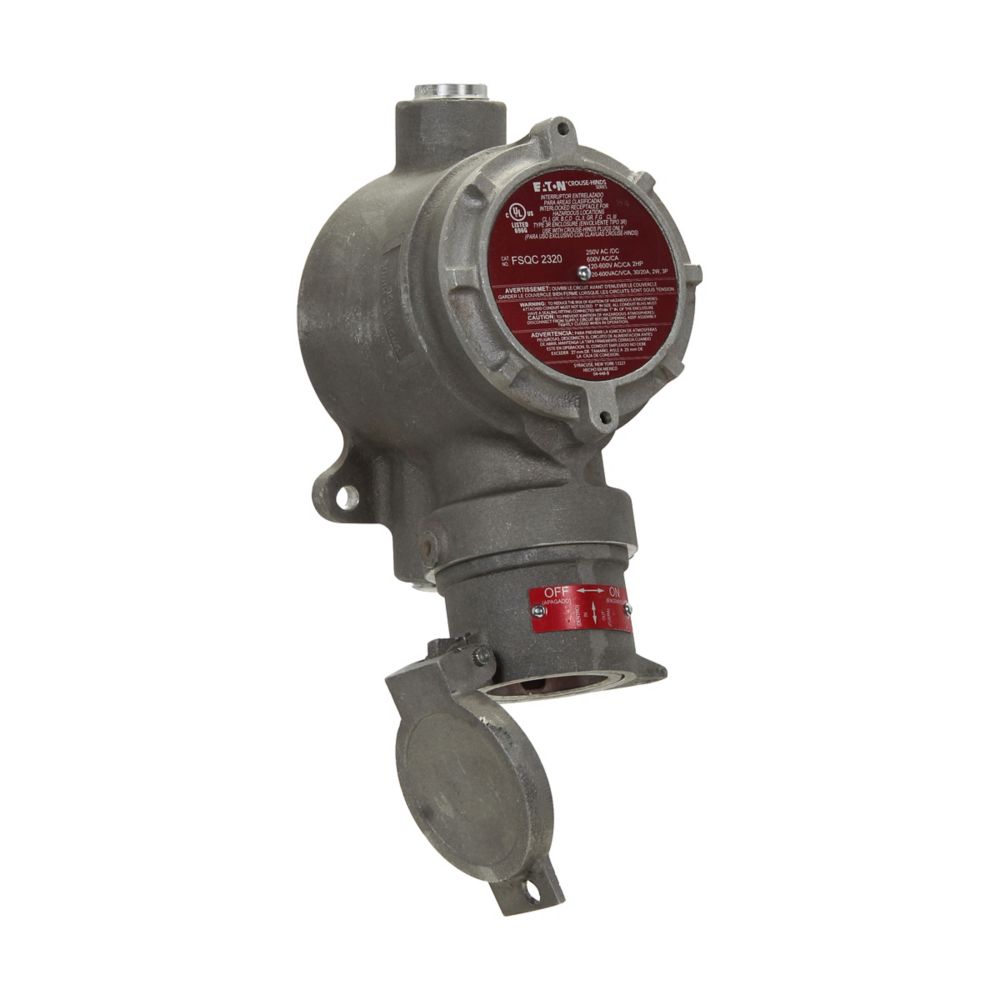

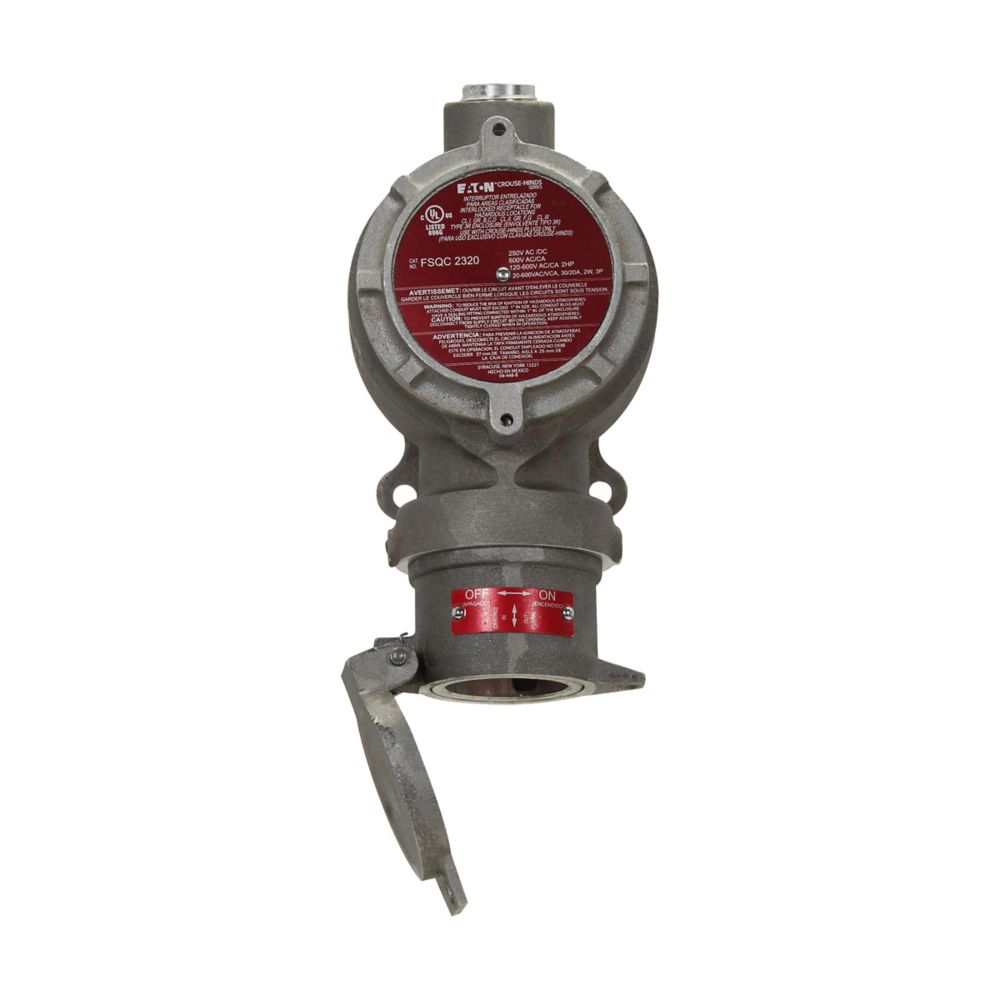

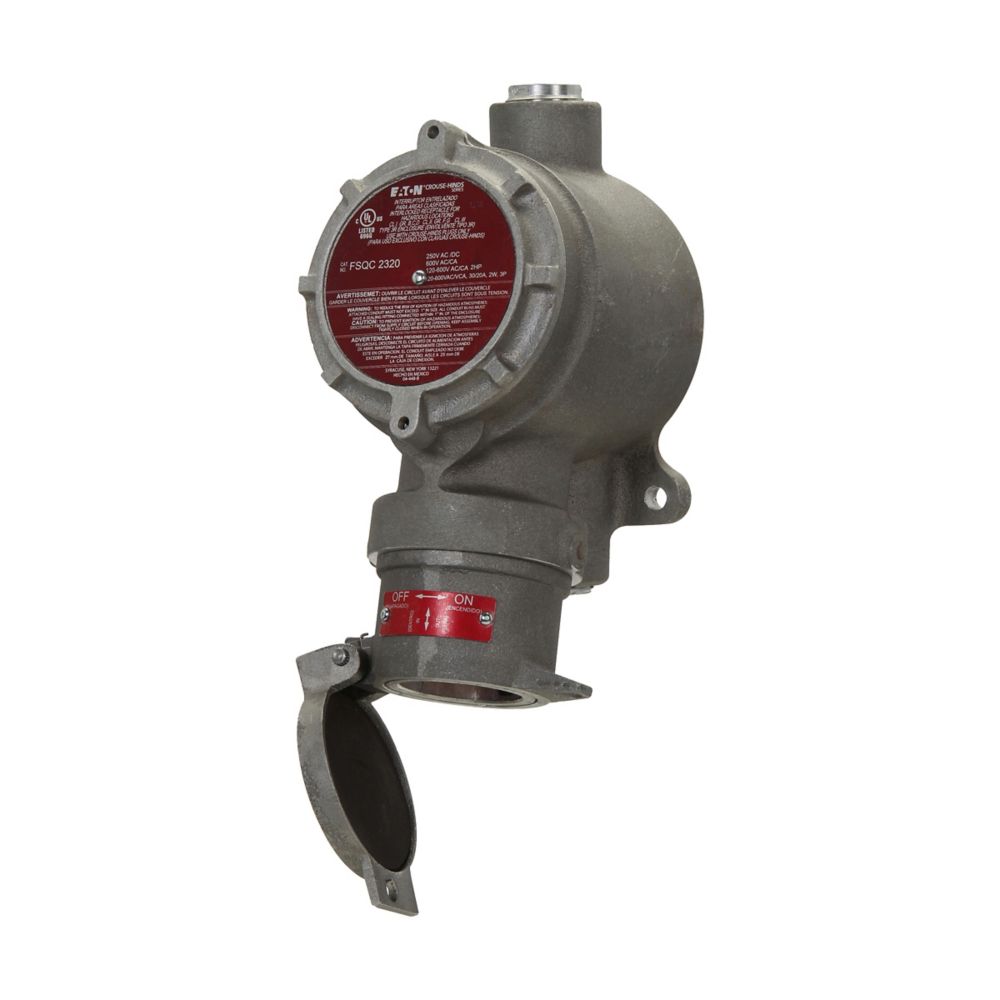

FSQC2320 - Eaton Crouse-Hinds Series - 3/4" Arktite FSQC Interlocked Receptacle with Switch
Eaton Crouse-Hinds series Arktite FSQC interlocked receptacle with switch, 30A, Through feed, Two-wire, three-pole, Brass contacts, Copper-free aluminum, Spring door, 3/4", Two-pole switch, 120-600 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite FSQC interlocked receptacle with switch |
| Catalog Number |
FSQC2320 |
| UPC |
782274417318 |
| Product Length/Depth |
4.75 in |
| Product Height |
10 in |
| Product Width |
5.75 in |
| Product Weight |
5.4 lb |
PRODUCT SPECIFICATIONS
| Amperage Rating |
30A |
| Trade size |
3/4" |
| Configuration |
Two-wire, three-pole |
| Receptacle style |
Spring door |
| Back box style |
Through feed |
| Voltage rating |
120-600 Vac |
| Material |
Copper-free aluminum |
| Contact material |
Brass |
| Type |
Two-pole switch |
PRODUCT DATASHEET
skupage.FSQC2320
