| SKU |
FWH-200B |
| descriptionLabel |
Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic |
| Product Name |

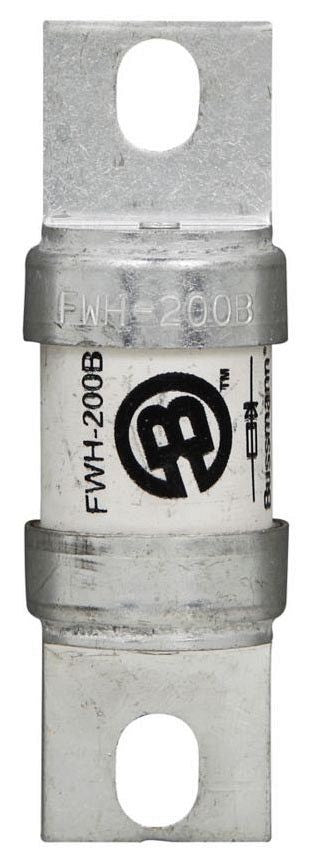

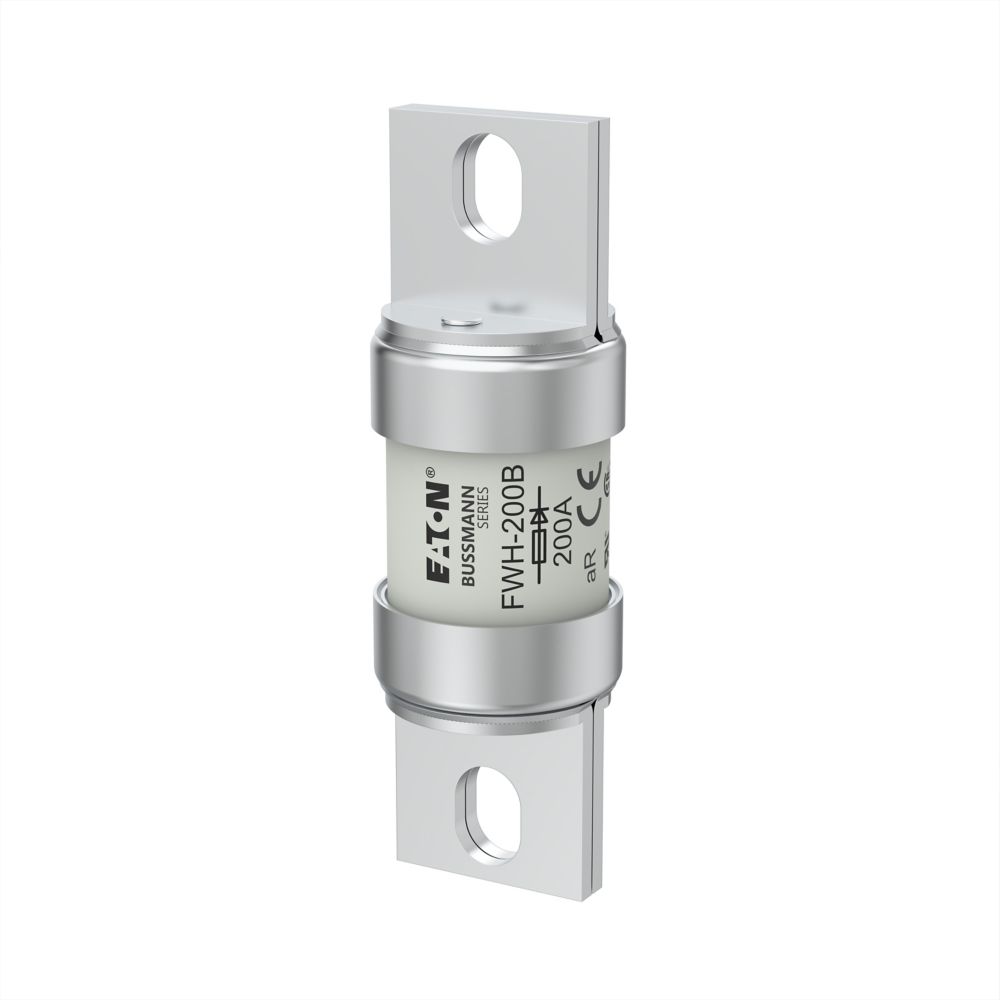

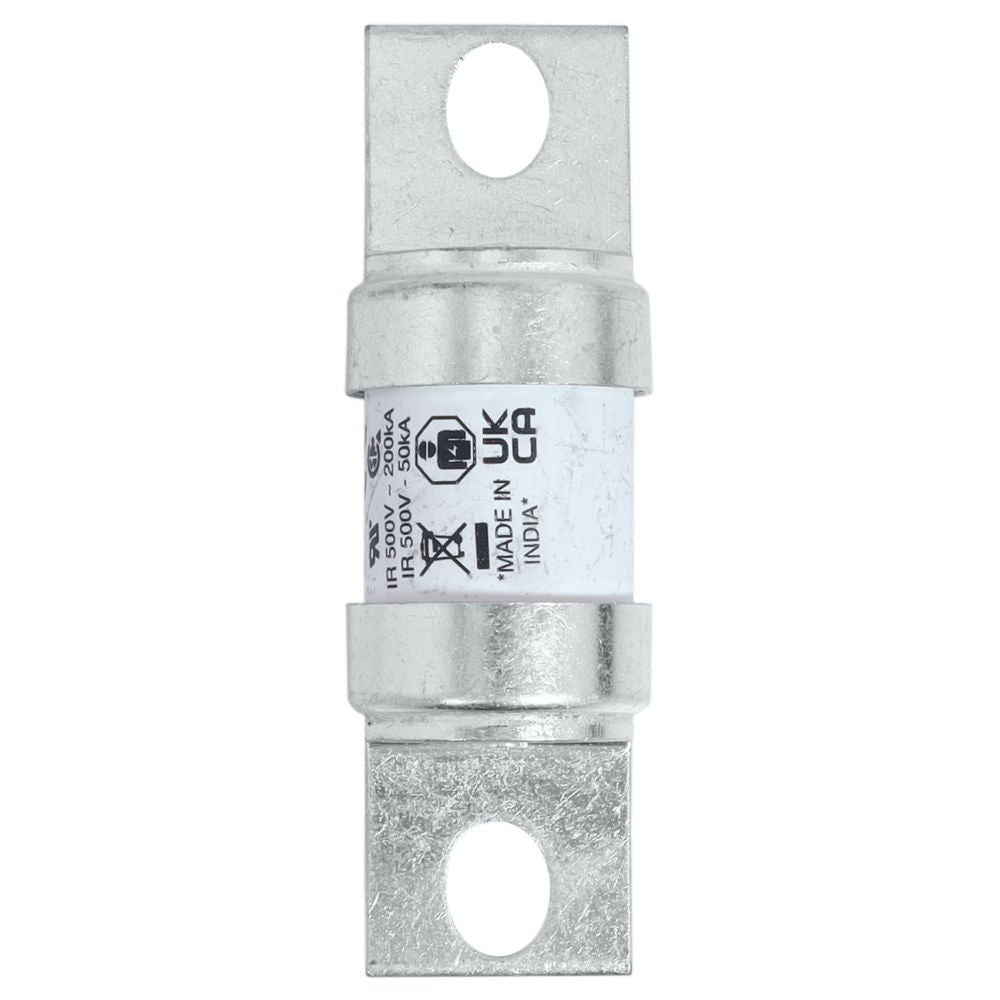

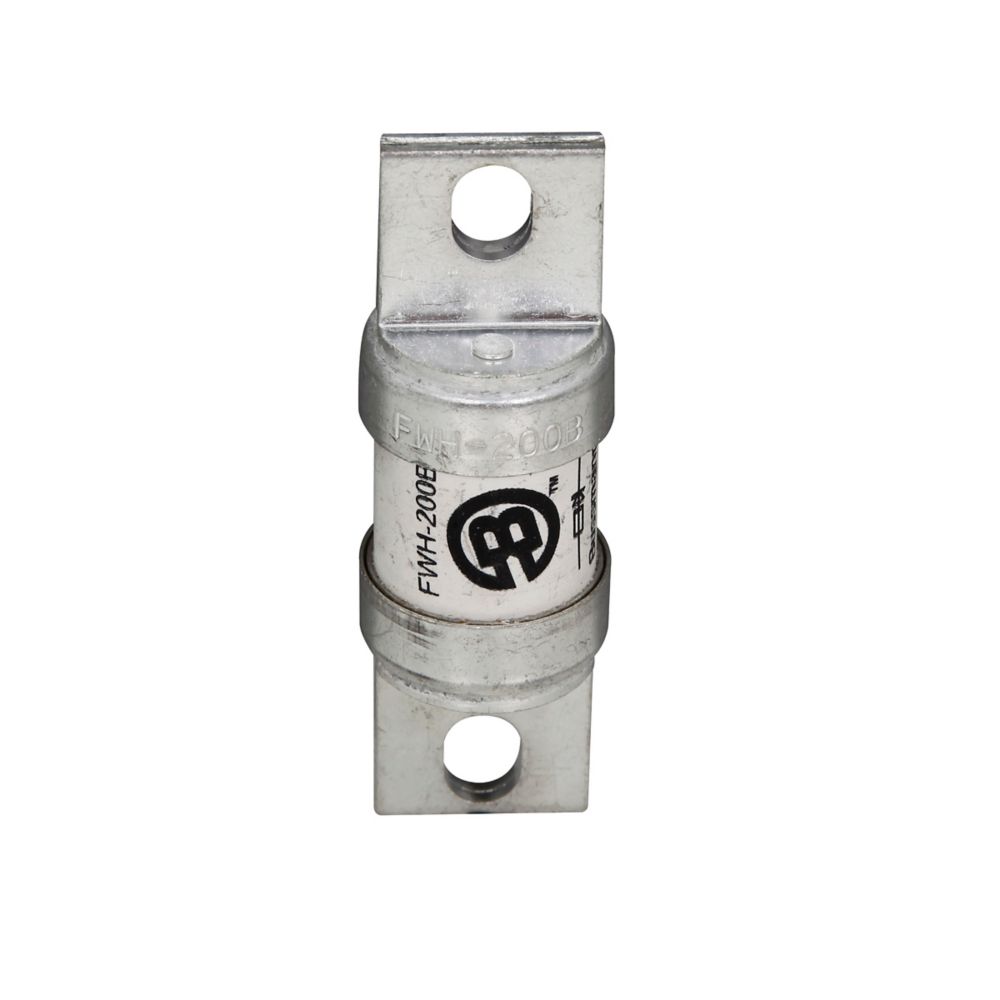

Eaton Bussmann series high speed cylindrical fuse |
| Catalog Number |
FWH-200B |
| UPC |
051712795869 |
| EAN |
5027590020916 |
| Product Length/Depth |
91 mm |
| Product Height |
30 mm |
| Product Width |
30 mm |
| Product Weight |
152 g |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Certifications |
UL Recognized CSA Certified |
| Global Catalog |
FWH-200B |
| Product Type |
High speed cylindrical fuse |
| Amperage Rating |
200 A |
| Breaking capacity |
200 kA |
| Fuse indicator |
Non Indicating |
| Insulated metal gripping lugs (IMGL) |
No |
| Utilization category |
aR (accompanied semiconductor protection) |
| Voltage type |
AC/DC |
| Rated switching capacity |
200 kA |
| Rated voltage AC |
500 V |
| Rated voltage DC |
500 V |
| Mounting dimension |
M8 |
| Center-to-center distance of connections |
74.09 mm |
| Current type |
AC/DC |
| Class |
Class aR |
| Clearing (I2T) |
8500 |
| Watt losses |
40 W |
| Fuse shape |
Center bolted tags |
| Pre arc (I2T) |
1900 |
| Color |
White |
| Interrupt rating |
200 kAIC at 300 Vdc 50 kAIC at 300 Vdc |
| Connection |
Blade end x blade end |
| Construction size |
Other |
| Material |
Ceramic |
| Mounting method |
Stud |
| Quantity |
1 |
| Voltage rating |
500 Vac, 500 Vdc |
| Type |
High speed fuse |
| Application |
Semiconductor, DC Common bus, DC drives, Power converters/rectifiers |
| Fuse type |
FWH-B |
| Fuse system (according to IEC 60269) |
Other |
