Description

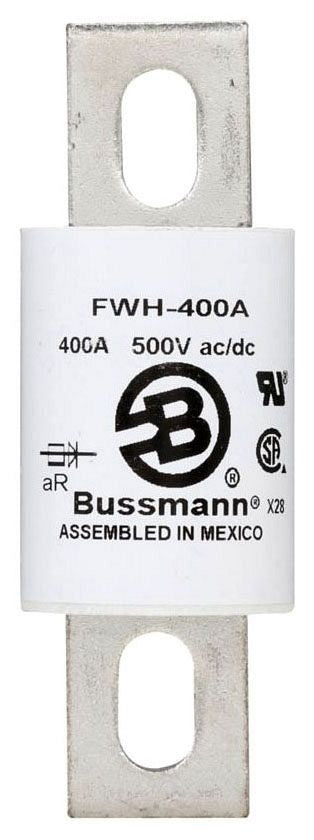

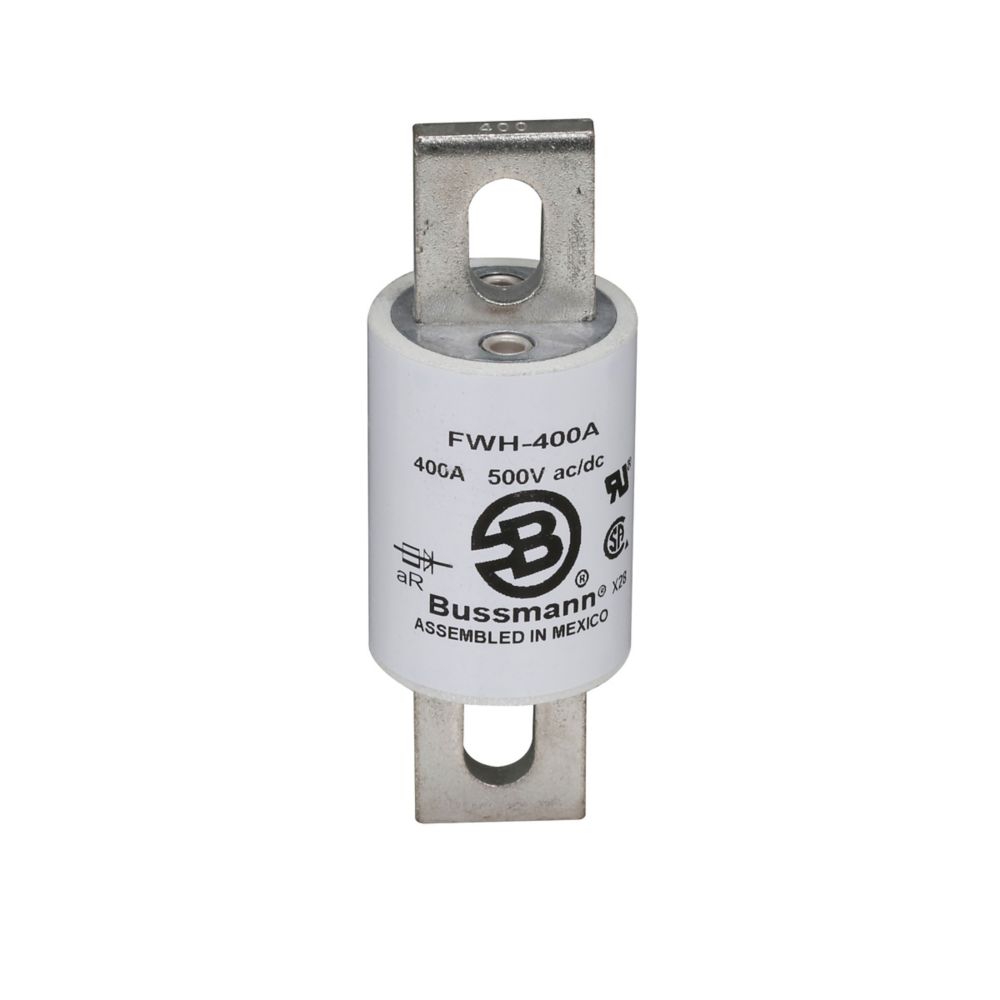

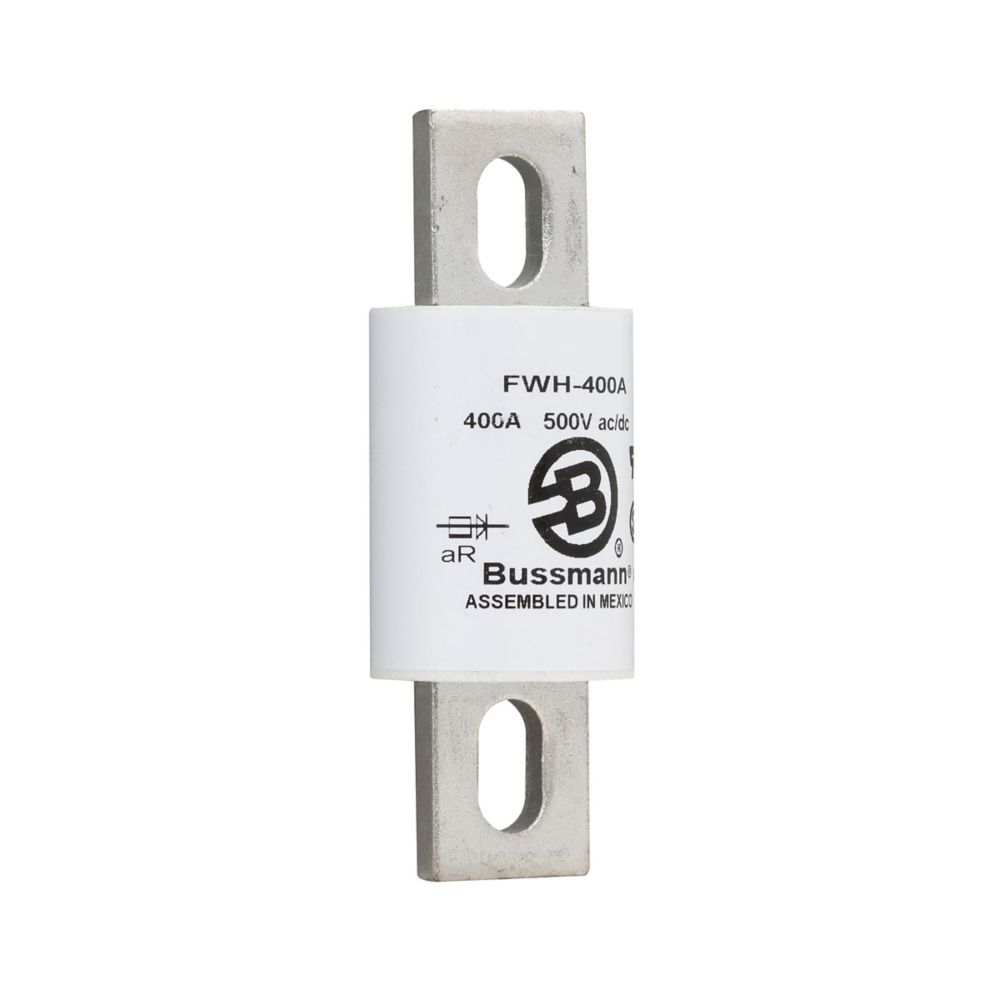

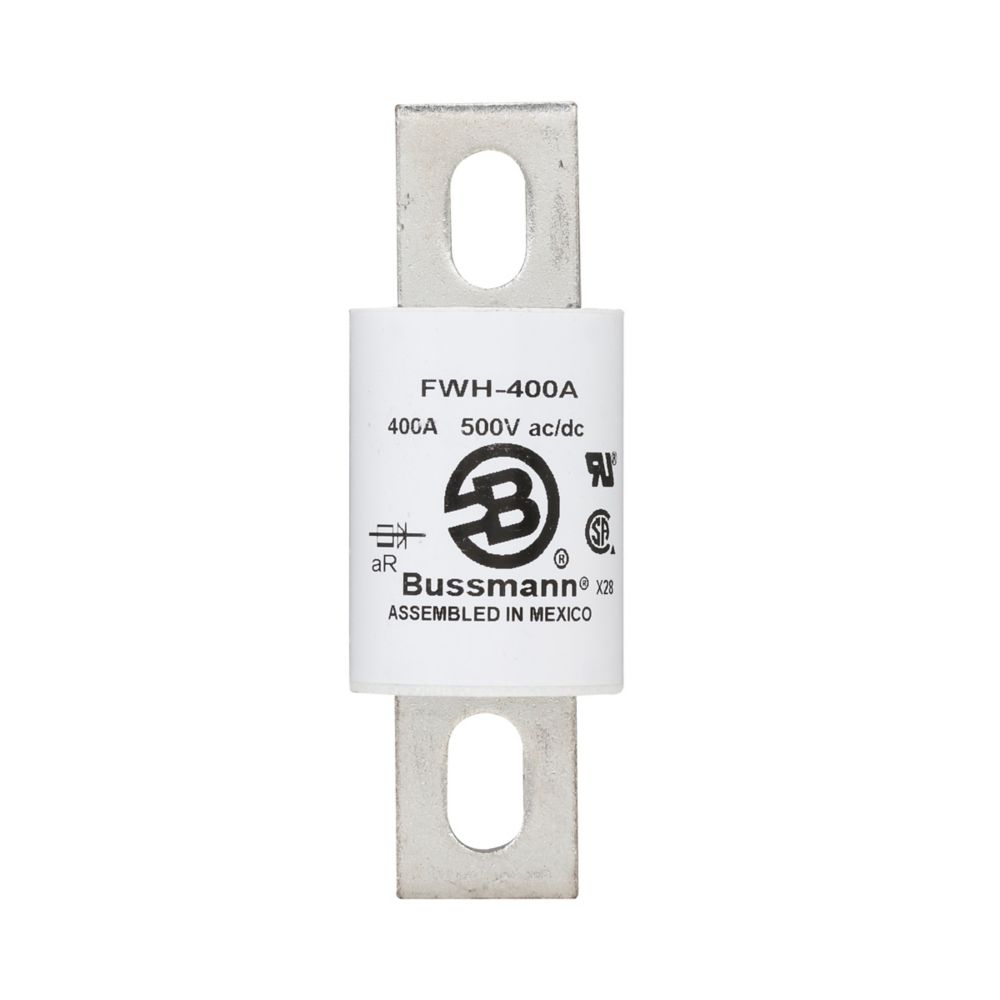

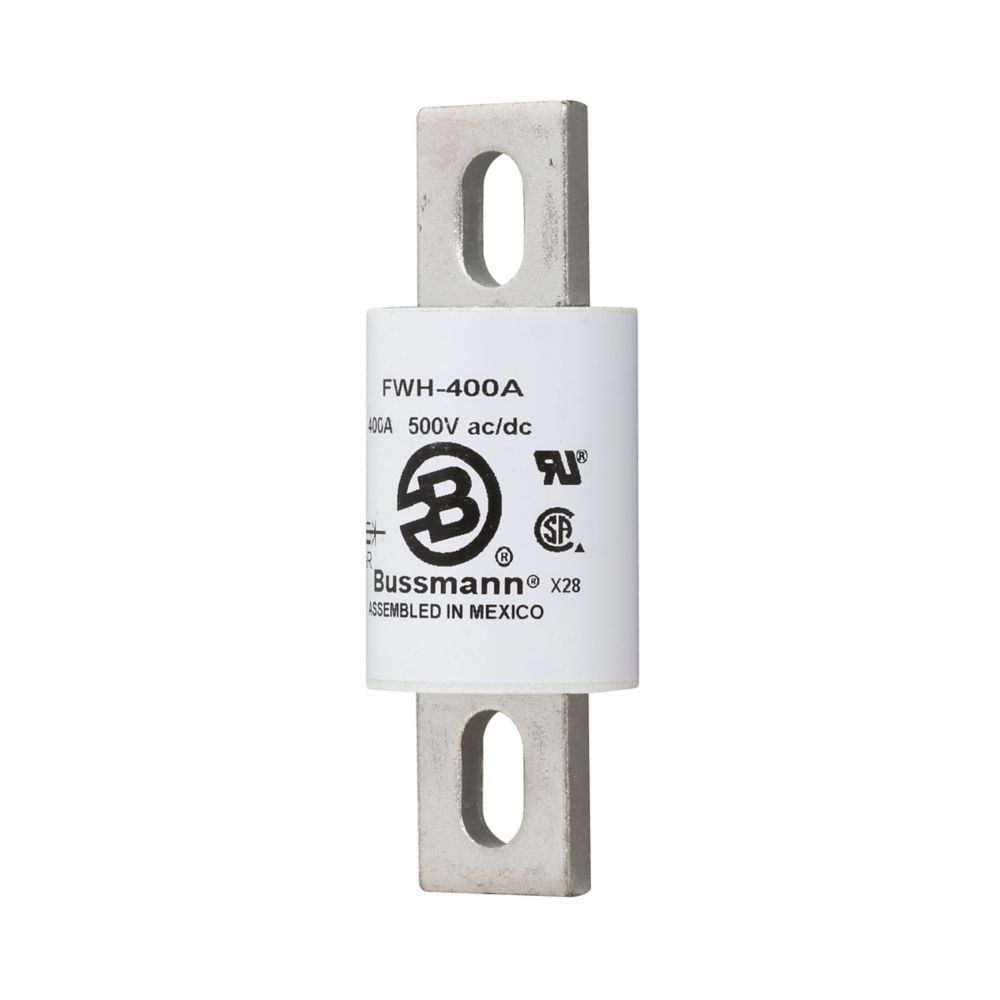

FWH-400A - Eaton Bussmann Series - Eaton Bussmann series FWH high speed fuse
| SKU | FWH-400A |
| descriptionLabel | Eaton Bussmann series FWH high speed fuse, 750 Vac, 750 Vdc, 400A RMS, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud |
| Product Name | Eaton Bussmann series FWH high speed fuse |
| Catalog Number | FWH-400A |
| UPC | 051712150187 |
| EAN | 5027590061292 |
| Product Length/Depth | 1.69 in |
| Product Height | 1.61 in |
| Product Width | 4.52 in |
| Product Weight | 0.52 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | CSA Certified UL Recognized |
| Product Type | High speed fuse |
| Amperage Rating | 400A RMS |
| Interrupt rating | 50 kAIC at 500 Vdc 200 kAIC at 1000 Vac |
| Voltage rating | 750 Vac, 750 Vdc |
| Watt losses | 65 W |
| Packaging type | Standard |
| Connection | Blade end x blade end |
| Fuse indicator | Non Indicating |
| Mounting method | Stud |
