Description

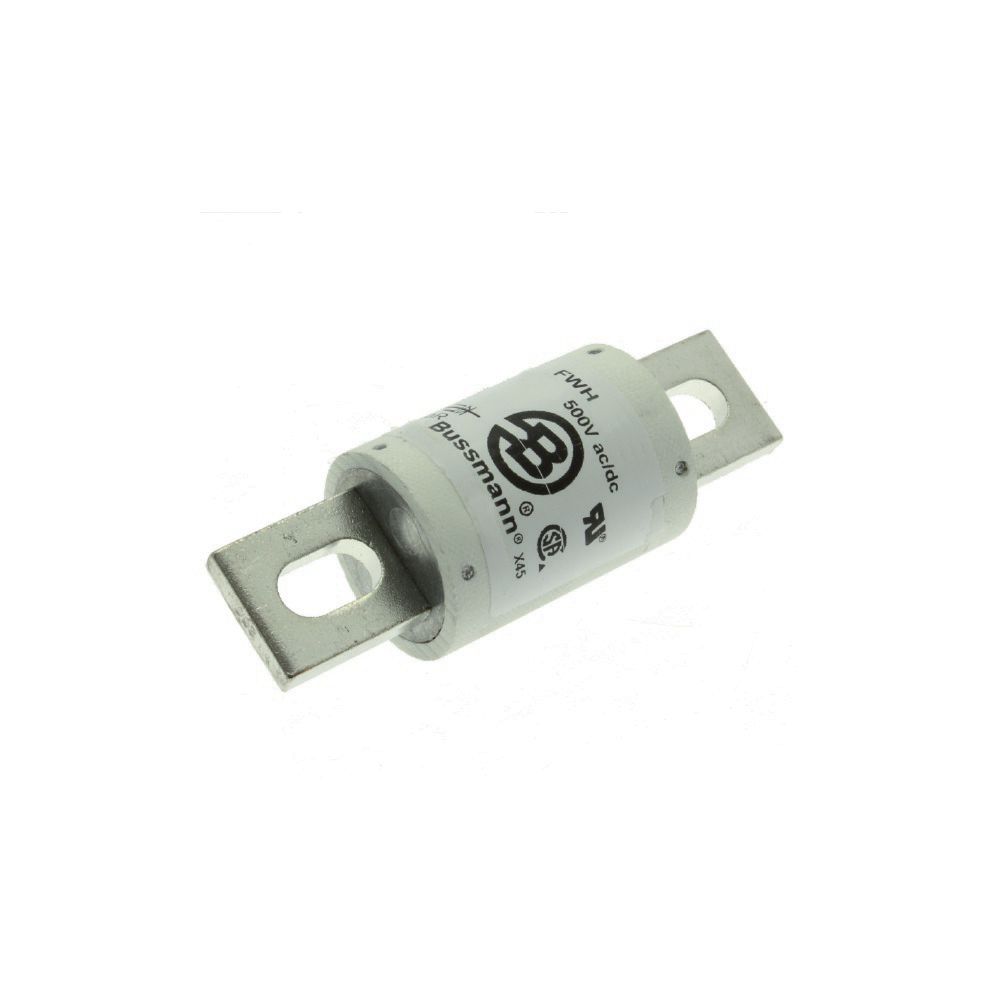

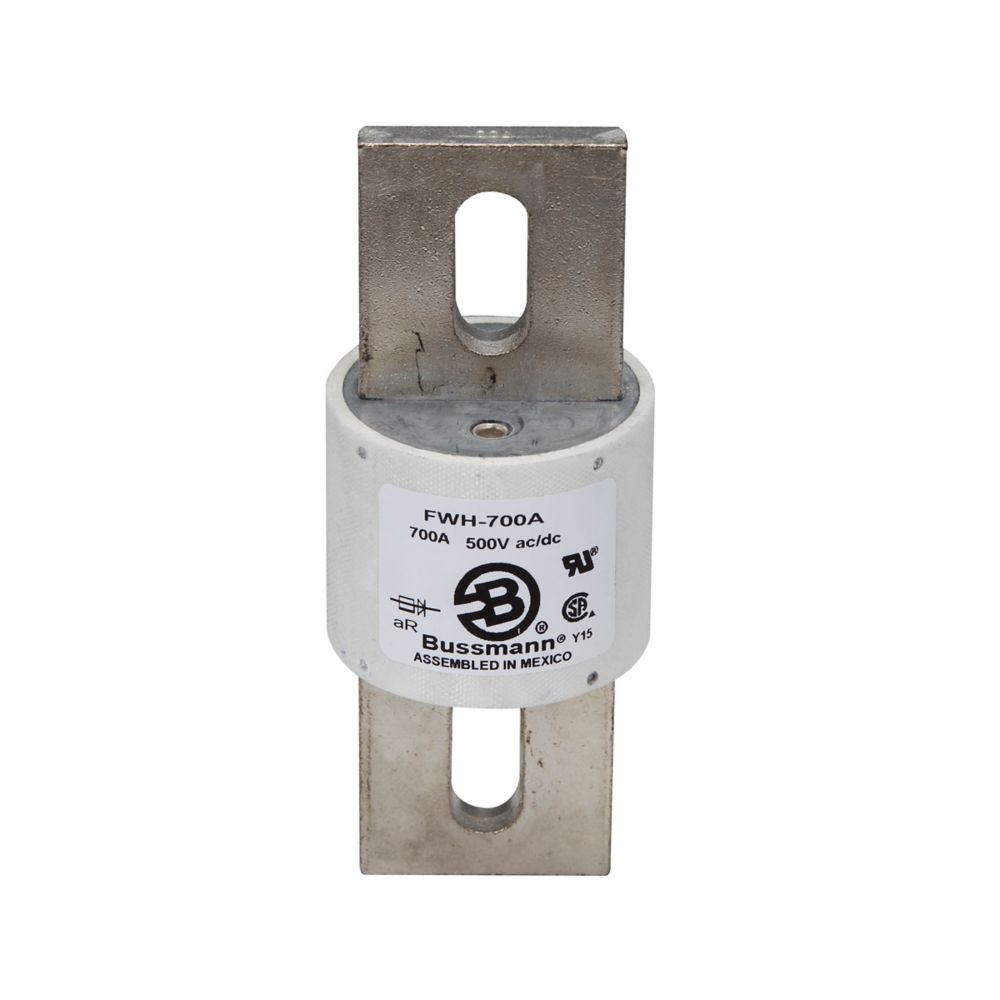

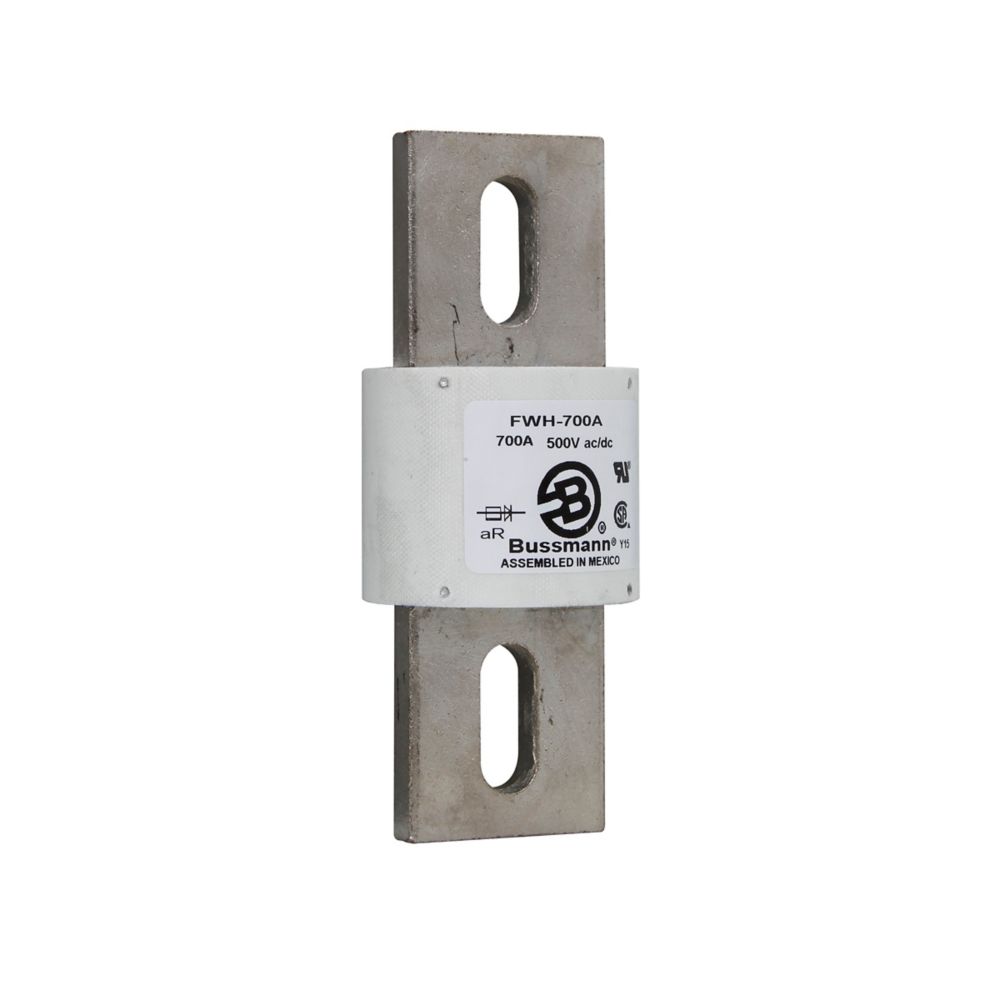

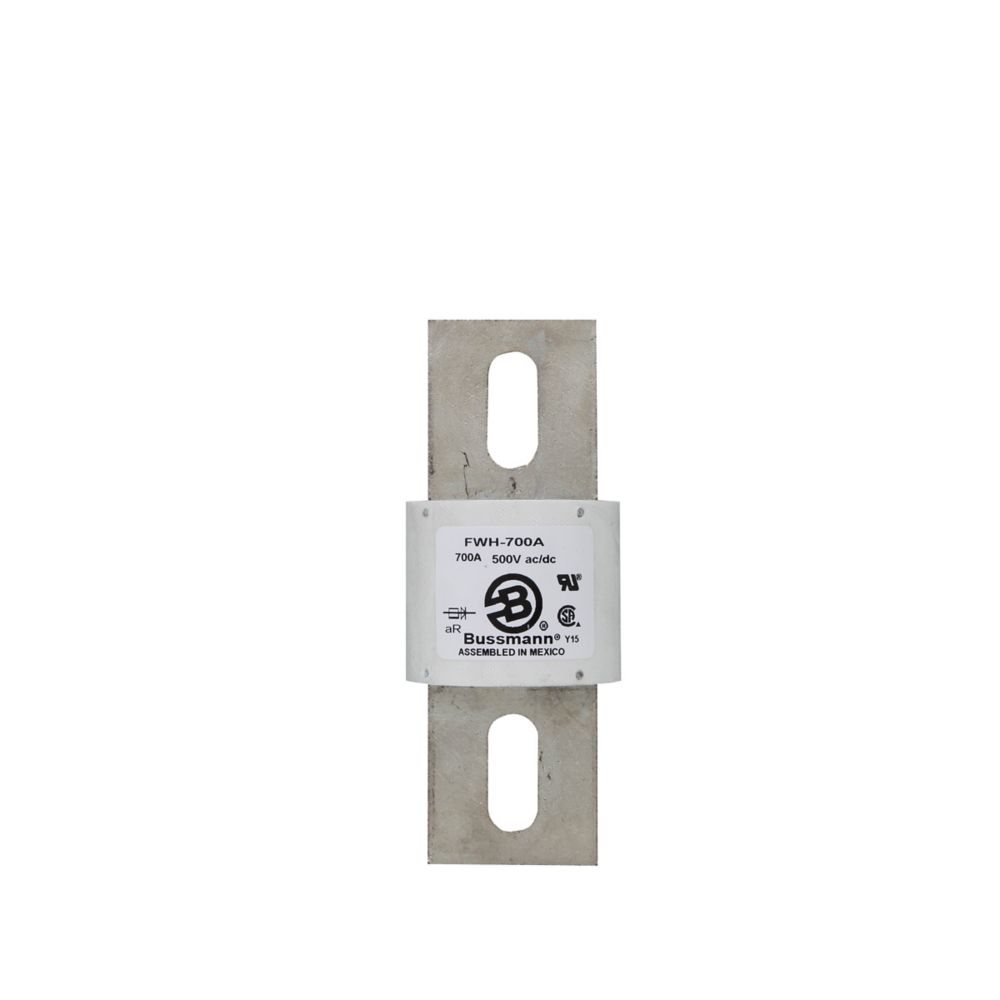

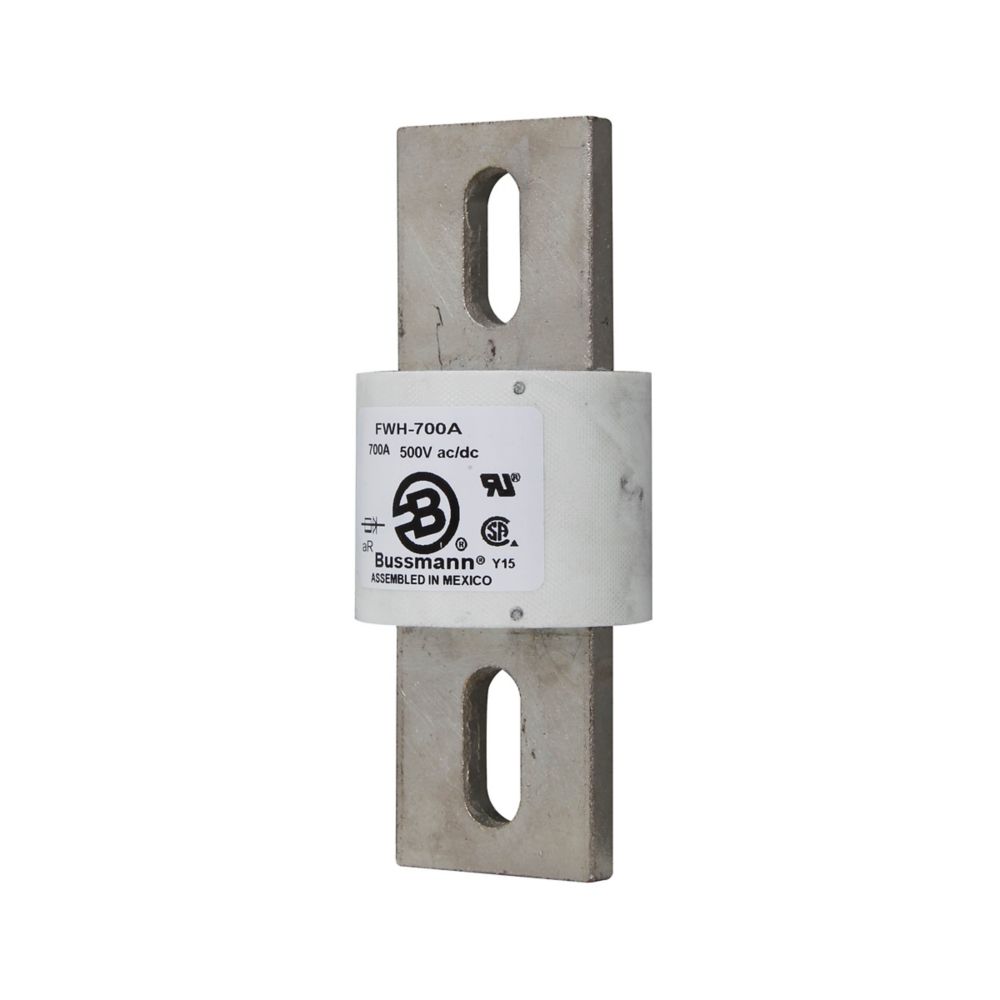

FWH-700A - Eaton Bussmann Series - Eaton Bussmann series FWH high speed fuse
| SKU | FWH-700A |
| descriptionLabel | Eaton Bussmann series FWH high speed fuse, 700A RMS, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud |
| Product Name | Eaton Bussmann series FWH high speed fuse |
| Catalog Number | FWH-700A |
| UPC | 051712150231 |
| Product Length/Depth | 6.5 in |
| Product Height | 2.5 in |
| Product Width | 2.5 in |
| Product Weight | 1.895 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | CSA Certified UL Recognized |
| Product Type | High speed fuse |
| Amperage Rating | 700A RMS |
| Interrupt rating | 200 kAIC at 1000 Vac 50 kAIC at 500 Vdc |
| Watt losses | 120 W |
| Packaging type | Standard |
| Connection | Blade end x blade end |
| Fuse indicator | Non Indicating |
| Mounting method | Stud |
