| SKU |
FWP-80A22F |
| descriptionLabel |
Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 80A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic |
| Product Name |

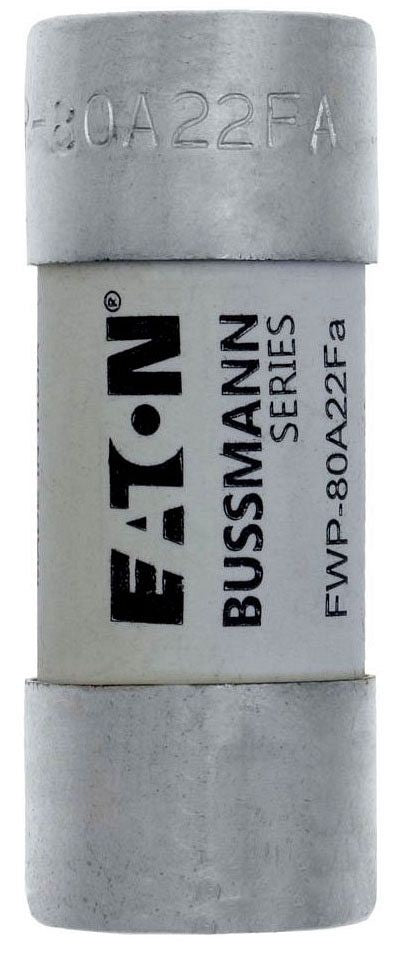

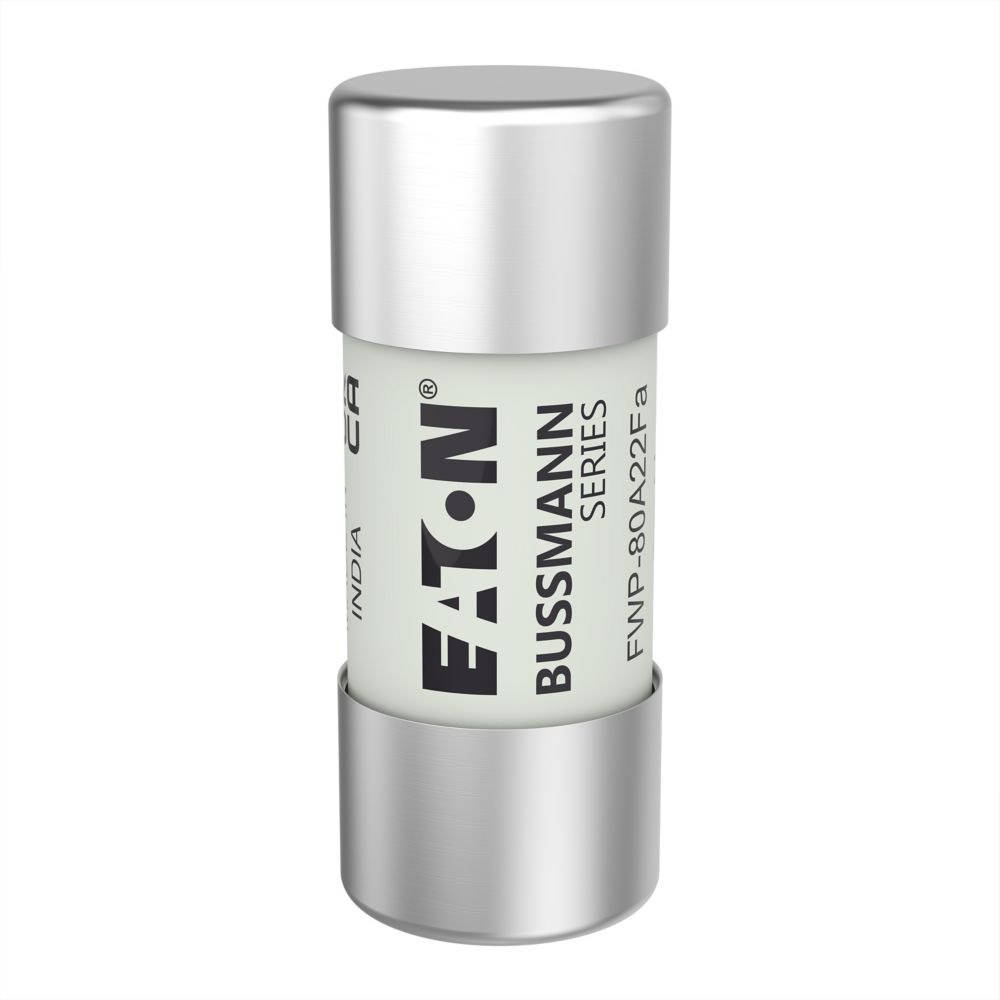

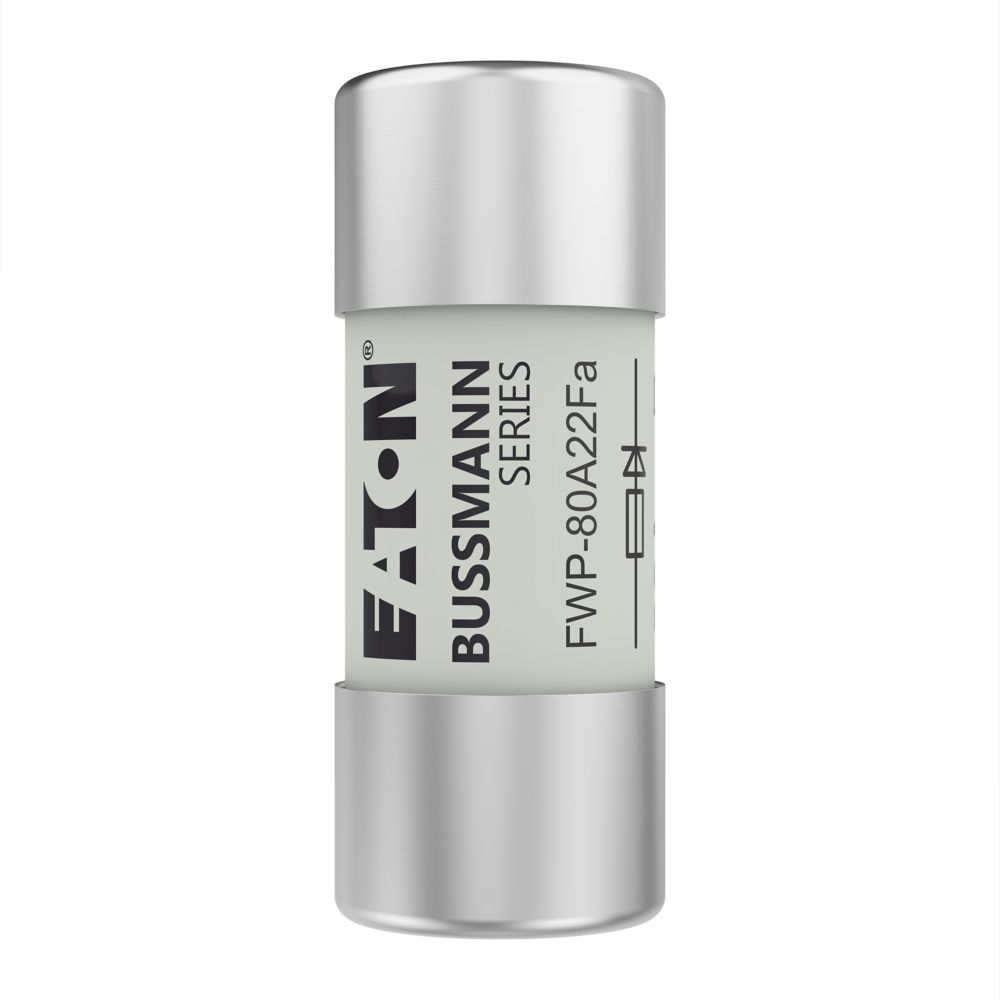

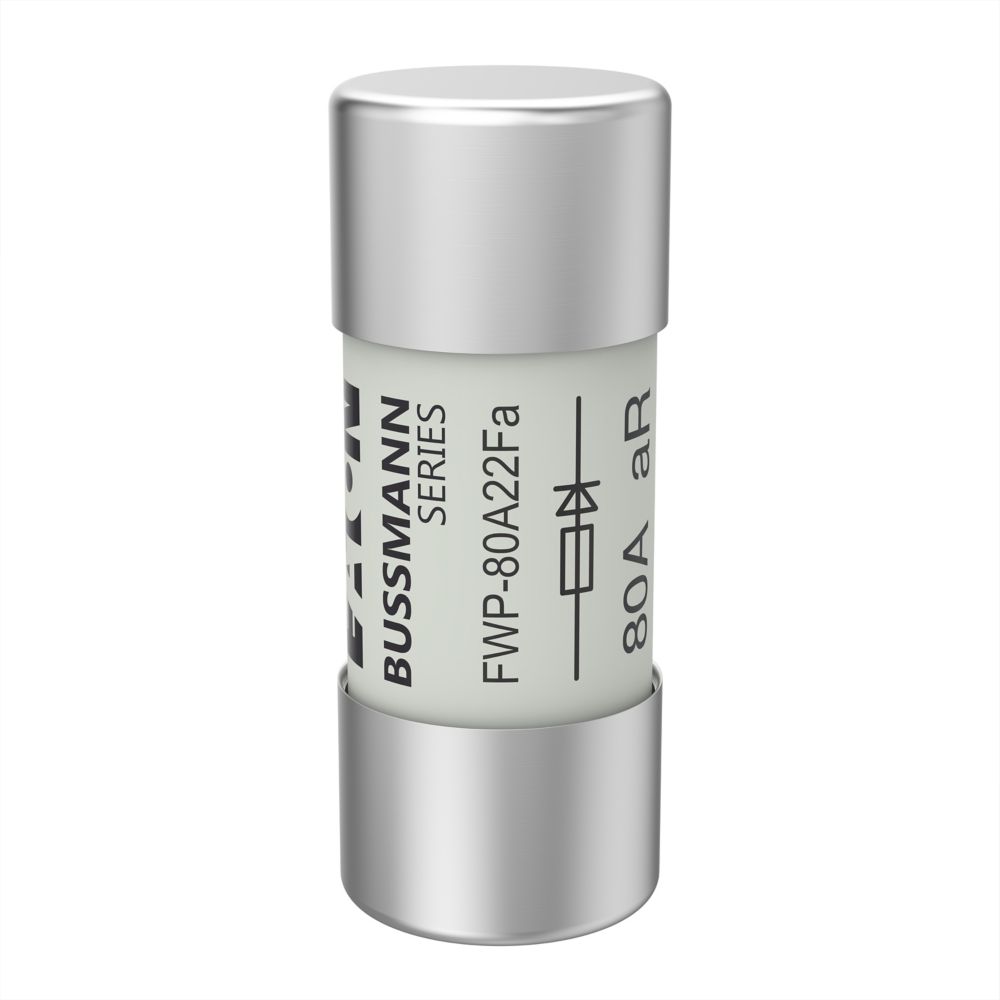

Eaton Bussmann series high speed cylindrical fuse |
| Catalog Number |
FWP-80A22F |
| UPC |
051712370875 |
| EAN |
5027590501101 |
| Product Length/Depth |
58 mm |
| Product Height |
23 mm |
| Product Width |
23 mm |
| Product Weight |
61.3 g |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Certifications |
CSA Certified UL Recognized |
| Global Catalog |
FWP-80A22F |
| Product Type |
High speed cylindrical fuse |
| Used with |
Finger safe holders/blocks and striker |
| Amperage Rating |
80 A |
| Accessories |
JM70100 Fuse base |
| Breaking capacity |
200 kA |
| Frequency rating - max |
62 Hz |
| Frequency rating - min |
45 Hz |
| Fuse indicator |
Other |
| Release characteristic |
Other |
| Utilization category |
aR (accompanied semiconductor protection) |
| Voltage type |
AC/DC |
| Fuse size |
22 x 58 mm |
| Rated voltage AC |
700 V |
| Rated voltage DC |
700 V |
| Class |
Class aR |
| Clearing (I2T) |
7800 |
| Watt losses |
15 W |
| Fuse shape |
Cylindrical |
| Minimum melting |
600 I2t (A2 sec) |
| Pre arc (I2T) |
550 |
| Color |
White |
| Interrupt rating |
200 kAIC |
| Connection |
Ferrule end x ferrule end |
| Construction size |
22 mm x 58 mm |
| Material |
Ceramic |
| Packaging type |
Standard |

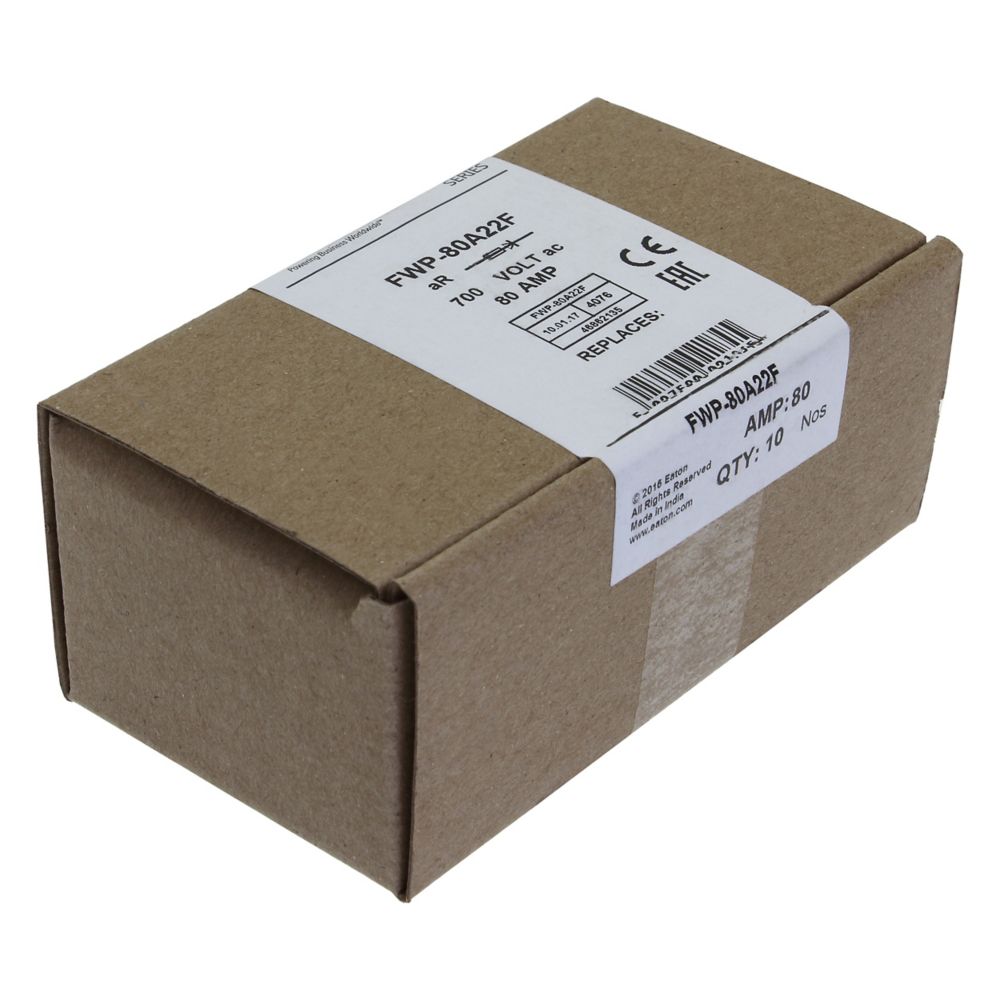

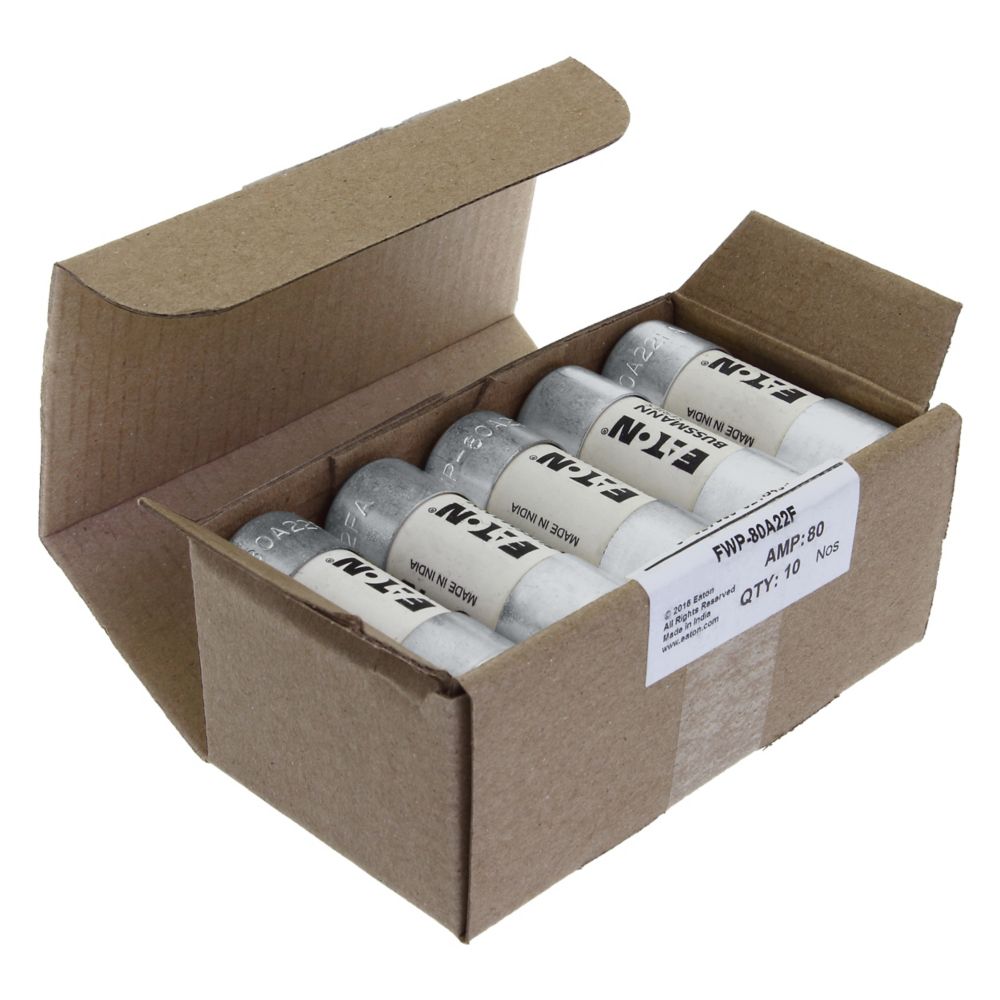

| Quantity |
10 |
| Voltage rating |
700 V |
| Type |
High speed fuse |
| Application |
Semiconductor, DC Common bus, DC drives, Power converters/rectifiers |
| Fuse type |
FWP-A22F |
| Breaking capacity at nominal voltage, AC |
200 kA |
| Breaking capacity at nominal voltage, DC |
50 kA |
