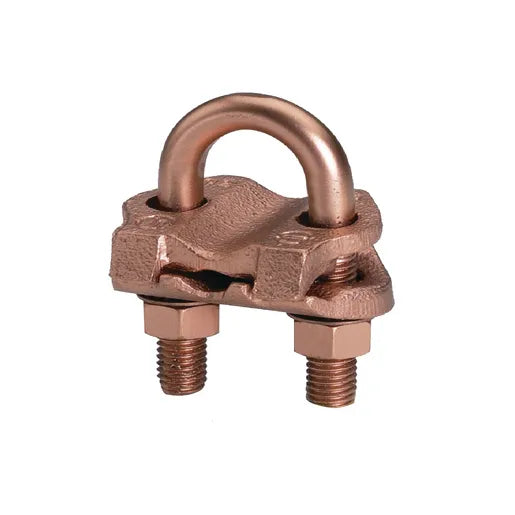

GAR1126 - Burndy - Fits 1/2" to 1/4" Pipe Bright Dipped Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), 1/2" Rod, 1/4" Pipe, Bright Dipped.
- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Catalog Number | GAR1126 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | N |
| Plating Type | Bright Dipped |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR |
| U Bolt Type | 271 |
| UPC | 781810231203 |
| UPC 14 Digit GTIN | 00781810231203 |
| Dimensions | |
|---|---|
| Dimension - B Length inch | 1.50 in |
| Dimension - Height fraction | 2-1/2 in |
| Dimension - Height inch | 2.50 in |
| Dimension - Height mm | 63.5 mm |
| Dimension - L Length Overall mm | 40 mm |
| Dimension - Length Overall inch | 1.56 in |
| Dimension - Outside Diameter inch | 0.54 in |
| Dimension - Width fraction | 1-7/8 in |
| Dimension - Width inch | 1.88 in |
| Dimension - Width mm | 48 mm |
| Package Height | |
| Package Length | |
| Package Weight | |
| Package Width |
| Conductor Related | |
|---|---|
| Conductor - Copper Solid Size | 4 AWG |
| Conductor - Copper Solid Size Range | 4 AWG – 3/0 AWG |
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - Copper Str Size Range | 5 AWG – 2/0 AWG |
| Conductor - Copper Tube Std Size | 1/4 IPS IPS |
| Conductor - Copper Tube Std Size Range | 1/4 IPS IPS |
| Conductor - Pipe or Round Tube Size Range | 1/4 in |
| Conductor - Rod Size | .5 in |
| Conductor - Rod Size Range | 1/2 in |
| Conductor Type |
CU C Solid-Size CU C Str-Size CU Tube Std-Size Rod-Size |
| Force Related | |
|---|---|
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
| Logistics | |
|---|---|
| Minimum Pack Quantity | 1 |
